Electric Hybrid Bike
Momentum Lafree E+
SKU2203257255
|
GRIPPY TIRES |
MID-DRIVE MOTOR |
|

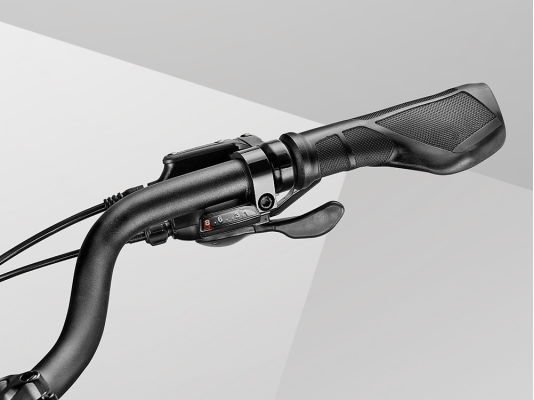

WIDE GEAR RANGE |
REAR RACK BATTERY |
|
CHAINGAURD |
STEP-THROUGH FRAME |
|
INTERGRATED MOUNTS |
INTUITIVE CONTROLS |
|
HYDRUALIC DISC BRAKES |
Motor - Giant SyncDrive Life, 60Nm, 5-mode plus automatic, 300% tunable support, powered by YAMAHA. Pedal assist to 20 mph
Display - *wireless display compatible
Sensors - Giant PedalPlus 4-sensor technology
Battery - EnergyPak 400Wh, 36V, 11.3Ah rechargeable lithium-ion
Sizes - Small, Regular, Large
Colors - Metallic Red, Anthracite
Frame - ALUXX aluminium, double tube low-stepthrough design
Fork - ALUXX-Grade Aluminum, disc
Shock - N/A
Handlebar - Alloy, high rise, 25.4
Stem - Alloy, adjustable quill
Seatpost - Alloy, 30.9
Saddle - Giant Comfort (Cypress/Sedona)
Pedals - Anti-slip platform
Shifters - Shimano M315
Front Derailleur - N/A
Rear Derailleur - Shimano M310 Altus
Brakes - Tektro T275, hydraulic, 160mm
Brake Levers - Tektro T275
Cassette - Shimano HG200, 8-speed, 12x32
Chain - KMC X8
Crankset - forged alloy, 38t with chainguard
Bottom Bracket - N/A
Rims - Double-wall aluminum
Hubs - Giant Sport Tracker
Spokes - Stainless
Tires - CST Metropolitan Palm Bay, 26x2.35
Lighting - Axa BlueLine 30Lux Steady E6 frontAxa BlueLine Steady E6 rear
Extras - Giant EnergyPak 3A fast charger, alloy rear rack, fenders, direct-mount kickstand
Weight - The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
All specifications and prices listed are subject to change without notice.
SIZING GUIDE AND GEOMETRY
|
Frame Size |
Rider Height | Standover Height |
|---|---|---|
| S | 5'3" to 5'7" | 19.3" |
| M | 5'7" to 5'11" | 18.9" |
| L | 5'11" to 6'3" | 18.5" |
This bike diagram with measurements referenced in table that follows:
| S | M | L | ||
| A | Seat Tube Length (inch) | 15 | 18 | 20 |
| B | Seat Tube Angle | 69.0° | 69.0° | 69.0° |
| C | Top Tube Length (inch) | 22 | 23 | 24 |
|
D |
Head Tube Length (inch) | 7.1 | 7.7 | 8.5 |
|
E |
Head Tube Angle | 69.0° | 69.0° | 69.0° |
|
F |
Fork Rake (inch) | 1.7 | 1.7 | 1.7 |
|
G |
Trail (inch) | N/A | N/A | N/A |
|
H |
Wheelbase (inch) |
41.7 | 42.6 | 43.6 |
|
I |
Chain Stay Length (inch) | 18.5 | 18.5 | 18.5 |
|
J |
Bottom Bracket Drop (inch) | 1.8 | 1.8 | 1.8 |
|
K |
Stack (inch) | 23.9 | 24.4 | 25.2 |
|
L |
Reach (inch) | 12.9 |
13.6 | 14.3 |
|
M |
Stand Over Height (inch) | 25.4 | 28.3 | 30.1 |
| N | Handlebar Width (inch) | 27.2 | 27.2 | 27.2 |
|
O |
Stem Length (inch) | 3.3 | 3.3 | 3.3 |
|
P |
Crank Length (inch | N/A | N/A | N/A |
|
Q |
Wheel Size | 700c | 700c | 700c |
