Electric Road Bike
Trek Domane+ AL 5
$3,499.99
SKU5270358

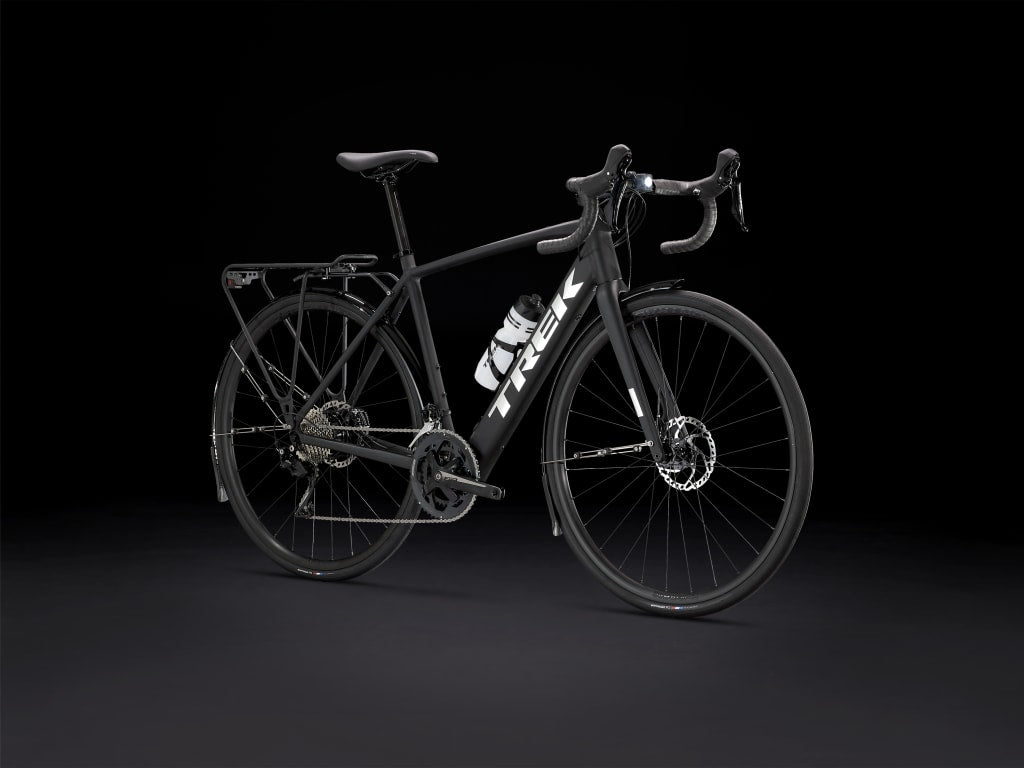

Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain, or push yourself harder on training rides.
OVERVIEW
It's right for you if...
You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.
The tech you get
A lightweight aluminum frame and fork, a natural-feeling HyDrive hub motor (250W, 40Nm) that assists up to 20 mph with a 250Wh battery for a range of up to 55 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x11 drivetrain, tubeless ready wheels, and vibration-absorbing Elite IsoZone handlebars.
The final word
Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.
SPECS
|
E-system is certified by an accredited testing laboratory as compliant with UL 2849.
|
|
|
*Please note - spec applies to all sizes unless listed separately
|
|
| Frameset | |
| Frame |
100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
|
| Fork |
Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
|
| Frame fit | Endurance |
| Weight | |
| Weight |
56 - 14.06 kg / 31 lbs
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
|
| E-system | |

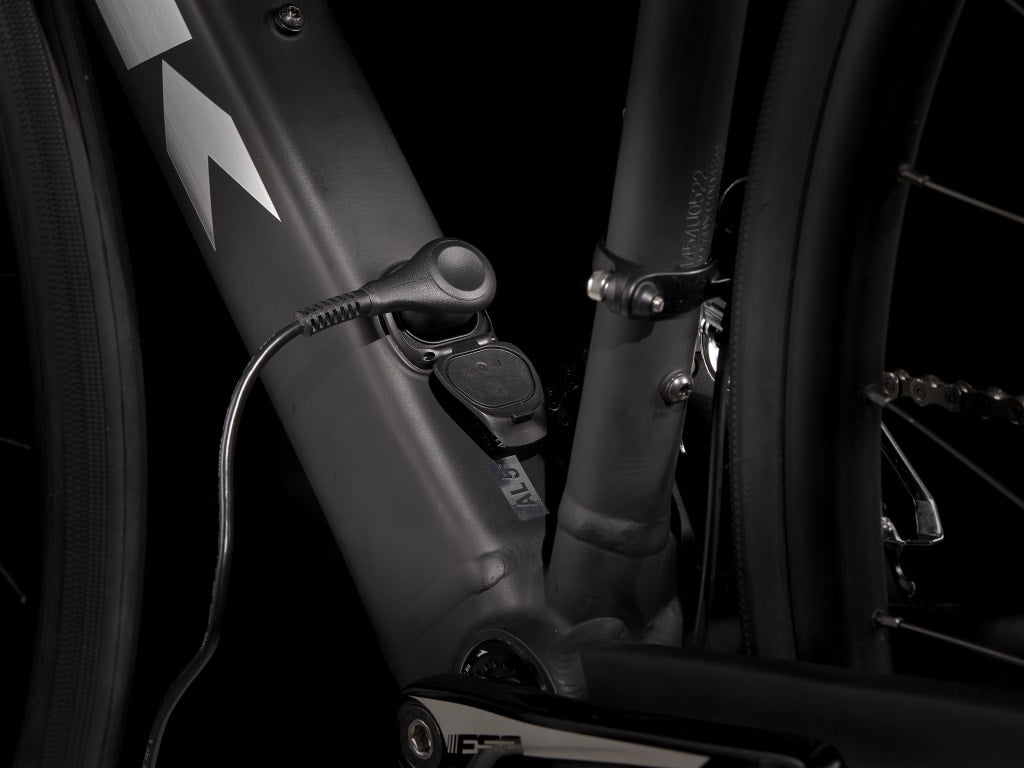

| Battery |
250Wh, integrated in down tube
|
| Charger |
2A, 42V output, 100V-240V AC input
|

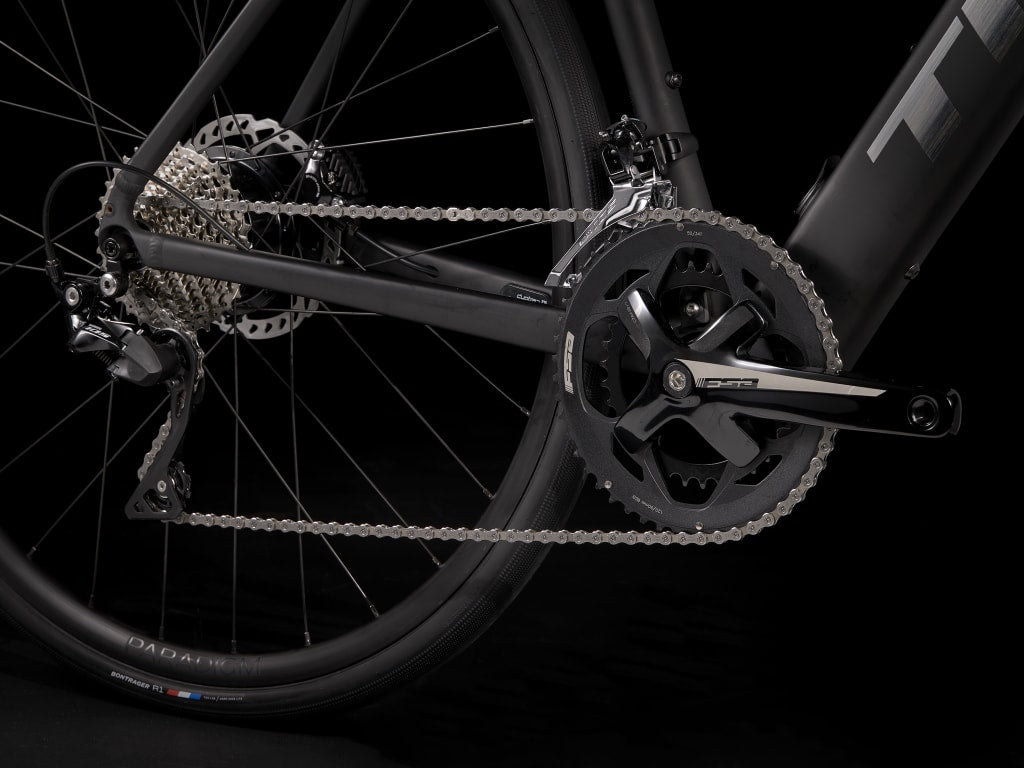

| Drivetrain | |
|
*Shifter
|
Size: 49, 52
Shimano 105 R7025, short-reach lever, 11 speed |
|
Size: 54, 56, 58, 61
Shimano 105 R7020, 11 speed |
|
| Front derailleur |
Shimano 105 R7000, 31.8mm clamp
|
| Rear derailleur |
Shimano 105 R7000, long cage, 34T max cog
|
|
*Crank
|
Size: 49
FSA Vero Pro, 50/34, 165mm |
|
Size: 52
FSA Vero Pro, 50/34, 170mm |
|
|
Size: 54, 56
FSA Vero Pro, 50/34, 172.5mm |
|
|
Size: 58, 61
FSA Vero Pro, 50/34, 175mm |
|
| Bottom bracket |
Torque sensor, threaded, 110mm spindle
|
| Cassette |
Shimano 105 HG700-11, 11-34, 11 speed
|
| Chain |
Shimano HG601, 11 speed
|
| Max chainring size | 2x: 50/34 |
| Wheels | |
| Hub front |
Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
|
| Skewer front |
Bontrager Switch thru axle, removable lever
|

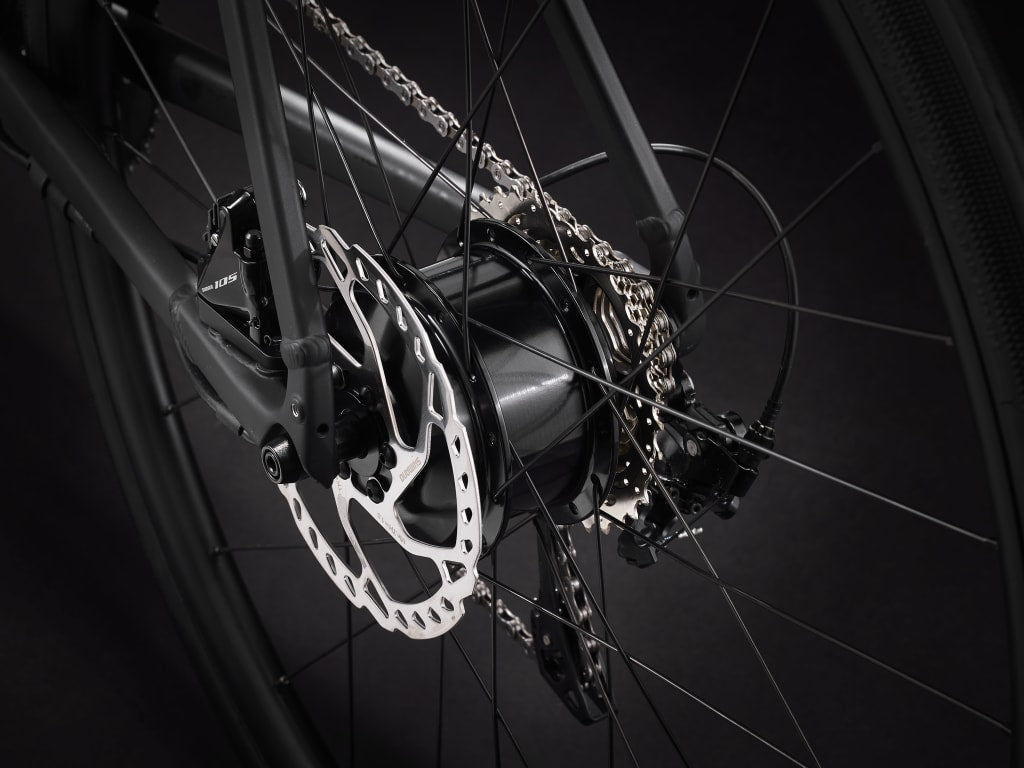

| Hub rear |
Hyena hub drive motor, 40Nm, 250W
|
| Rim |
Bontrager Paradigm, Tubeless Ready, 28-hole, 21mm width, Presta valve
|
| Tire |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
|
| Max tire size |
38mm without fenders, 32mm with fenders
|
| Components | |
|
*Saddle
|
Size: 49, 52
Bontrager Verse Short Comp, steel rails, 155mm width |
|
Size: 54, 56, 58, 61
Bontrager Verse Short Comp, steel rails, 145mm width |
|
| Seatpost |
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
|
|

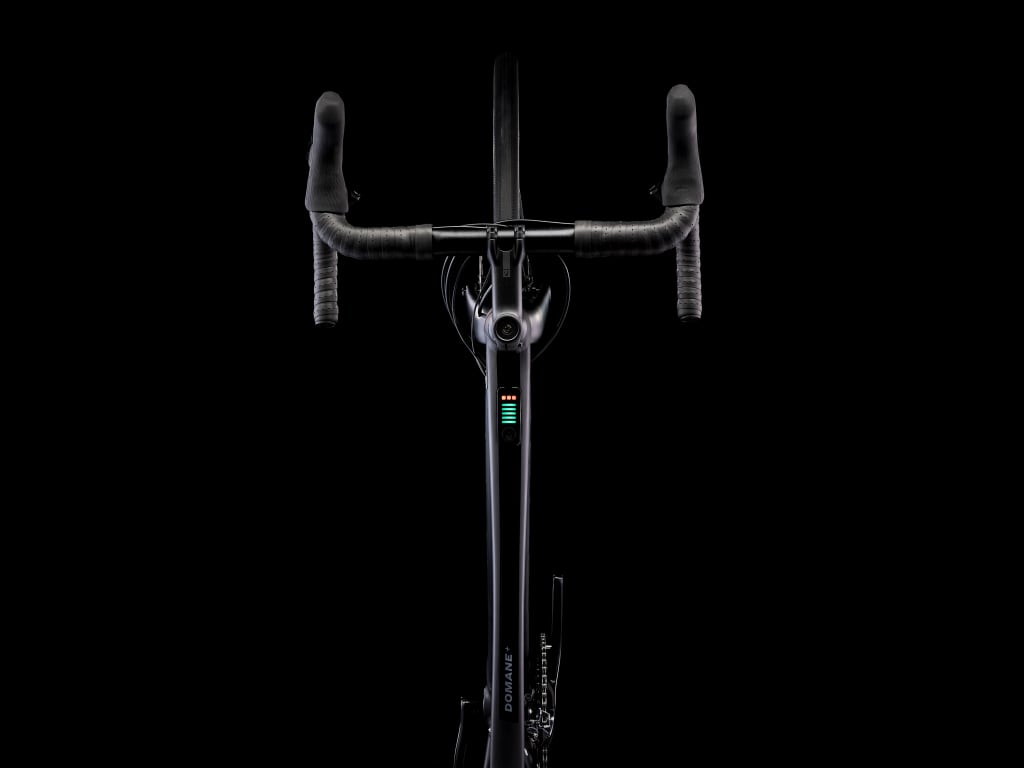

*Handlebar
|
Size: 49
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width |
|
Size: 52
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width |
|
|
Size: 54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width |
|
|
Size: 58, 61
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width |
|
| Handlebar tape |
Bontrager Supertack Perf tape
|
|
*Stem
|
Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
|
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
|
|
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
|
| Headset |
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
|

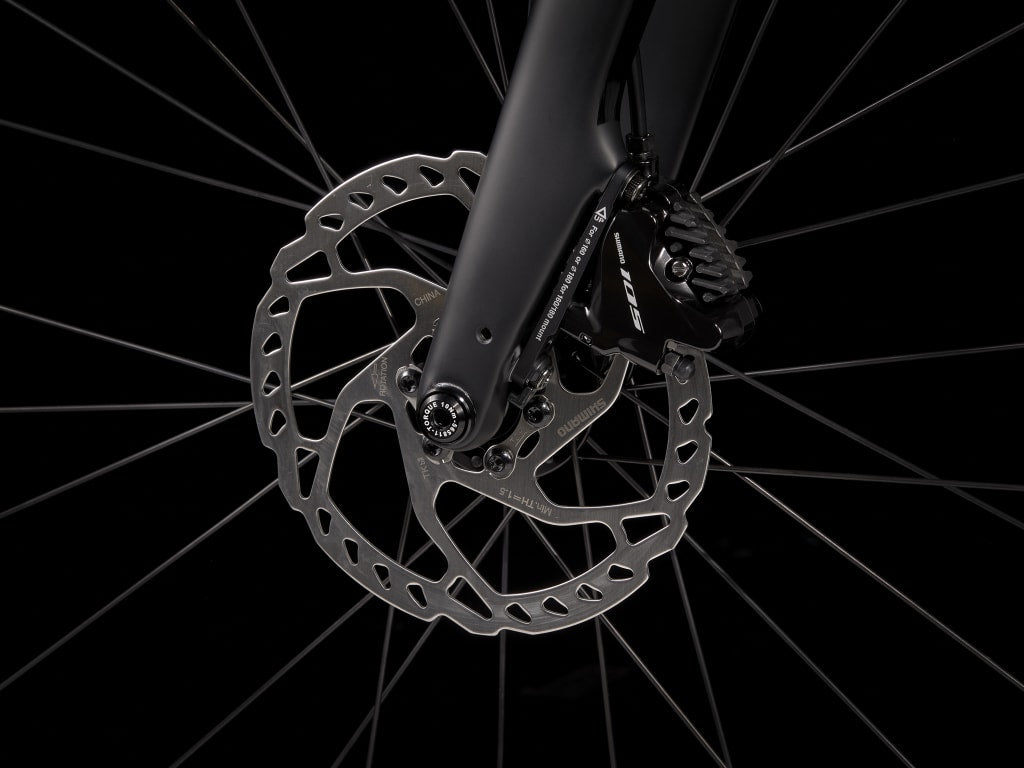

| Brake |
Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
|
| Brake rotor |
Shimano RT66, 6-bolt, 160mm
|
| Rotor size |
Max brake rotor sizes: 160mm front & rear
|
|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
|
|
|
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
|
SIZING GUIDE AND GEOMETRY
| Size | Rider Height | Inseam |
|---|---|---|
| 49 |
156 - 163 cm 5'1" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 61 |
185 - 191 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
All measurements provided in cm unless otherwise noted.
| Frame size number | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 44 | 47.5 | 50 | 52.5 | 54.8 | 56.7 |
| B — Seat tube angle | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.7° |
| C — Head tube length | 11 | 13 | 14.5 | 16 | 18 | 22 |
| D — Head angle | 70.8° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° |
| E — Effective top tube | 51.7 | 53 | 54.2 | 55.4 | 56.7 | 58.6 |
| G — Bottom bracket drop | 8 | 8 | 8 | 7.8 | 7.8 | 7.8 |
| H — Chainstay length | 43 | 43 | 43 | 43 | 43 | 43 |
| I — Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| J — Trail | 6.7 | 6.4 | 6.4 | 6.5 | 6.5 | 6.4 |
| K — Wheelbase | 100.7 | 101.3 | 102.1 | 101.8 | 102.7 | 104.3 |
| L — Standover | 72.7 | 75.3 | 77.2 | 79.4 | 80.9 | 82.5 |
| M — Frame reach | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.5 |
| N — Frame stack | 54 | 56.1 | 57.5 | 59.1 | 61.1 | 64.6 |
| Stem length | 80 | 90 | 90 | 100 | 100 | 110 |
