Hybrid Bike
Trek Dual Sport 2 Gen 5
SKU5275846
Dual Sport 2 is a capable and confident hybrid bike that's fun to ride from roads to rail trails and beyond. It has a light frame, a sturdy drivetrain with 18 speeds, plus, powerful hydraulic disc brakes for serious stopping power. Wide wheels and lofty tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, light gravel trails, bike paths, and more.
OVERVIEW
It's right for you if...
You enjoy riding your bike for fun, fitness, commutes, and errands. You want a light, capable hybrid bike that will stand up to your every adventure whim, with features that keep you comfortable over a variety of terrain.
The tech you get
A lightweight aluminum frame with sleek internal cable routing and rack and fender mounts, wide 650b wheels and wide 50c tires for capability and comfort on varied terrain, a reliable 2x9 Shimano drivetrain with a wide range of gearing so you're never pedaling too hard or too soft, comfortable ergonomic grips, and powerful hydraulic disc brakes for all-weather stopping power.
The final word
Dual Sport 2 is an all-terrain hybrid bike that’s built for adventure on or off the road. Whether you want to explore gravel paths or commute to work, this bike will give you the capability and confidence to do it!
SPECS
|
*Please note - spec applies to all sizes unless listed separately
|
|
| Frameset | |
| Frame |
Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
|
| Fork |

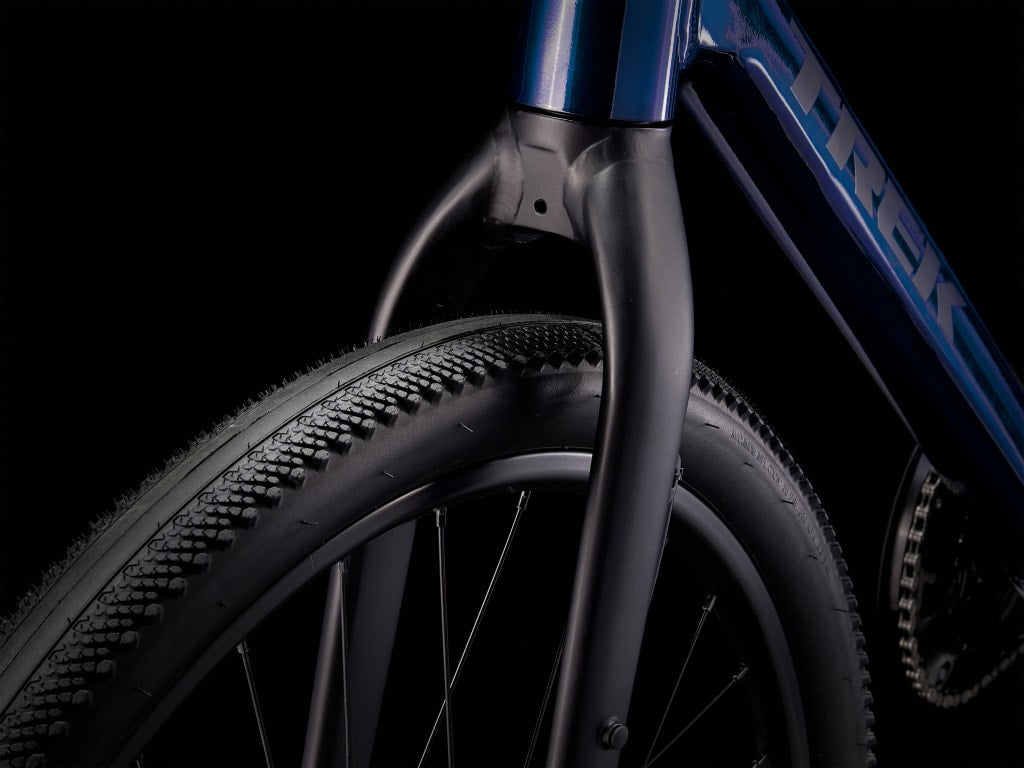

Dual Sport alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
|
| Wheels | |
| Hub front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR
|
| Skewer front |
139x5mm bolt-on
|
| Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
|
| Skewer rear | 152x5mm QR |
| Rim |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
|
| Tire |
Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm
|
| Max tire size | 27.5x2.00" |
| Drivetrain | |
|
*Shifter
|
Size: S, M, L, XL
Shimano Altus M2010, 9 speed |
|
Size: S, M, L, XL
Shimano Altus M2010, 2 speed |
|

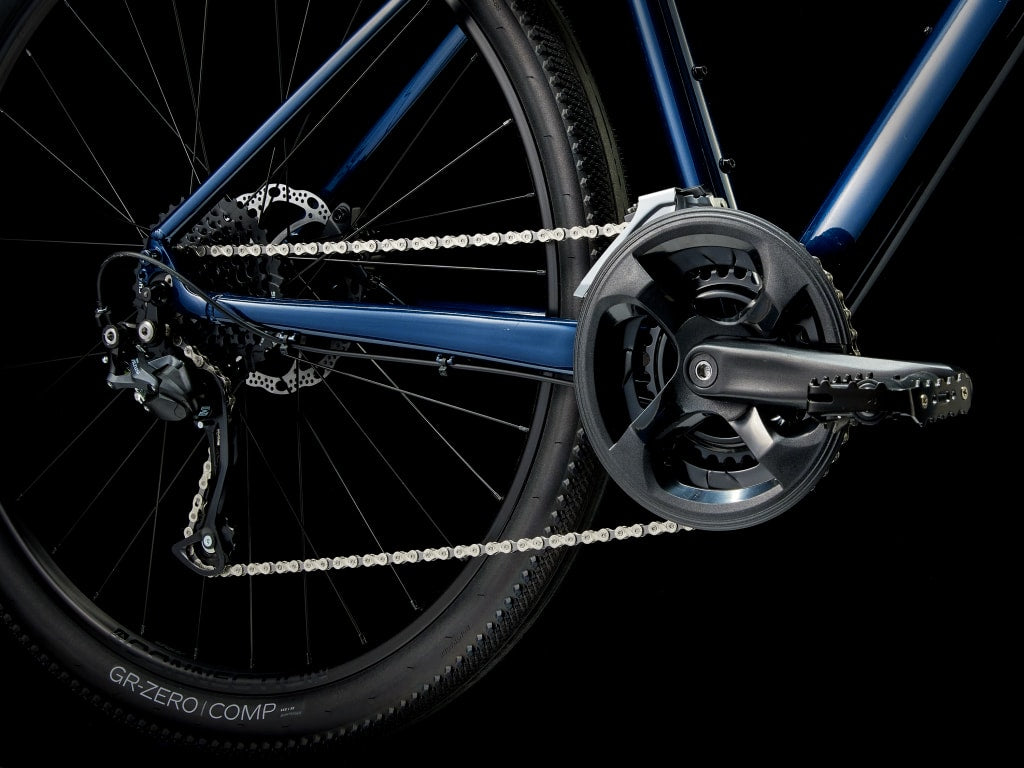

| Front derailleur |
Shimano Acera T3000, 34.9mm clamp, top swing, dual pull
|
| Rear derailleur |
Shimano Altus M2000, long cage
|
| Crank |
Forged alloy, 46/30, chainguard, 170mm length
|
| Bottom bracket |
Sealed cartridge, 68mm
|
| Cassette |
Shimano HG200, 11-36, 9 speed
|
| Chain | KMC X9 |
| Pedal |
Wellgo nylon body, alloy cage
|
| Max chainring size |
1x: 42T, 2x/3x: 48T
|
| Components | |

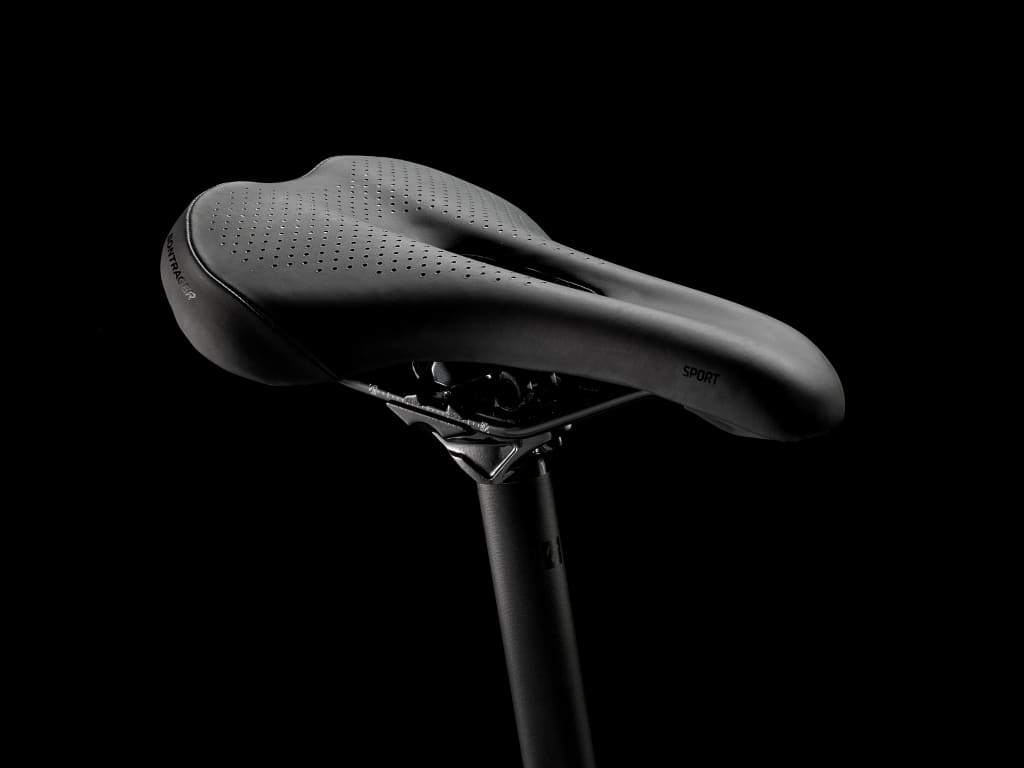

| Saddle | Bontrager Sport |
| Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
|
|

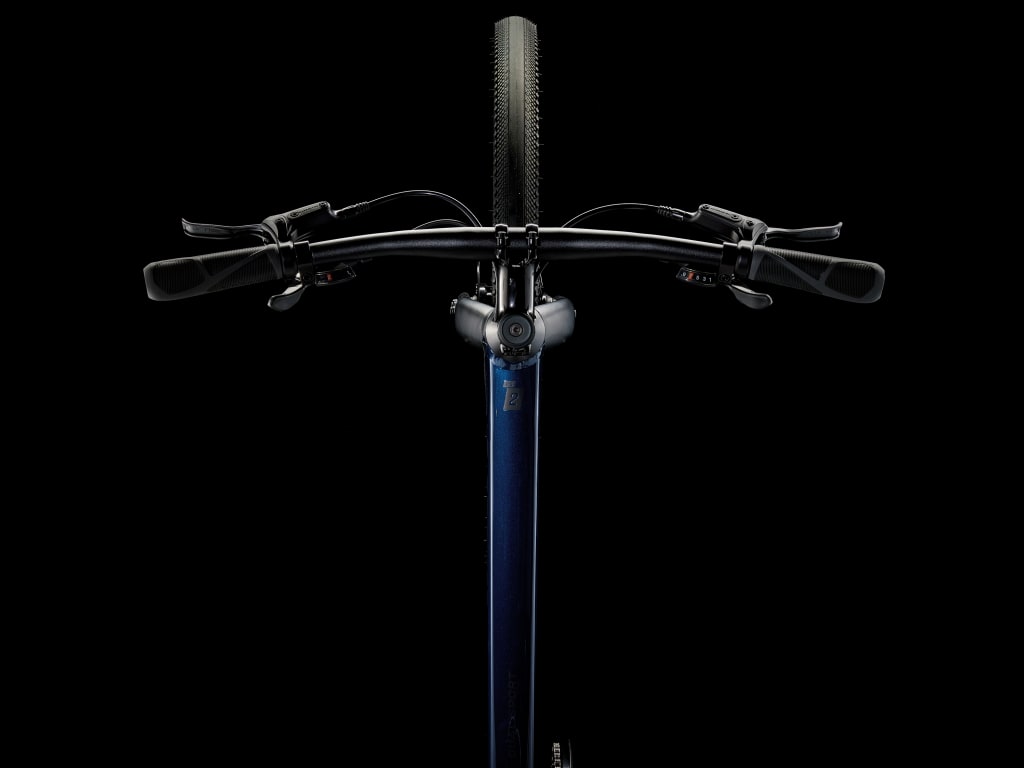

*Handlebar
|
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 600mm width |
|
Size: M
Bontrager alloy, 31.8mm, 15mm rise, 660mm width |
|
|
Size: L, XL
Bontrager alloy, 31.8mm, 15mm rise, 690mm width |
|
| Grips |
Bontrager Satellite
|
|

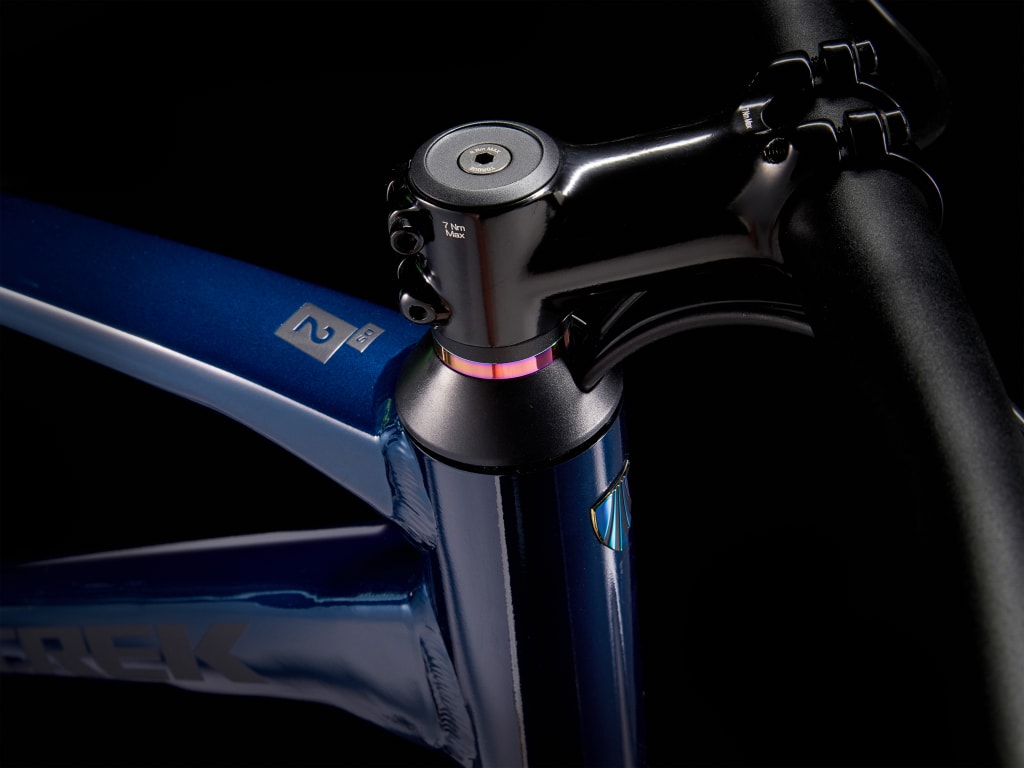

*Stem
|
Size: S
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
Size: M, L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
|
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Brake Set |
C-Star BH-RS925T hydraulic disc, 160mm rotor
|
| Rotor size |
Max brake rotor sizes: 160mm front & rear
|
| Weight | |
| Weight |
M - 12.79 kg / 28.2 lbs
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|
|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
|
|
|
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
|
SIZING GUIDE AND GEOMETRY
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
147 - 155 cm 4'10" - 5'1" |
69 - 73 cm 27" - 29" |
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
All measurements provided in cm unless otherwise noted.
| Frame size letter | S | M | L | XL |
| Wheel size | 27.5" | 27.5" | 27.5" | 27.5" |
| A — Seat tube | 37.5 | 42 | 46.5 | 52 |
| B — Seat tube angle | 73.8° | 73.3° | 72.8° | 71.8° |
| C — Head tube length | 14 | 16.5 | 19 | 21.5 |
| D — Head angle | 69.8° | 70.3° | 70.8° | 71.8° |
| E — Effective top tube | 54.5 | 56.5 | 58.5 | 61.5 |
| F — Bottom bracket height | 28.9 | 28.9 | 28.9 | 28.9 |
| G — Bottom bracket drop | 6 | 6 | 6 | 6 |
| H — Chainstay length | 44.7 | 44.7 | 44.7 | 44.7 |
| I — Offset | 3.9 | 3.9 | 3.9 | 3.9 |
| J — Trail | 8.7 | 8.3 | 8 | 7.4 |
| K — Wheelbase | 105.2 | 106.3 | 107.2 | 107.9 |
| L — Standover | 72.3 | 76.1 | 80 | 84.3 |
| M — Frame reach | 37.8 | 38.5 | 39.1 | 40.1 |
| N — Frame stack | 57.3 | 59.8 | 62.4 | 65.2 |
