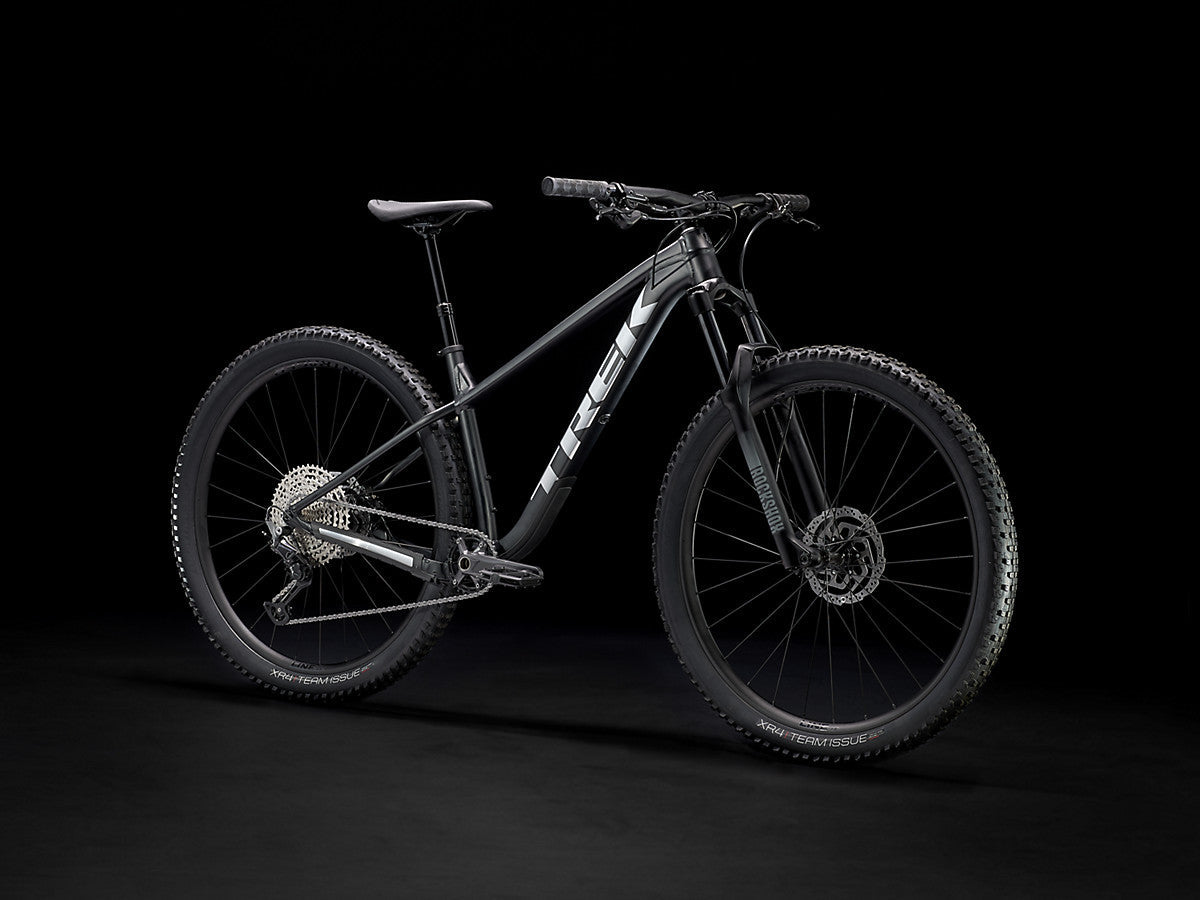

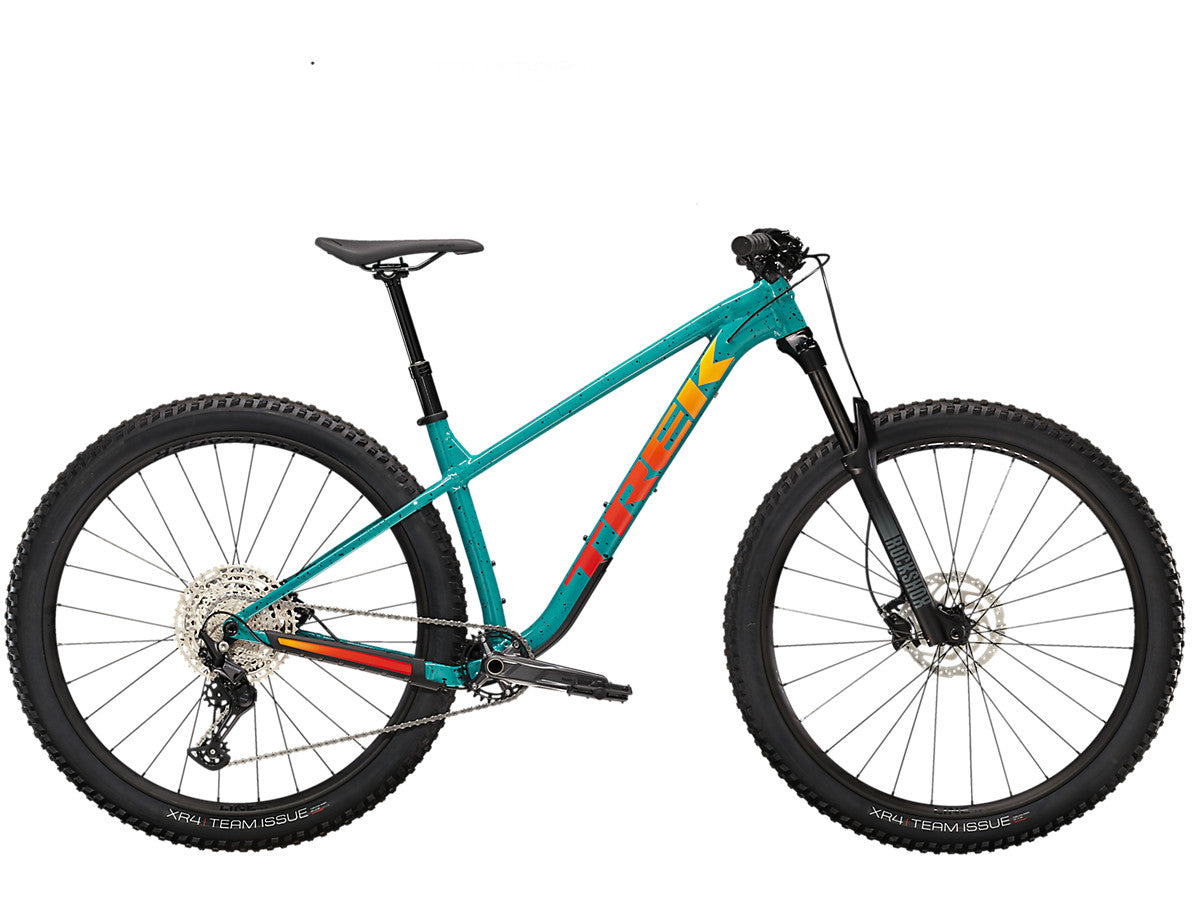

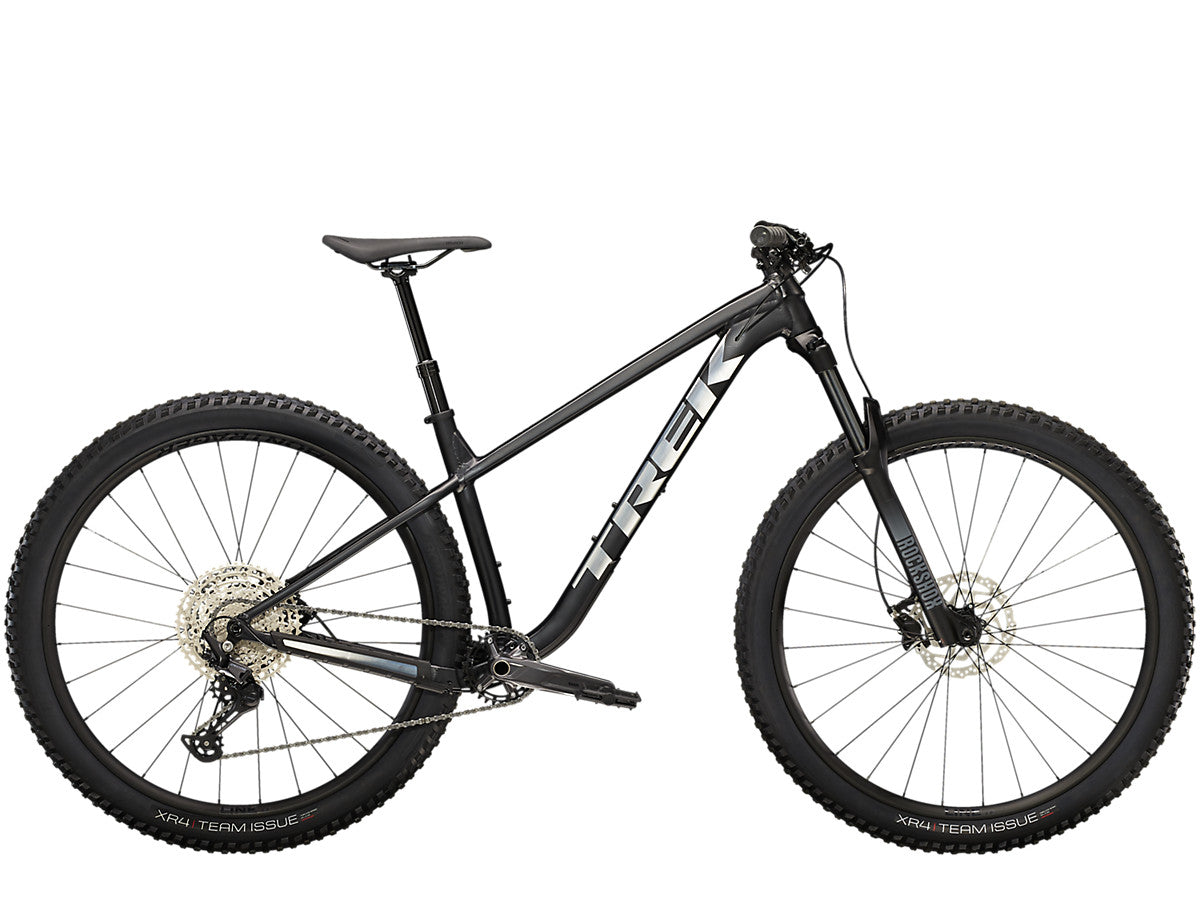

Roscoe 7 is a hardtail for riders who wanna have a blast ripping up the trail. A plush 140mm suspension fork, 29er wheels, and a wide-range drivetrain with plenty of gears make this bike great for new riders yet playful enough to make even the most experienced shredders smile.
Sizes - XS, S, M, M/L, L, XL
Color - Matte Trek Black, Teal/Trek Black, Miami Green/Trek Black
Frame - Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12mm thru axle
Fork - RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, (XS) 37mm - (M-XL) 42mm offset,, Boost110, Maxle Stealth, 140mm travel (Max compatible fork travel - 150mm)
Shock - N/A
Handlebar - Bontrager alloy, 31.8mm, 15mm rise, (XS, S) 750mm width - (M-XL) 780mm width
Stem - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, (XS, S) 35mm length - (M-XL) 50mm length (depending on frame size)
Seatpost - TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm or 470 length (Depending on frame size)
Saddle - Bontrager Arvada, steel rails, 138mm width
Pedals - VP-536 nylon platform
Shifters - SRAM NX Eagle, 12 speed
Front Derailleur - N/A
Rear Derailleur - SRAM GX Eagle
Brakes - Shimano MT200 hydraulic disc
Brake Rotor - Shimano RT10, centerlock, 180mm
Cassette - Shimano Deore M6100, 10-51, 12 speed
Chain - Shimano Deore M6100, 12 speed
Crankset - Shimano MT511, 30T steel ring, 52mm chainline, 170mm length - 175mm length (depending on frame size)
Bottom Bracket - Shimano SM-BB52, 73mm, threaded external bearing
Rims - Bontrager Line Comp 30, Tubeless Ready, 28-hole, presta valve
Hubs - [F] Shimano MT400, centerlock, Boost110, 15mm thru axle, [R] Shimano MT510, centerlock, Boost148, 12mm thru axle
Spokes - N/A
Tires - Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60'' ( Only in the XS: 27.5x6.20")
Weight - M - 30.84 lbs / 13.99 kg (with TLR sealant, no tubes)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Prices shown are manufacturer's suggested retail prices.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Color - Matte Trek Black, Teal/Trek Black, Miami Green/Trek Black
Frame - Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12mm thru axle
Fork - RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, (XS) 37mm - (M-XL) 42mm offset,, Boost110, Maxle Stealth, 140mm travel (Max compatible fork travel - 150mm)
Shock - N/A
Handlebar - Bontrager alloy, 31.8mm, 15mm rise, (XS, S) 750mm width - (M-XL) 780mm width
Stem - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, (XS, S) 35mm length - (M-XL) 50mm length (depending on frame size)
Seatpost - TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm or 470 length (Depending on frame size)
Saddle - Bontrager Arvada, steel rails, 138mm width
Pedals - VP-536 nylon platform
Shifters - SRAM NX Eagle, 12 speed
Front Derailleur - N/A
Rear Derailleur - SRAM GX Eagle
Brakes - Shimano MT200 hydraulic disc
Brake Rotor - Shimano RT10, centerlock, 180mm
Cassette - Shimano Deore M6100, 10-51, 12 speed
Chain - Shimano Deore M6100, 12 speed
Crankset - Shimano MT511, 30T steel ring, 52mm chainline, 170mm length - 175mm length (depending on frame size)
Bottom Bracket - Shimano SM-BB52, 73mm, threaded external bearing
Rims - Bontrager Line Comp 30, Tubeless Ready, 28-hole, presta valve
Hubs - [F] Shimano MT400, centerlock, Boost110, 15mm thru axle, [R] Shimano MT510, centerlock, Boost148, 12mm thru axle
Spokes - N/A
Tires - Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60'' ( Only in the XS: 27.5x6.20")
Weight - M - 30.84 lbs / 13.99 kg (with TLR sealant, no tubes)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Prices shown are manufacturer's suggested retail prices.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Sizing & Geometry
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.
| XS | S | M | M/L | L | XL | |
| Rider Height | 4'5.9"-5'1.0" | 5'0.2"-5'5.6" | 5'3.4"-5'7.7" | 5'5.2"-5'10.5" | 5'9.7"-6'2.0" | 6'1.2"-6'5.2" |
| Inseam | 25.2"-28.7" | 28.3"-31.1" | 29.9"-31.9" | 30.3"-33.1" | 32.7"-34.6" | 34.3"-36.2" |
All measurements provided in cm unless otherwise noted.
| Frame Size Number | XS | S | M | M/L | L | XL |
|
Wheel Size |
27.5" | 29" | 29" | 29" | 29" | 29" |
|
A - Seat Tube |
34.0 | 36.0 | 42.0 | 43.5 | 45.0 | 50.0 |
| B - Seat Tube Angle | 73.1° | 73.1° | 73.1° | 73.1° | 73.1° | 73.1° |
| C - Head Tube Length | 9.0 | 9.0 | 10.0 | 10.5 | 11.0 | 13.5 |
| D - Head Angle | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° |
| E - Effective Top Tube | 55.2 | 58.6 | 61.4 | 63.0 | 64.6 | 67.7 |
| F - Bottom Bracket Height | 31.85 | 32.15 | 32.15 | 32.15 | 32.15 | 32.15 |
| G - Bottom Bracket Drop | 4.5 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 |
| H - Chainstay Length | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 |
| I - Offset | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| J - Trail | 12.2 | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 |
| K - Wheelbase | 112.0 | 115.1 | 118.1 | 119.8 | 121.5 | 125.0 |
| L - Standover | 72.9 | 74.1 | 74.8 | 74.2 | 75.5 | 76.5 |
| M - Frame Reach | 39.0 | 41.5 | 44.0 | 45.5 | 41.1 | 49.5 |
| N - Frame Stack | 59.1 | 62.6 | 63.5 | 63.9 | 60.9 | 66.6 |
