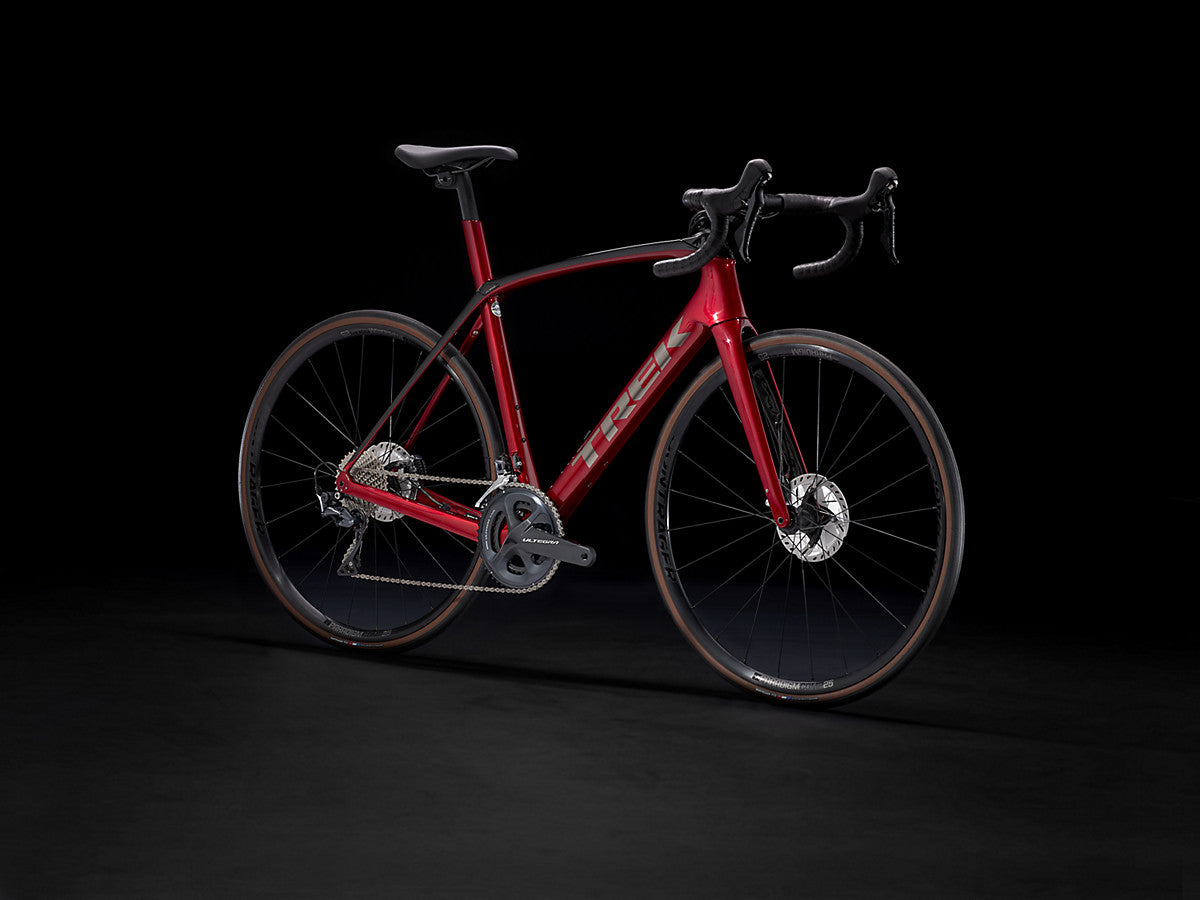

Domane SL 6 is a performance road bike that's both fast and comfortable. It has all the road-smoothing advantages of a lightweight OCLV Carbon frame with Front and Rear IsoSpeed, a full Shimano Ultegra drivetrain, high-quality wheels, and hydraulic disc brakes for confidence and braking power in any conditions. Plus, it has an easy-access storage compartment for stowing ride essentials.
Color - Crimson/Trek Black, Satin Dark Aquatic/Satin Trek Black

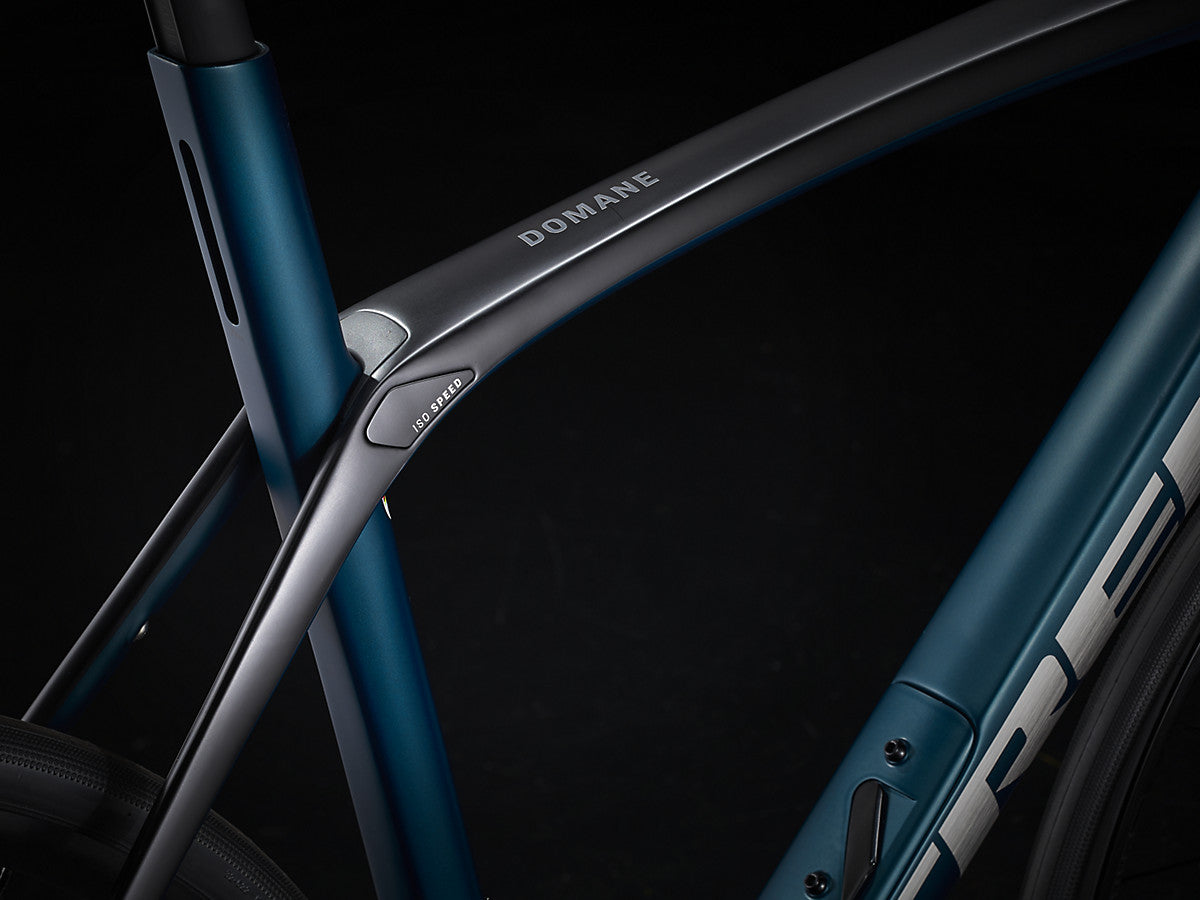

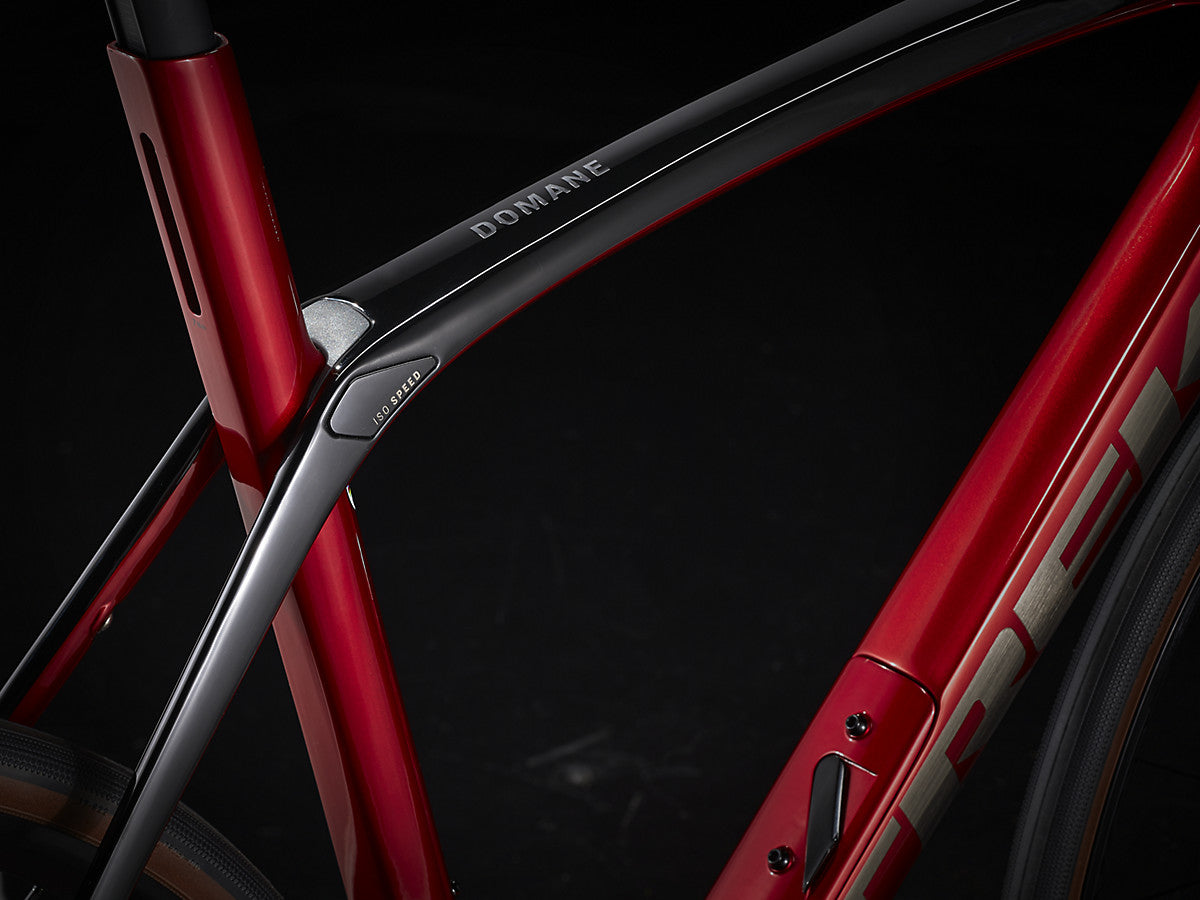

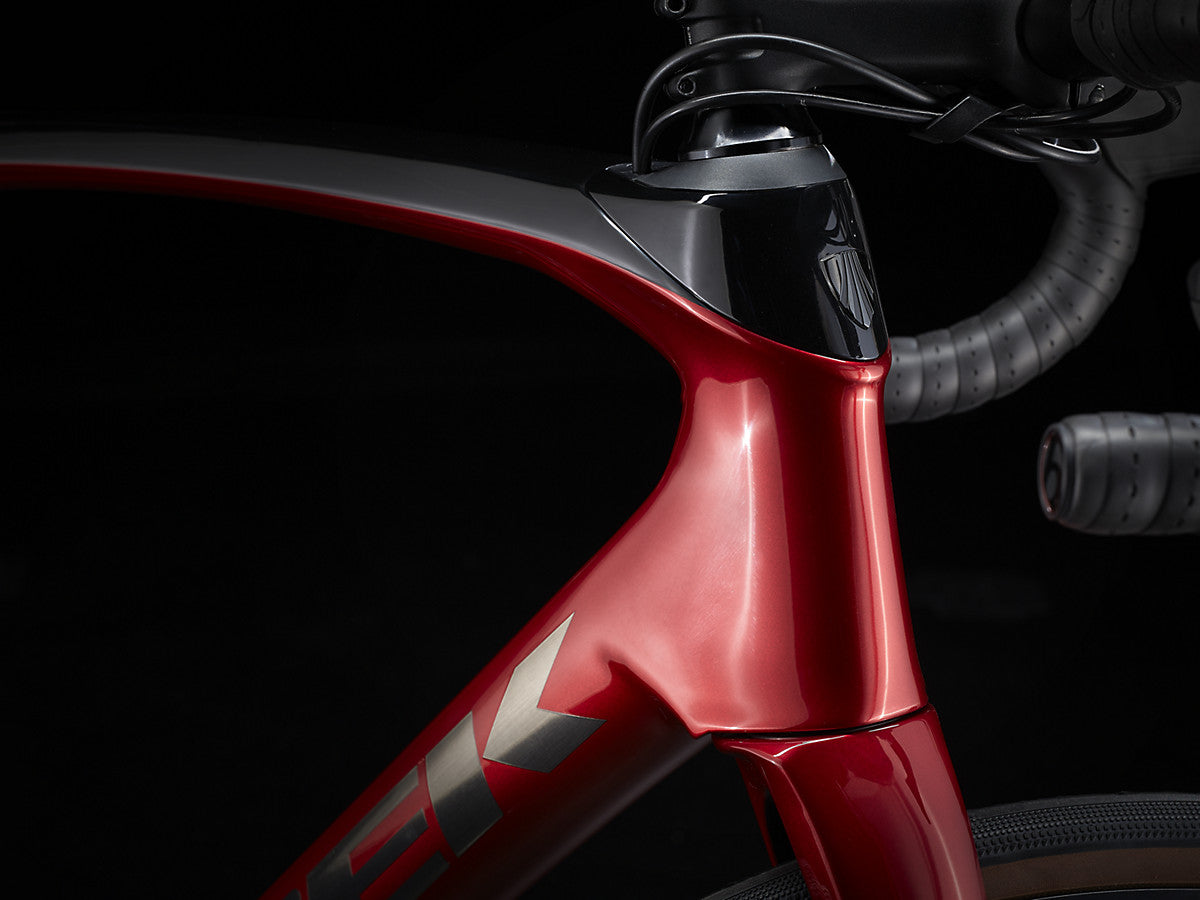

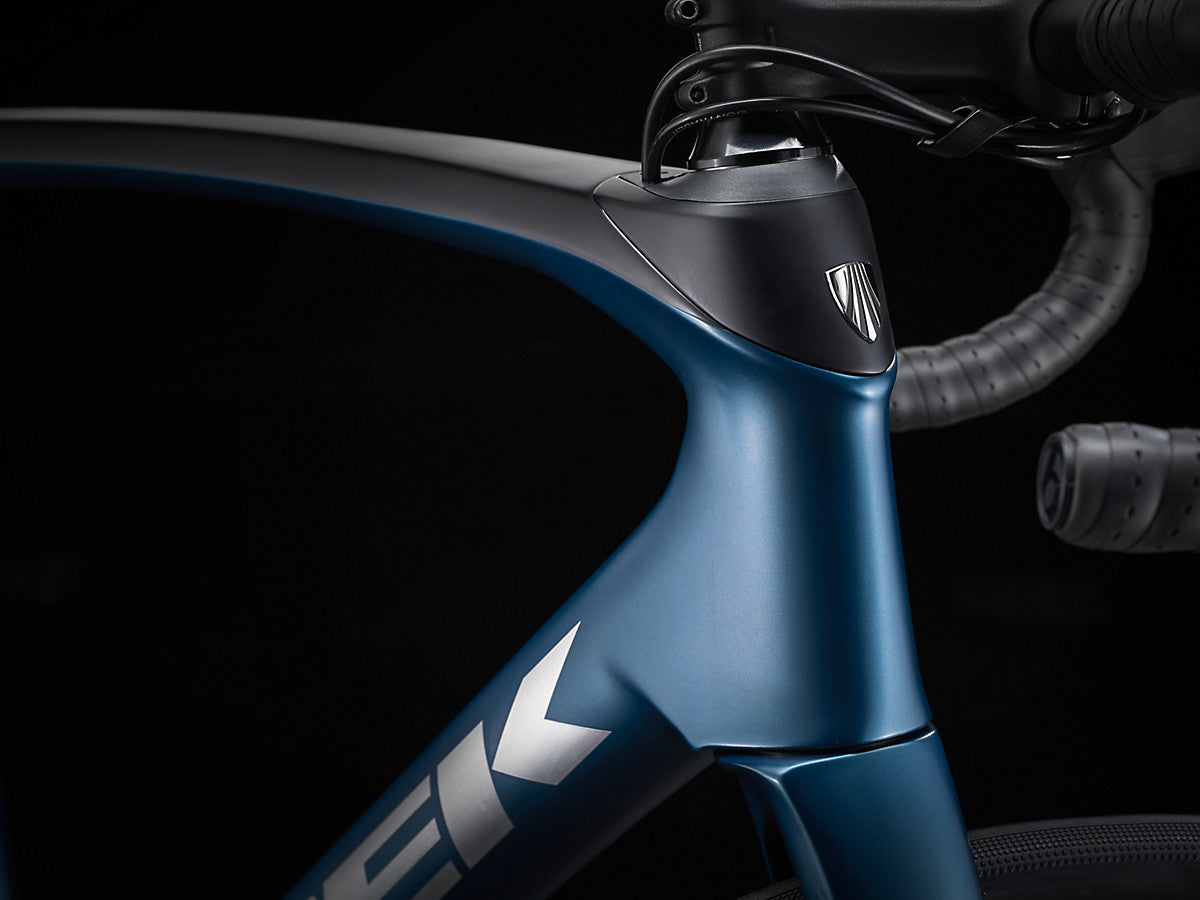

Frame - 500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 142x12mm thru axle
Fork - Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Shock - N/A

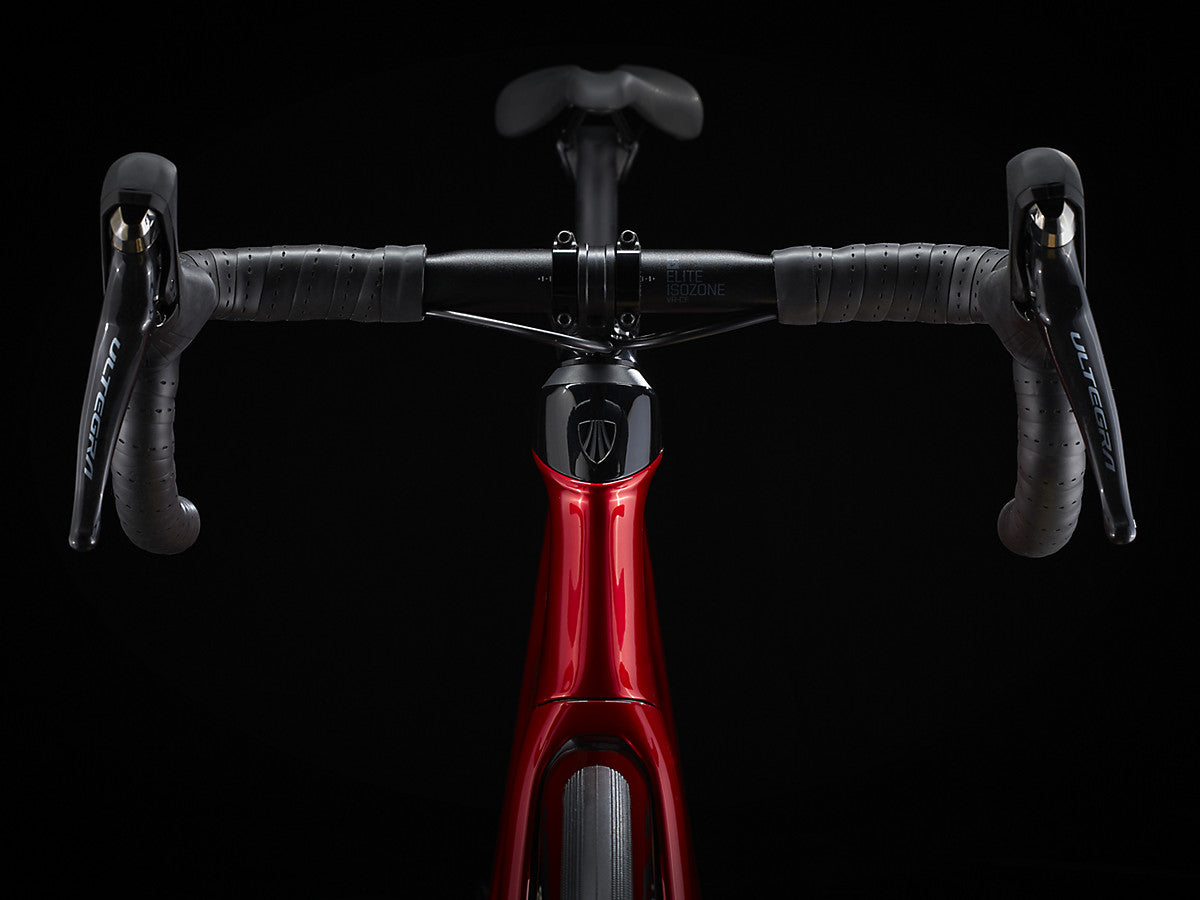

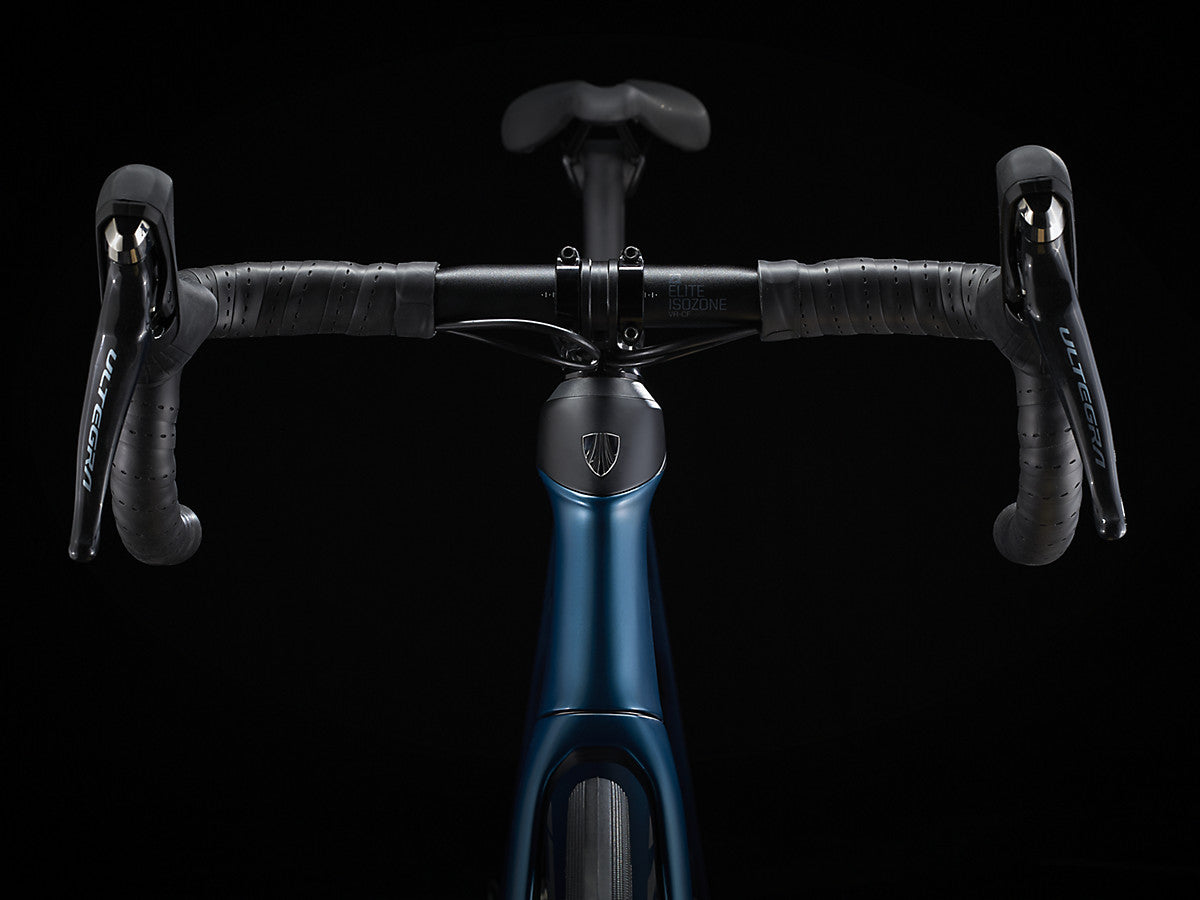

Handlebar - Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width - 44cm width (depending on frame size)
Stem - Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length-110mm length (depending on frame size)

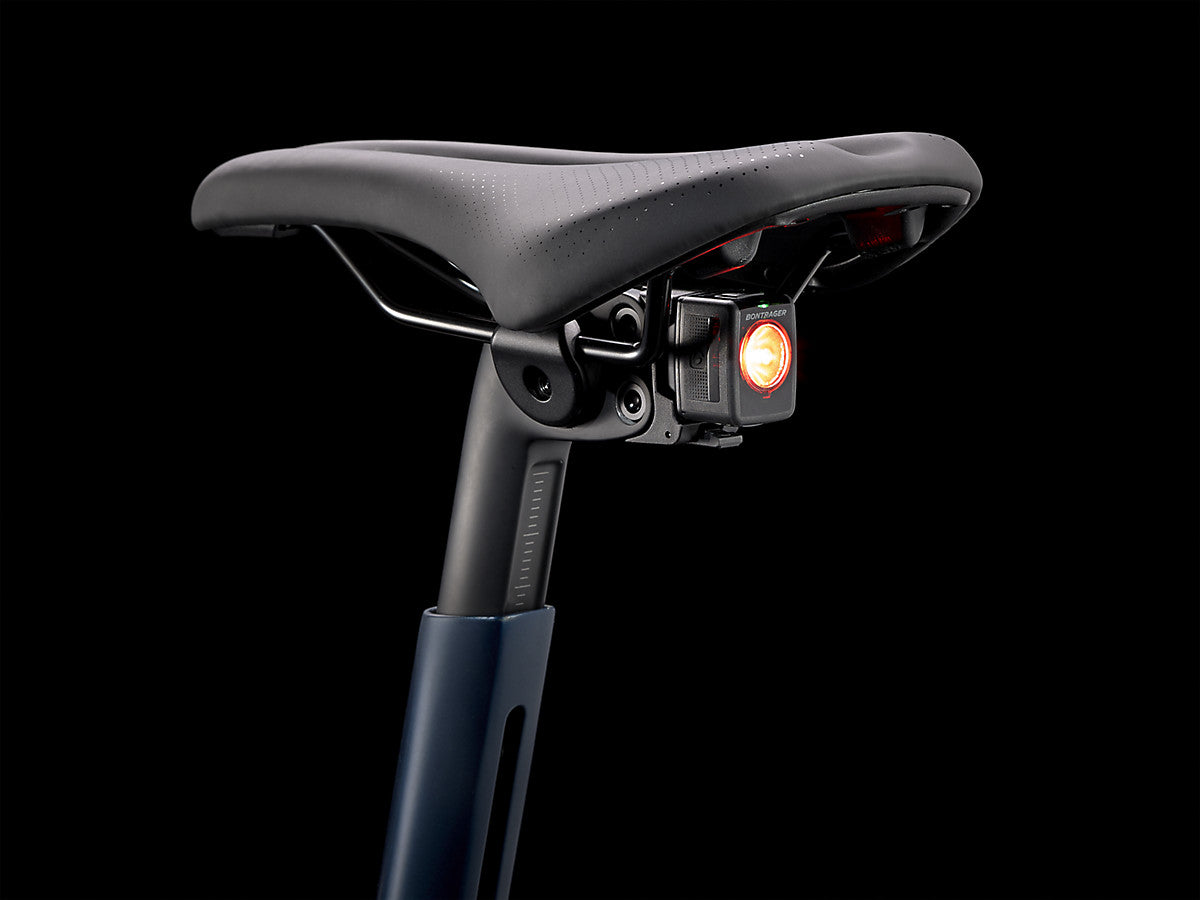

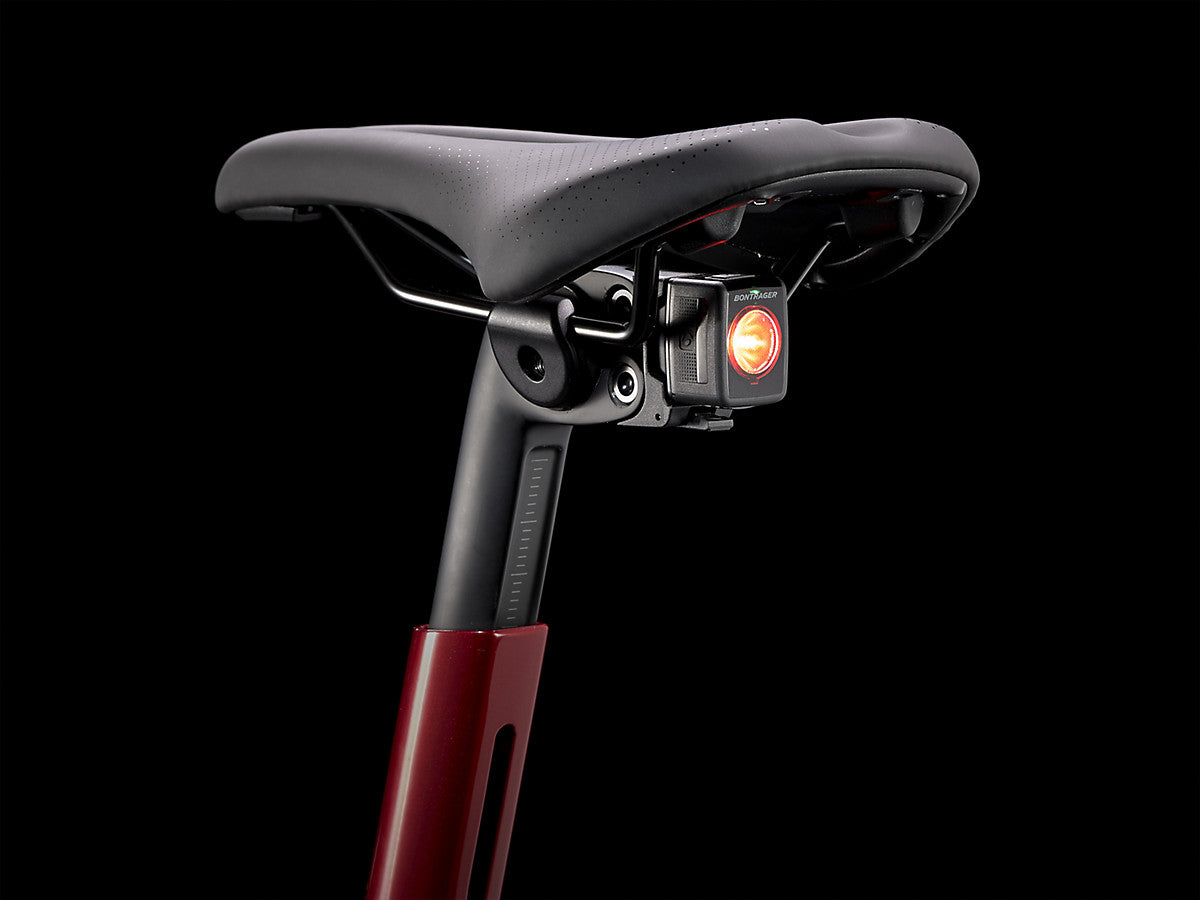

Seatpost - Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short length and tall length (depending on frame size)
Saddle - Bontrager P3 Verse Comp, steel rails, 155mm-145mm width (depending on frame size)
Pedals - N/A
Shifters - Shimano Ultegra R8020, 11-speed (short-reach lever on 47, 50, 52)
Front Derailleur - Shimano Ultegra R8000, braze-on
Rear Derailleur - Shimano Ultegra R8000, long cage, 34T max cog

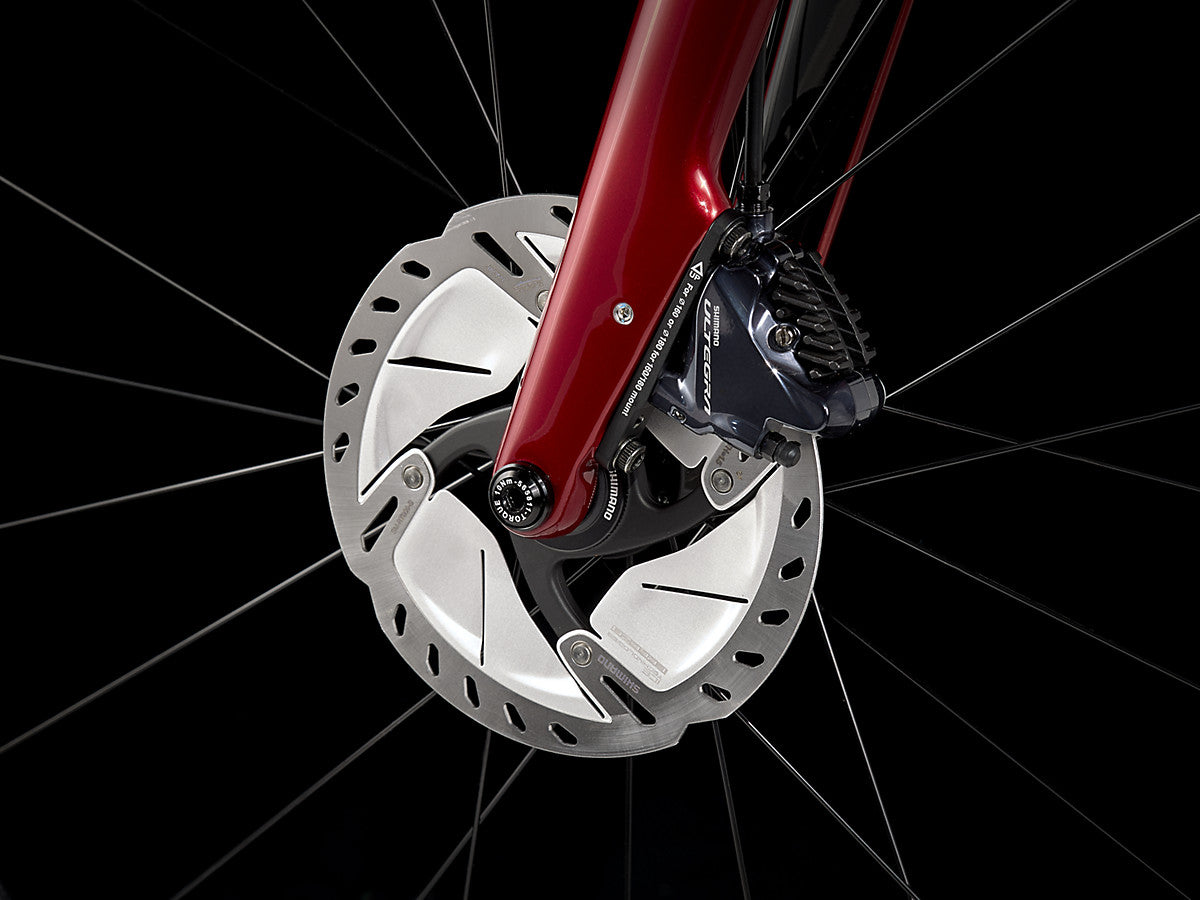

Brakes - Shimano Ultegra R8020

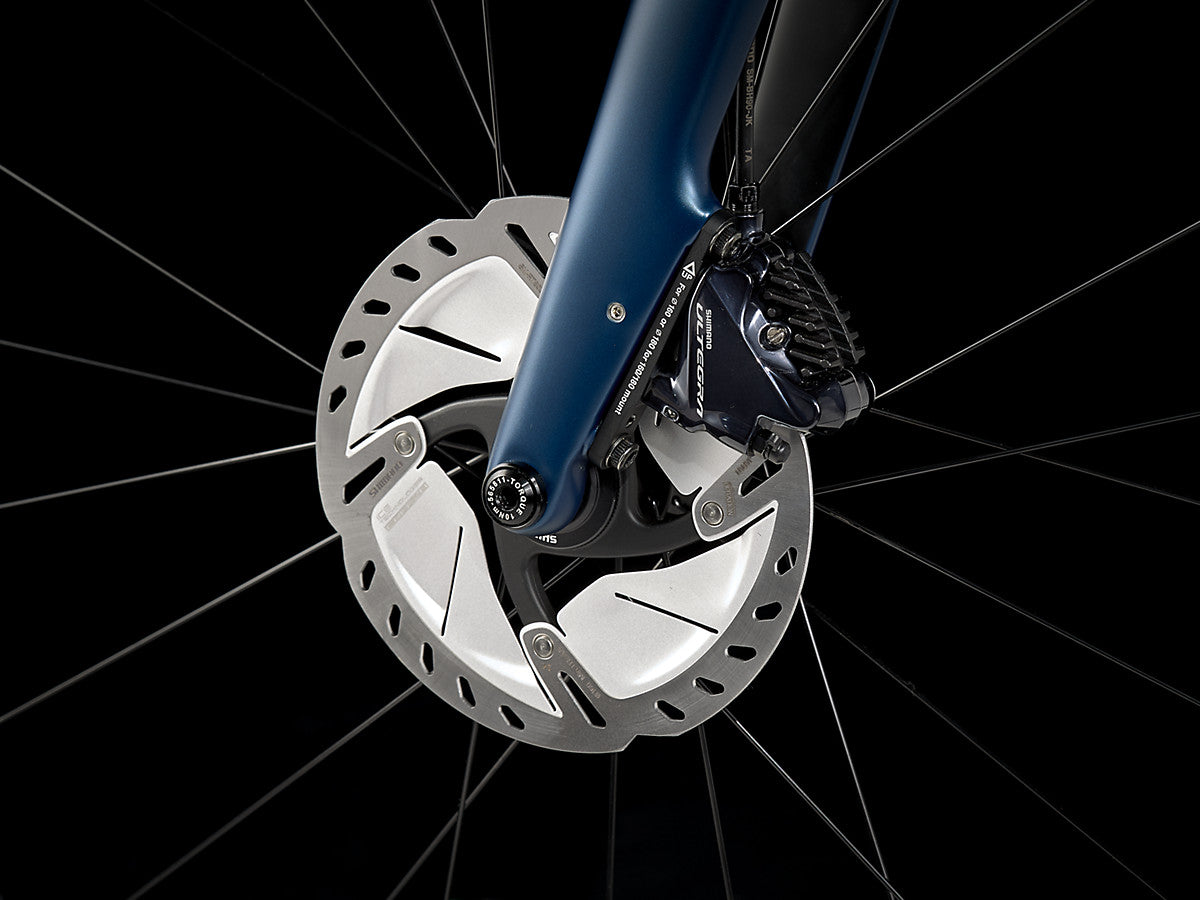

Brake Rotor - Shimano MT800, centerlock, 160mm
Cassette - Shimano Ultegra HG800, 11-34, 11 speed
Chain - Shimano Ultegra HG701, 11-speed

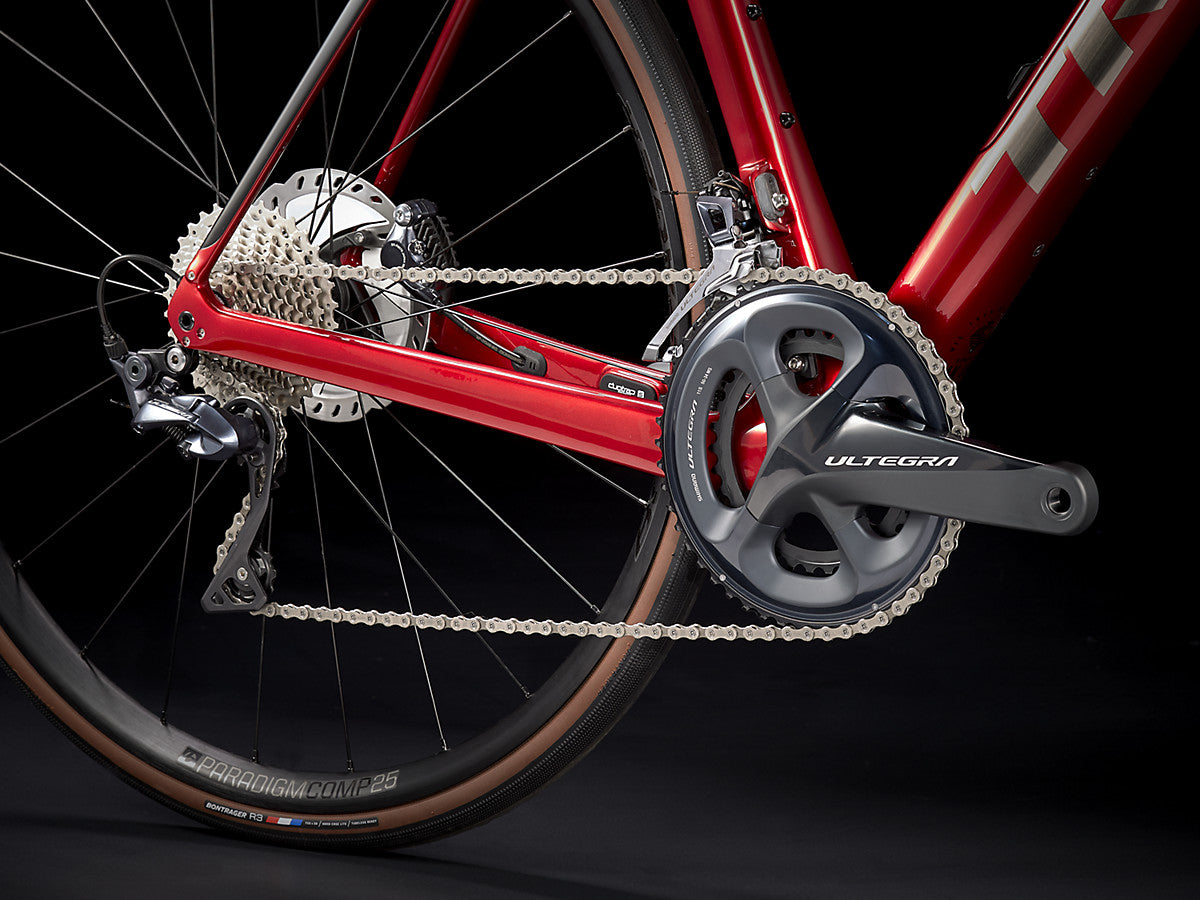

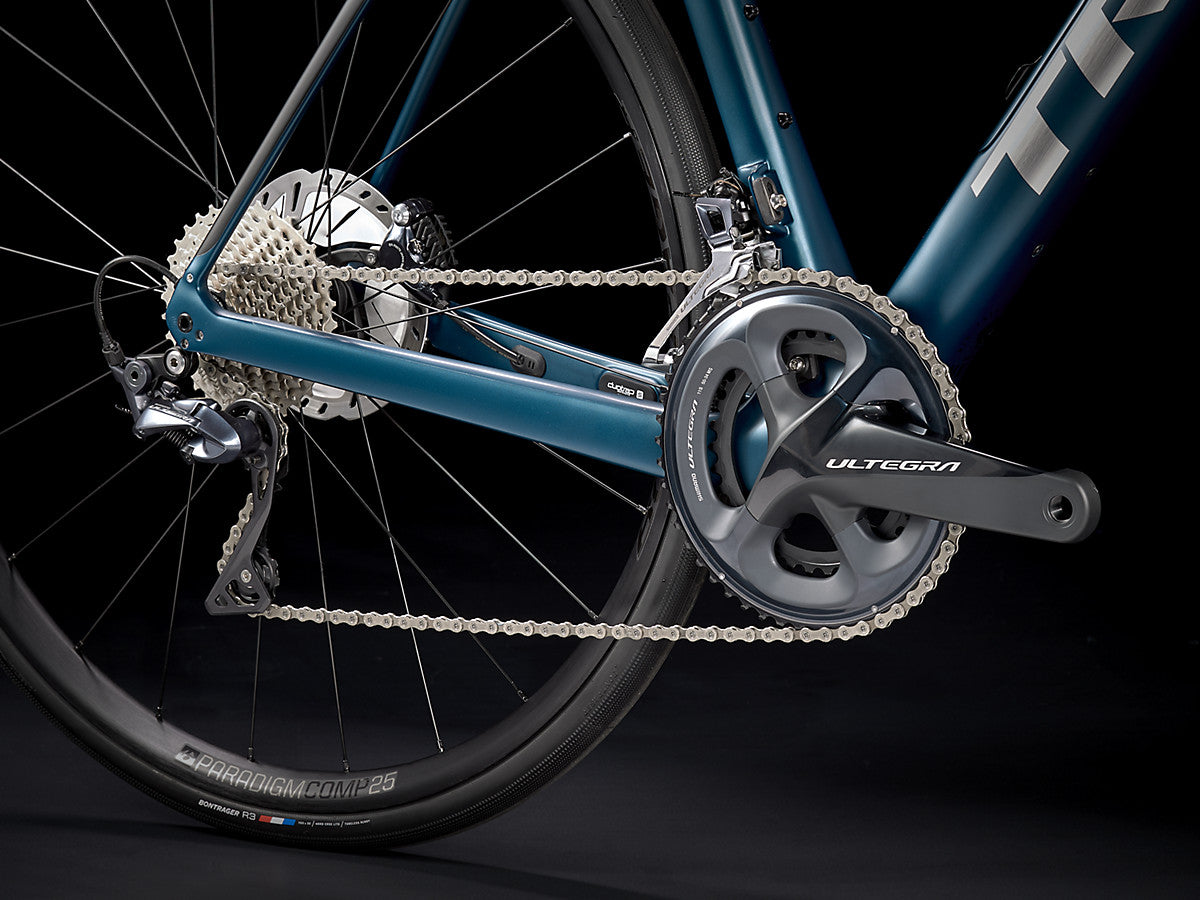

Crankset - Shimano Ultegra R8000, 50/34 (compact), 165mm length -175mm length (depending on frame size)
Bottom Bracket - Praxis, T47 threaded, internal bearing
Wheels - [F] Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle, [R] Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Spokes - N/A
Tires - Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c (Max Tire Size: 38c)
Extras - Bontrager BITS Internal Frame Storage Bag
Weight - 56 - 22.16 lbs / 10.05 kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Prices shown are manufacturer's suggested retail prices.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Sizing & Geometry
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.
|
47cm |
50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
62cm |
|
| Rider Height | 4'11.8"-5'2.2" | 5'2.2"-5'4.2" | 5'4.2"-5'6.1" | 5'6.1"-5'8.5" | 5'8.5"-5'10.9" | 5'10.9"-6'0.8" | 6'0.8"-6'2.8" | 6'2.8"-6'4.8" |
| Inseam | 28.0"-29.5" | 29.1"-30.3" | 29.9"- 31.1" | 30.7"- 32.3" | 31.9"- 33.5" | 33.1" - 34.3" | 33.9"- 35.4" | 35.0"-36.2" |
All measurements provided in cm unless otherwise noted.
| Frame Size Number | 47cm | 50cm | 52cm |
54cm |
56cm | 58cm | 61cm | 62cm |
|
Wheel Size |
700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
|
A - Seat Tube |
42.0 | 45.0 | 47.5 | 50.0 | 52.5 | 54.8 | 57.6 | 58.6 |
| B - Seat Tube Angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.7° | 72.5° |
| C - Head Tube Length | 11.0 | 13.0 | 14.5 | 16.0 | 17.5 | 19.5 | 23.5 | 24.5 |
| D - Head angle | 71.0° | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
| E - Effective top tube | 50.9 | 51.9 | 53.0 | 54.2 | 55.4 | 56.7 | 58.6 | 59.3 |
| G - Bottom bracket drop | 8.0 | 8.0 | 8.0 | 8.0 | 7.8 | 7.8 | 7.5 | 7.5 |
| H - Chainstay length | 42.0 | 42.0 | 42.0 | 42.0 | 42.0 | 42.5 | 42.5 | 42.5 |
| I - Offset | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.8 |
| J - Trail | 6.1 | 6.0 | 5.9 | 5.9 | 6.1 | 6.0 | 6.3 | 5.9 |
| K - Wheelbase | 98.6 |
99.6 | 100.3 | 101.0 | 100.8 | 102.2 | 103.8 | 104.2 |
| L - Standover | 68.6 | 71.6 | 73.5 | 75.4 | 77.6 | 79.6 | 84.2 | 83.5 |
| M - Frame reach | 36.4 | 36.8 | 37.1 | 37.4 | 37.7 | 38.0 | 38.5 | 38.6 |
| N - Frame stack | 52.7 | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 64.6 | 65.6 |
