Hybrid Bike
Trek Dual Sport 3 Gen 5
SKU5275926
Dual Sport 3 is high performance, go-anywhere hybrid bike that transitions from pavement to rougher terrain with ease. It has a light frame and a low-maintenance 1x drivetrain with a wide range of gears. Its wide Bontrager Kovee wheels and lofty gravel tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, rail trails, and light dirt paths.
OVERVIEW
It's right for you if...
You're looking for a light, fast, and capable hybrid bike with quality parts. You plan to use your bike to explore light trails, hit the pavement for fast fitness rides, run errands, and more.
The tech you get
A lightweight aluminum frame with sleek internal cable routing, a lightweight carbon fork, wide tubeless ready Bontrager Kovee 650b wheels and wide 50c tires for capability and comfort on varied terrain, and a simple 1x10 Shimano Deore drivetrain that ditches the front derailleur for easier operation. Don't worry, the wide-range 11-46 cassette still gives you all the gears you need to conquer hills and crush flats. Plus, powerful disc brakes and mounts for a rack and fenders.
The final word
Dual Sport 3 is fast and efficient on pavement and confident and capable on dirt and gravel trails. It has terrain-smoothing wheels and tires and a sturdy and simple 1x Shimano drivetrain.
SPECS
|
*Please note - spec applies to all sizes unless listed separately
|
|
| Frameset | |
| Frame |
Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
|
| Fork |
Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
|
| Wheels | |
| Hub front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR
|
| Skewer front |
139x5mm bolt-on
|
| Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
|
| Skewer rear | 152x5mm QR |
| Rim |
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
|
| Tire |
Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50mm
|
| Max tire size | 27.5x2.00" |

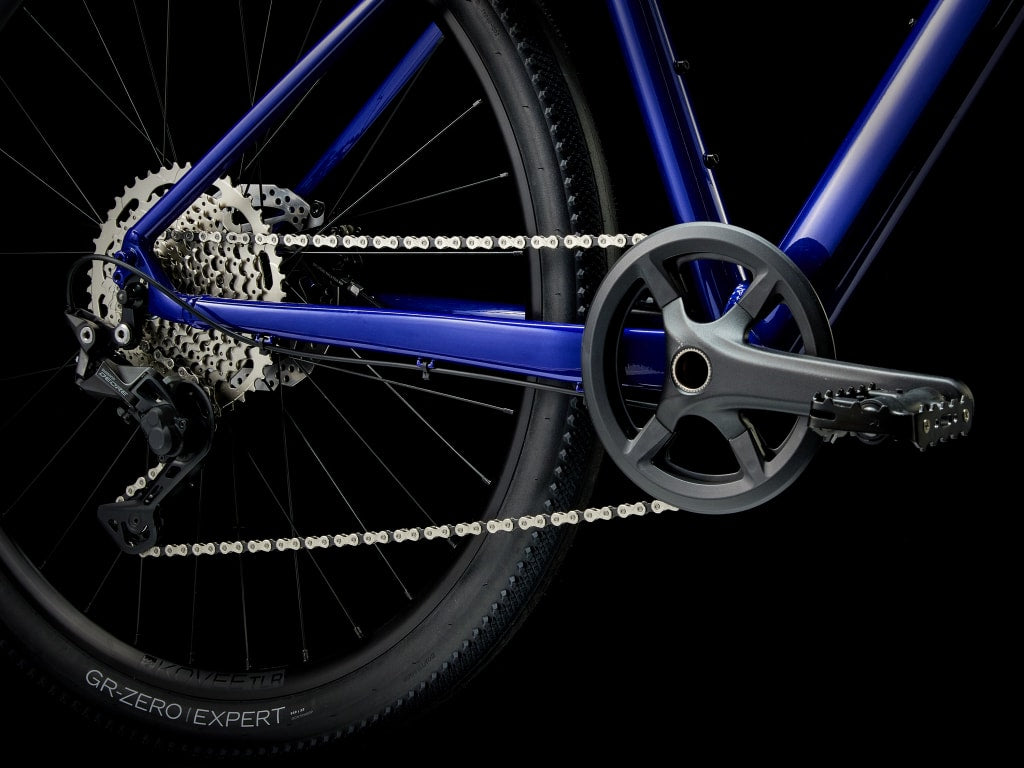

| Drivetrain | |
| Shifter |
Shimano Deore M4100, 10 speed
|
| Rear derailleur |
Shimano Deore M5120, long cage
|
|
*Crank
|
Size: S, M
Prowheel alloy, 40T narrow-wide ring, 170mm length |
|
Size: L, XL
Prowheel alloy, 40T narrow-wide ring, 175mm length |
|
| Cassette |
Shimano Deore M4100, 11-46, 10 speed
|
| Chain |
KMC X10, 10 speed
|
| Pedal |
Wellgo nylon body, alloy cage
|
| Max chainring size |
1x: 42T, 2x/3x: 48T
|
| Components | |

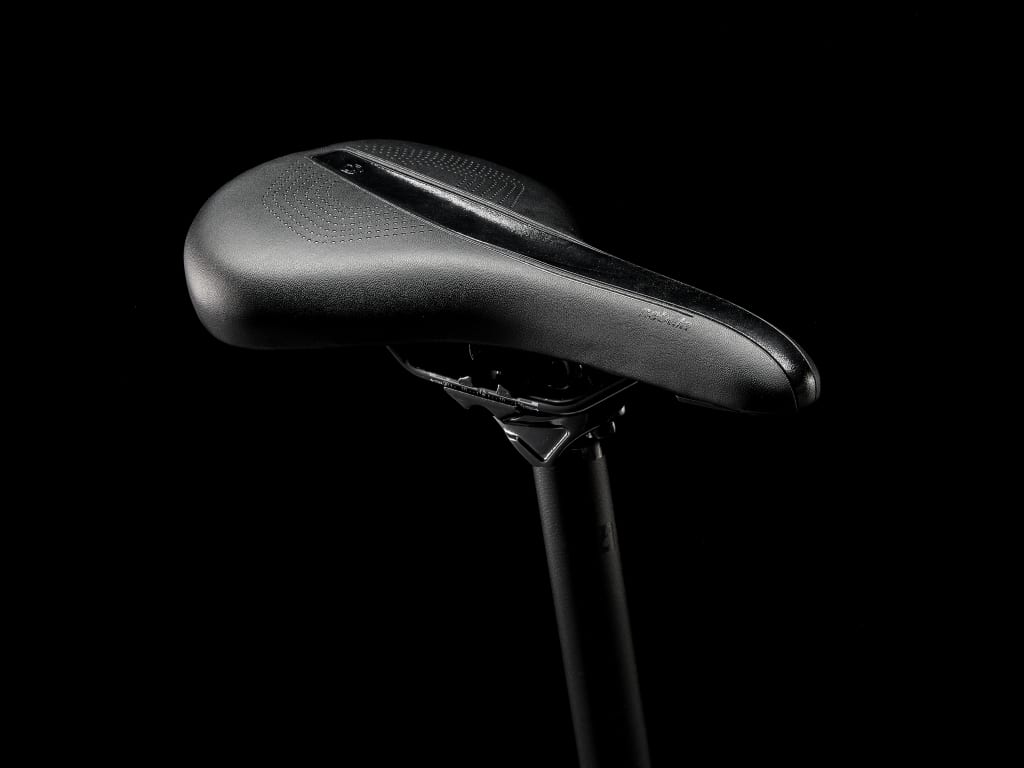

| Saddle | Bontrager H1 |
| Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
|
|

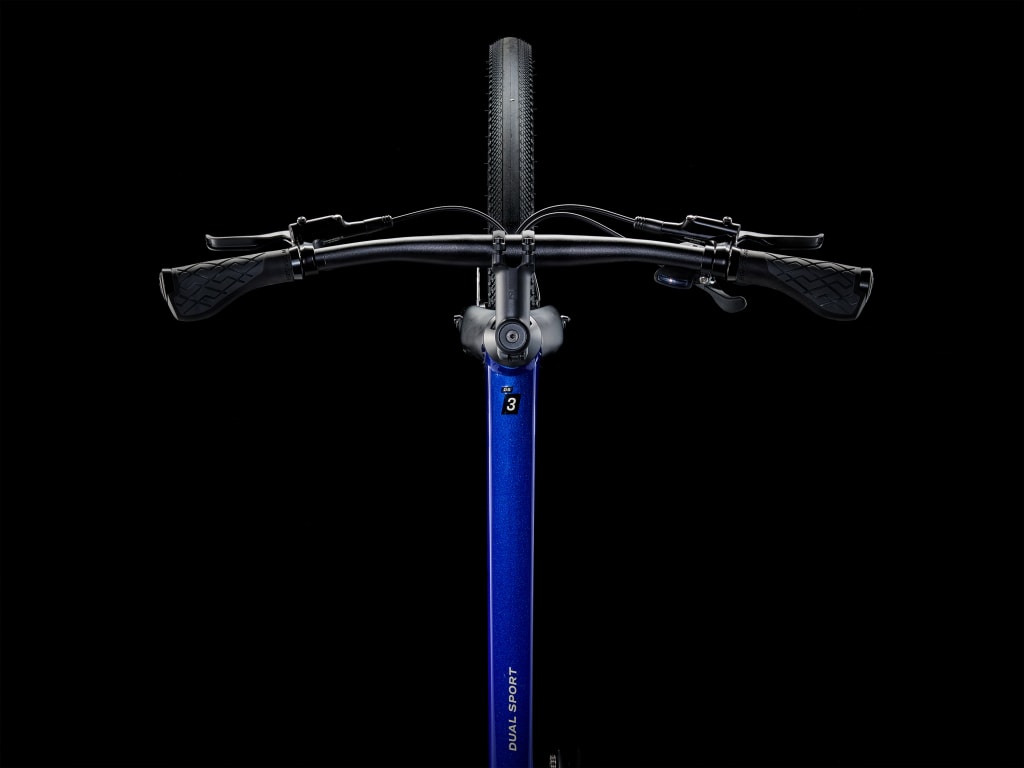

*Handlebar
|
Size: S
Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width |
|
Size: M, L
Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width |
|
|
Size: XL
Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 690mm width |
|
| Grips |
Bontrager XR Endurance Elite
|
|
*Stem
|
Size: S
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
Size: M, L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
|
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Brake |
Shimano hydraulic disc, MT201 lever, UR300 caliper
|
| Brake rotor |
Shimano RT26, 6-bolt,160mm
|
| Rotor size |
Max brake rotor sizes: 160mm front & rear
|
| Weight | |
| Weight |
M - 11.88 kg / 26.2 lbs
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|
|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
|
|
|
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
|
SIZING GUIDE AND GEOMETRY
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
147 - 155 cm 4'10" - 5'1" |
69 - 73 cm 27" - 29" |
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
All measurements provided in cm unless otherwise noted.
| Frame size letter | S | M | L | XL |
| Wheel size | 27.5" | 27.5" | 27.5" | 27.5" |
| A — Seat tube | 37.5 | 42 | 46.5 | 52 |
| B — Seat tube angle | 73.8° | 73.3° | 72.8° | 71.8° |
| C — Head tube length | 14 | 16.5 | 19 | 21.5 |
| D — Head angle | 69.8° | 70.3° | 70.8° | 71.8° |
| E — Effective top tube | 54.5 | 56.5 | 58.5 | 61.5 |
| F — Bottom bracket height | 28.9 | 28.9 | 28.9 | 28.9 |
| G — Bottom bracket drop | 6 | 6 | 6 | 6 |
| H — Chainstay length | 44.7 | 44.7 | 44.7 | 44.7 |
| I — Offset | 3.9 | 3.9 | 3.9 | 3.9 |
| J — Trail | 8.7 | 8.3 | 8 | 7.4 |
| K — Wheelbase | 105.2 | 106.3 | 107.2 | 107.9 |
| L — Standover | 72.3 | 76.1 | 80 | 84.3 |
| M — Frame reach | 37.8 | 38.5 | 39.1 | 40.1 |
| N — Frame stack | 57.3 | 59.8 | 62.4 | 65.2 |
