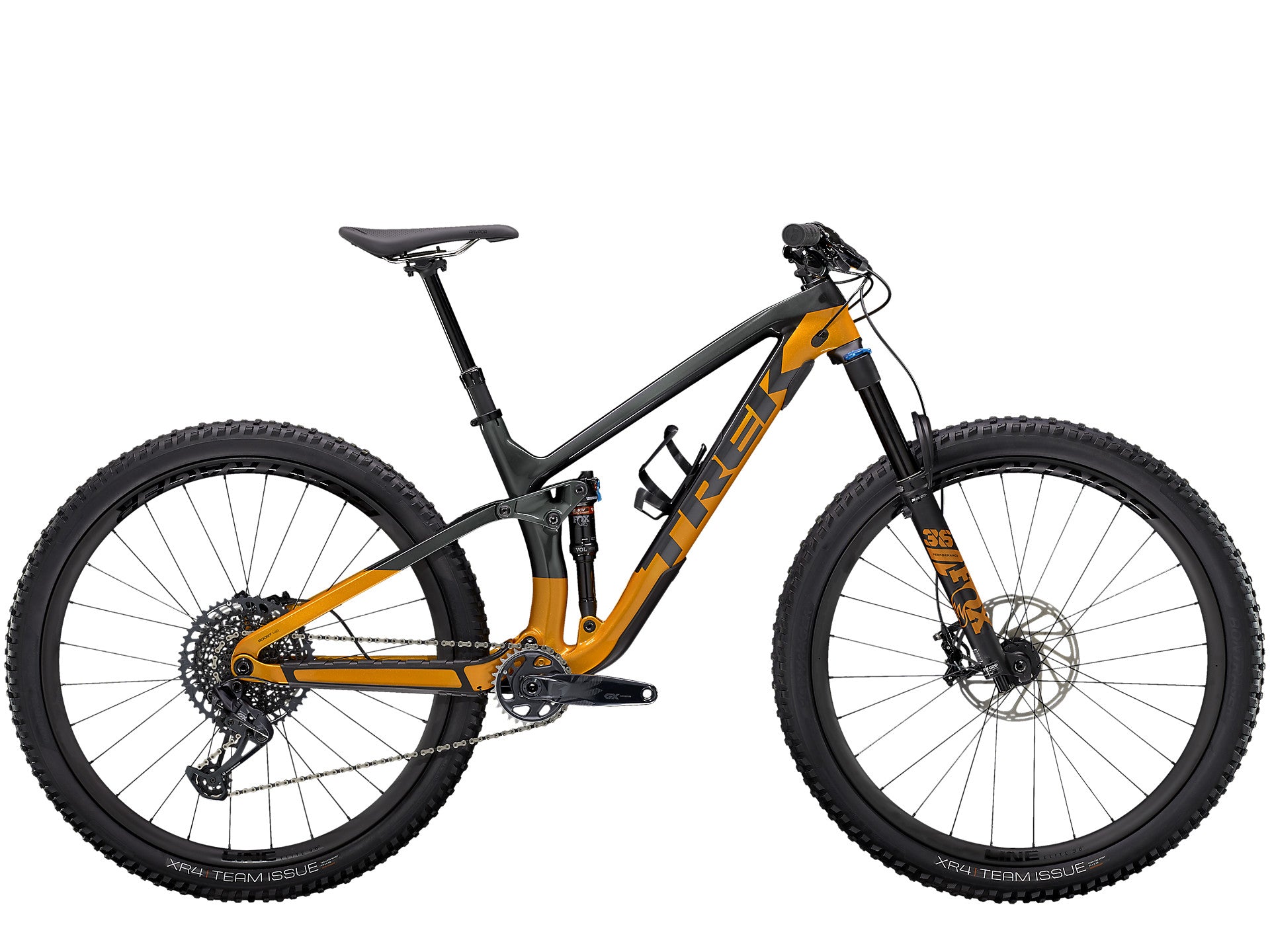

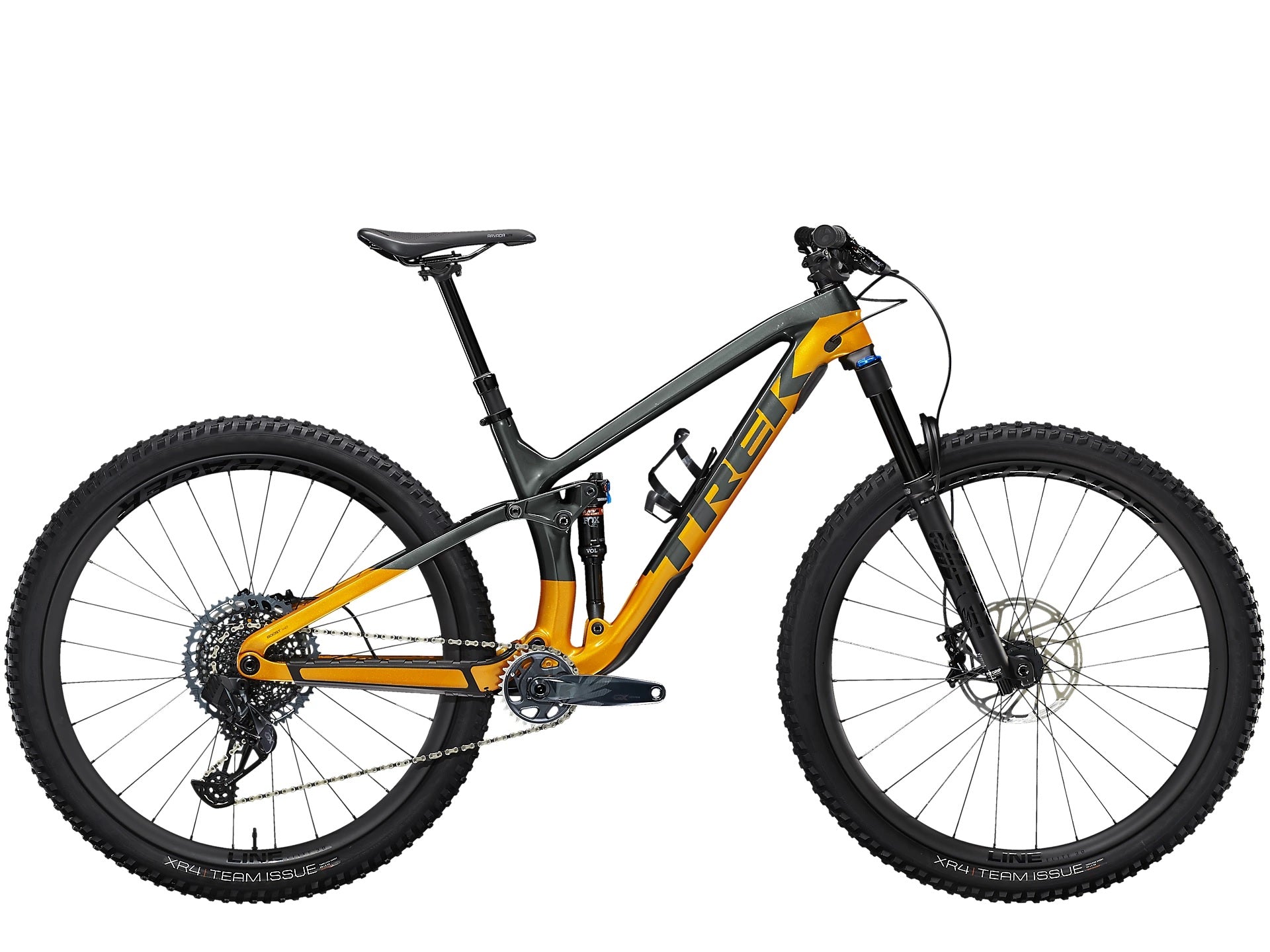

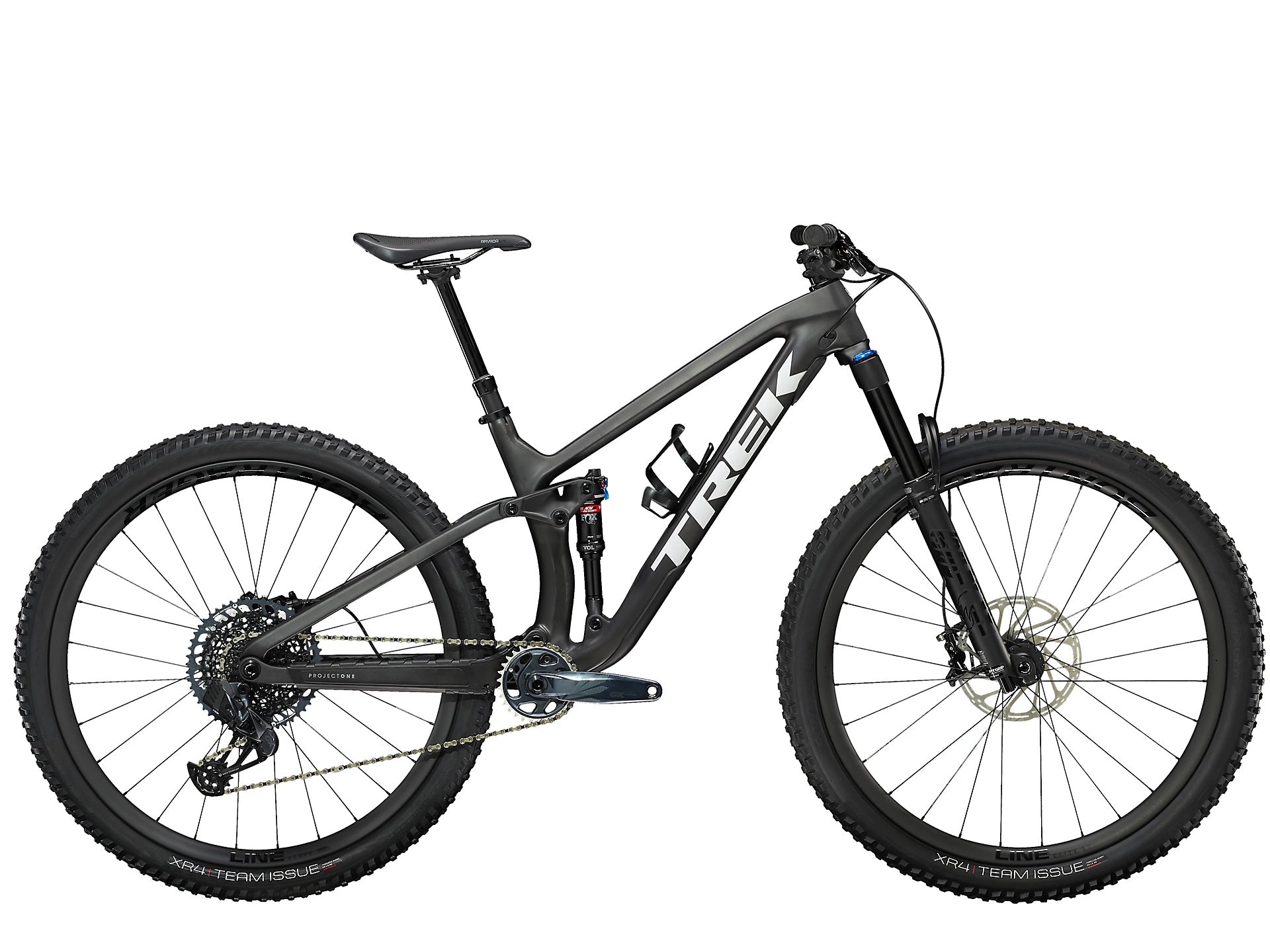

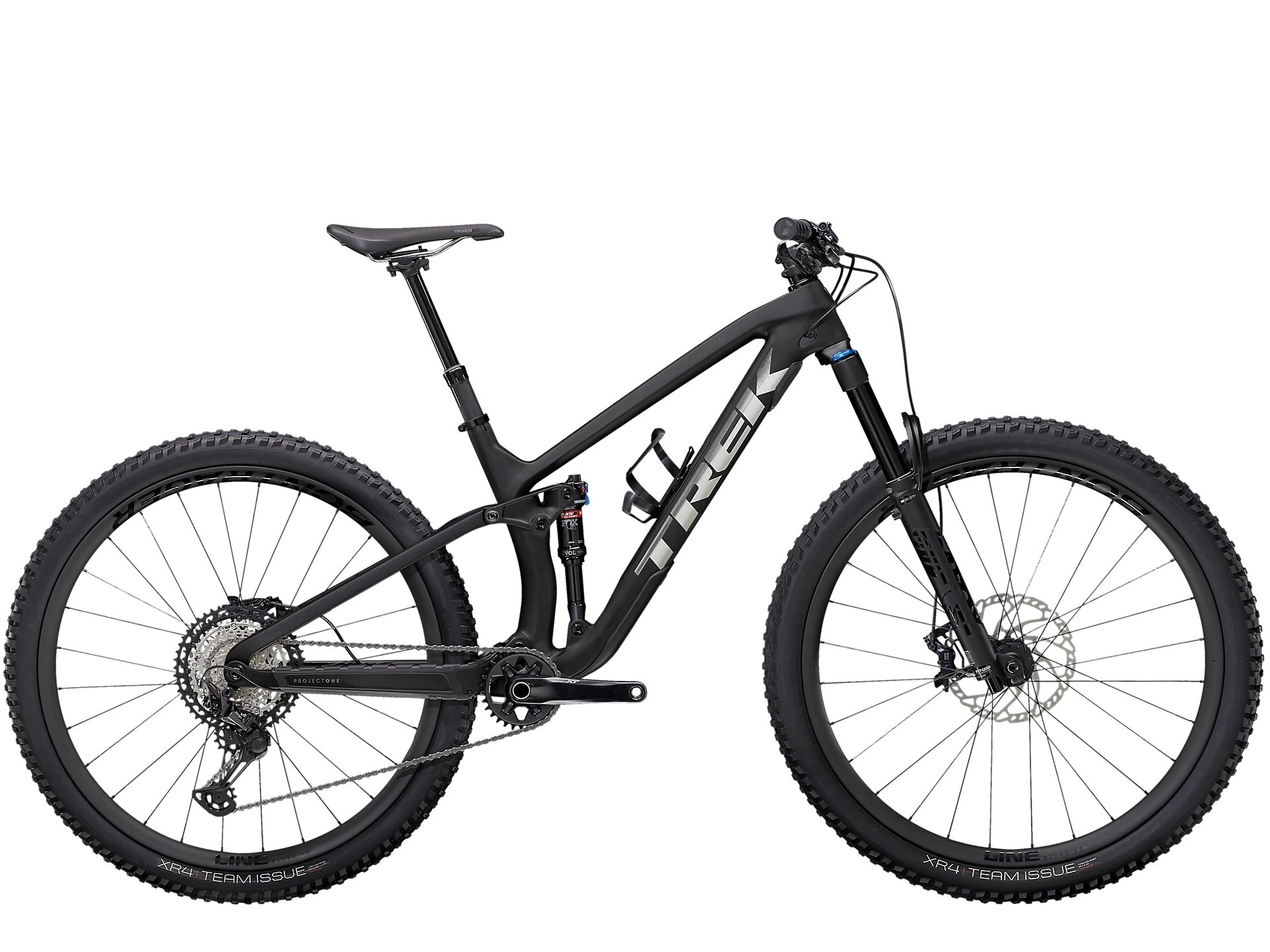

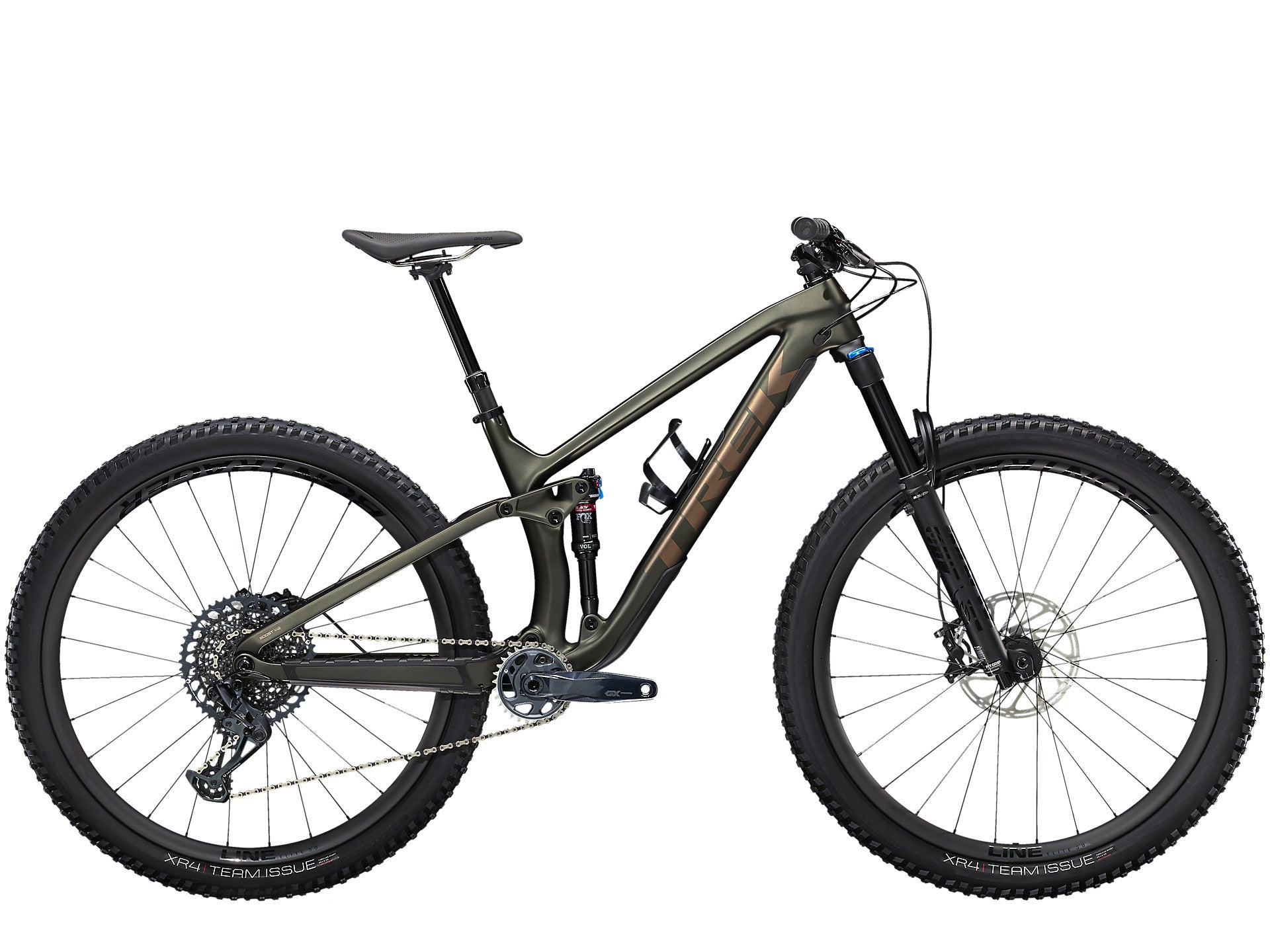

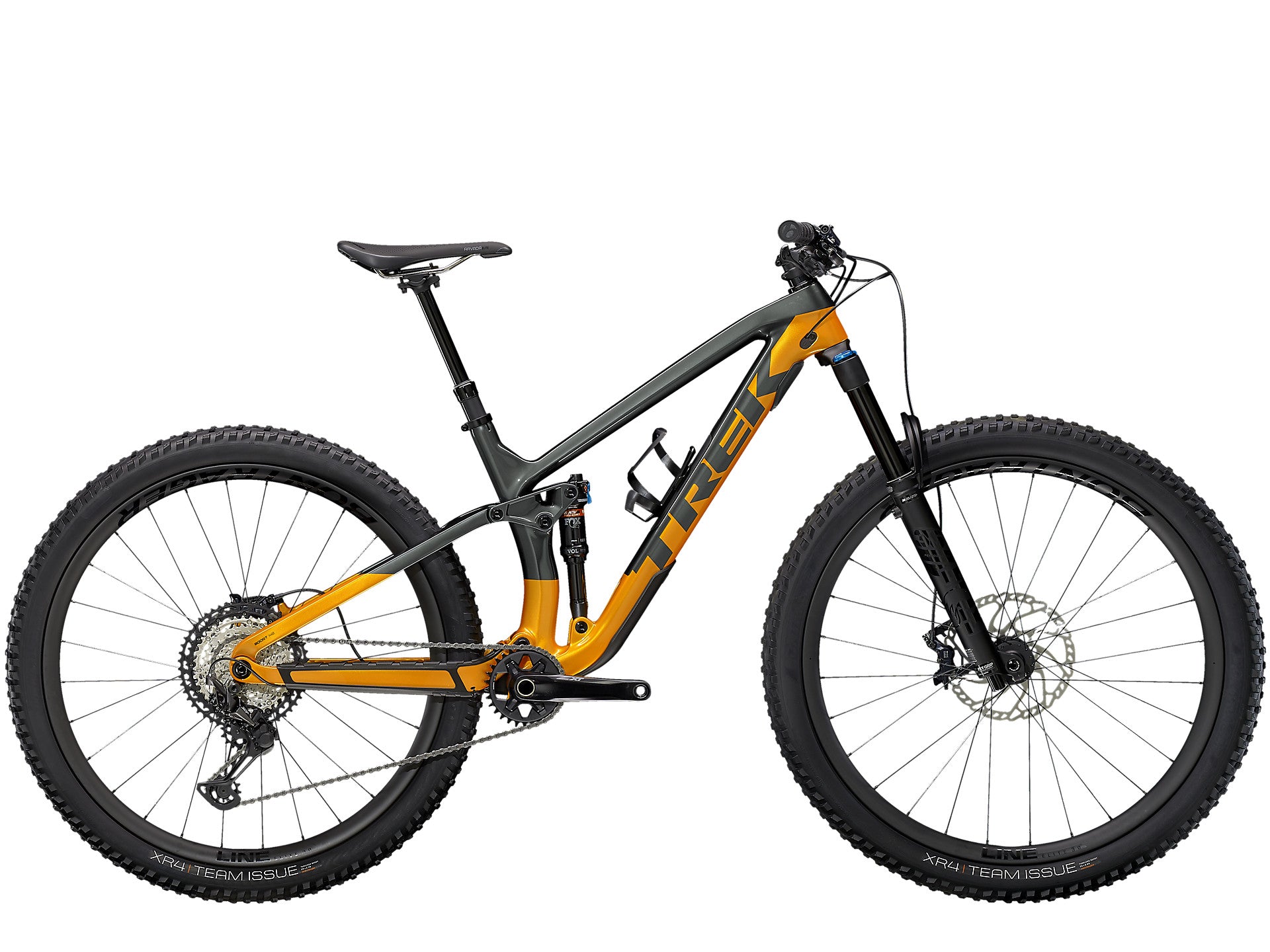

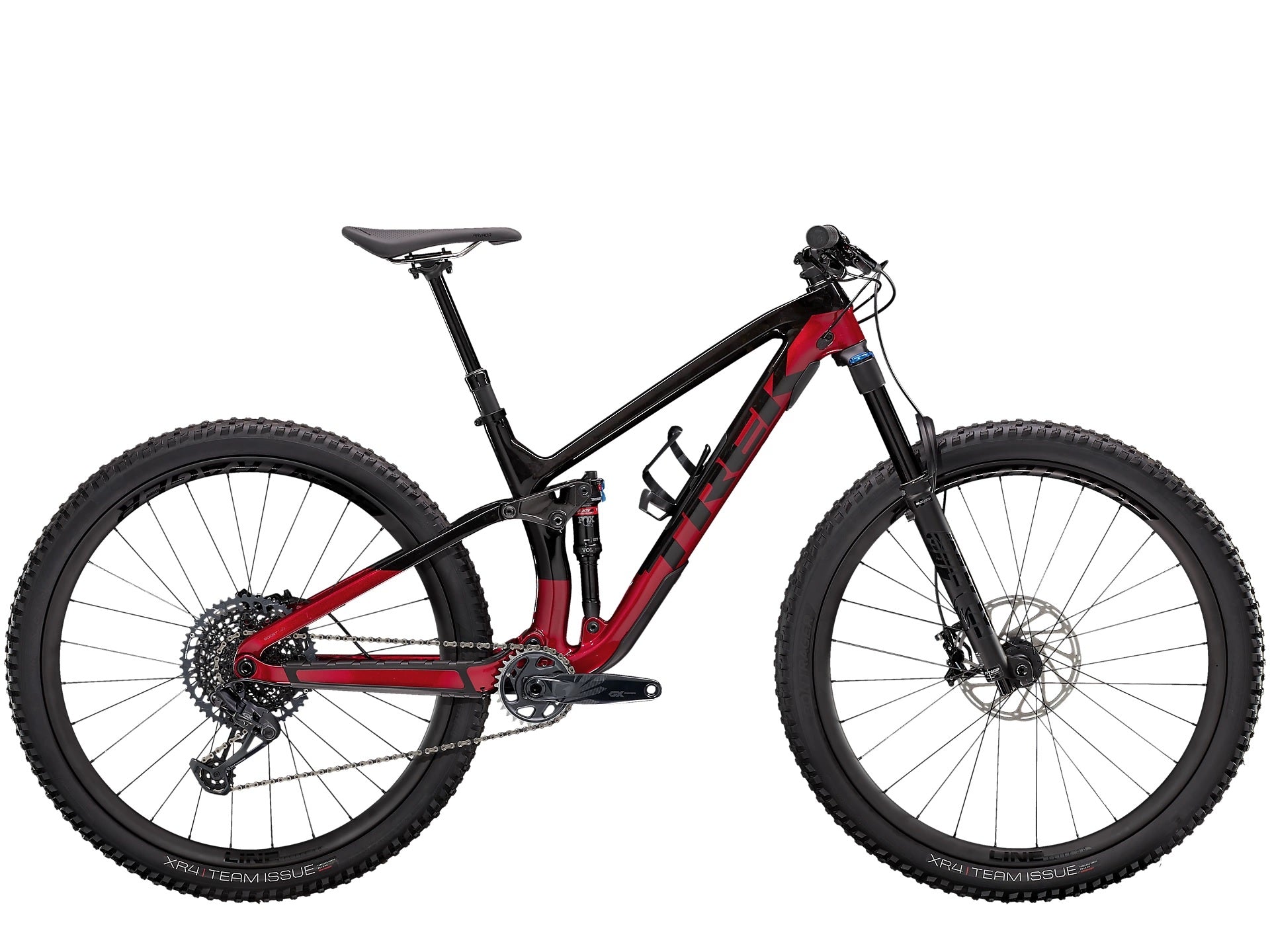

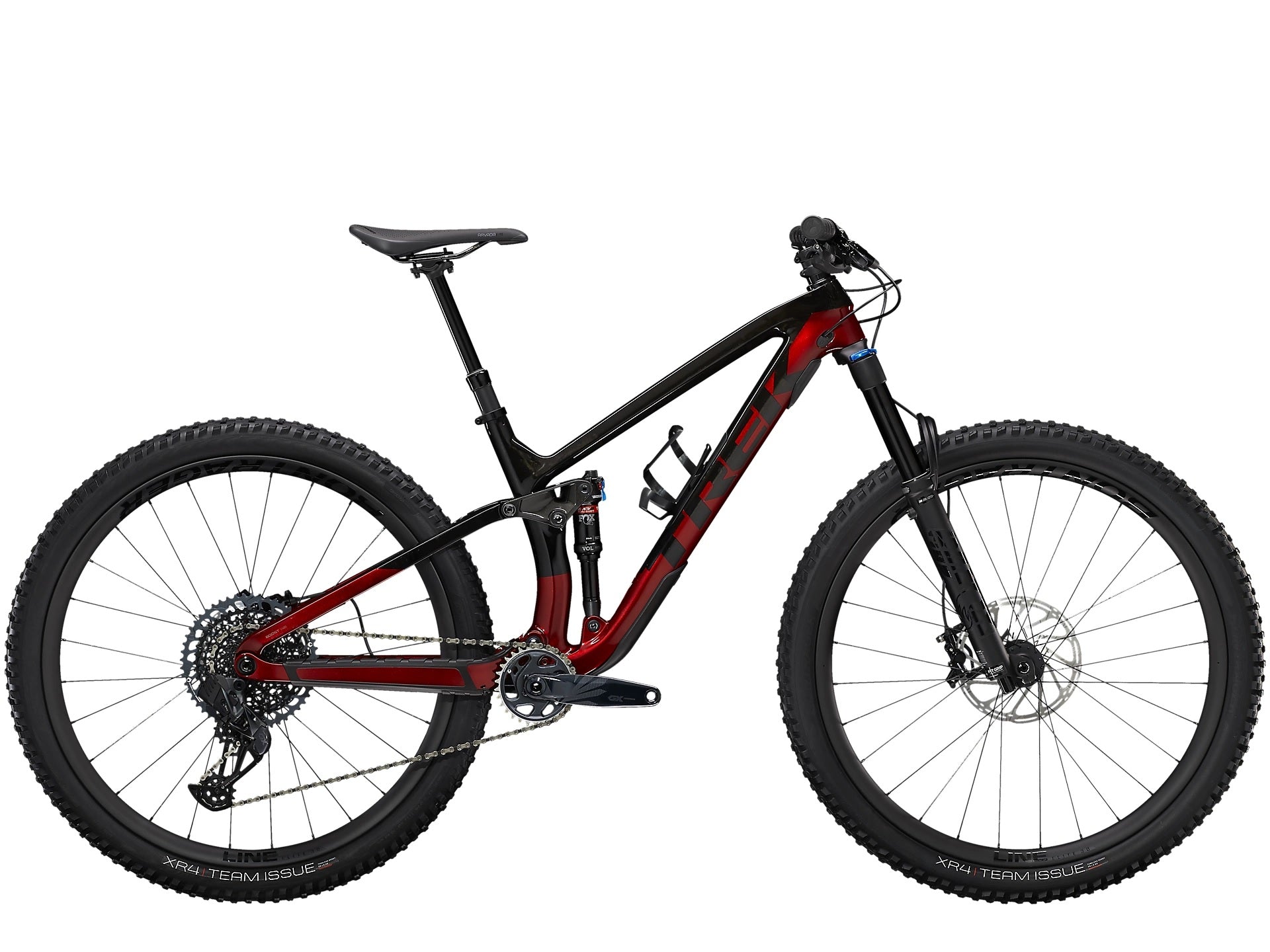

Fuel EX 9.8 combines a light full-carbon frame with parts chosen for the highest performance-to-price ratio. High-end FOX suspension with upgraded front and rear dampers, carbon wheels with a Rapid Drive rear hub, and SRAM's latest, widest-range drivetrain give this model an extra edge you'll notice from the first pedal stroke.
It's right for you if...
You want a single bike that can handle any trail with the light weight and vibration damping of a carbon frame. You're willing to pay for parts that give you a better connection with the trail, but you'd rather skip the bling.
The tech you get
A light and stiff full-carbon frame with internal storage, FOX Performance 36 fork with wider stanchions for more stiffness on rough terrain, and a RE:aktiv with Thru Shaft shock. SRAM GX Eagle drivetrain (Cable or AXS) with a leg-saving 52-tooth climbing gear OR a Shimano XT 1x12 drivetrain for super-smooth shifting that's easy on the thumb with an extra-low 51-tooth climbing gear, plus Bontrager carbon wheels with a 108-tooth Rapid Drive hub for instant engagement.
The final word
Fuel EX 9.8 is a great investment for one bike that does it all. You get a light carbon frame, but it's the parts that make this model, like the extra-adjustable GRIP damper, the magic-carpet ride of Thru Shaft, and the blistering acceleration of carbon wheels with a Rapid Drive hub.
Why you'll love it
- Fuel EX 9.8 will take your riding to the next level with a parts package that gives you top-shelf performance without the top-shelf price tag
- RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control
- A sleek internal storage compartment gives you a handy spot to stow flat fixing supplies or gear
- We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M to XL get 29˝ wheels
Frameset
Frame OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Frame OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
*Shock Size: XS , S
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 52.5mm
Size: S , M , ML , L , XL
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 55mm
Max compatible fork travel 150mm (561mm axle-to-crown)
Wheels
Wheel front NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
*Tire Size: XS , S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''
Size: XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''
Size: XS , S
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 27.5x2.50''
Size: S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
Size: S , M , ML , L , XL
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50''
*Tire part Size: XS , S , M , ML , L , XL
Bontrager TLR sealant, 6oz
Size: XS , S , M , ML , L , XL
Bontrager TLR valve, 50mm
Rim strip Bontrager TLR
Max tire size Frame: 29x2.60" Fork: See manufacturer
Drivetrain
Shifter SRAM GX Eagle, 12 speed
Rear derailleur SRAM GX Eagle
*Crank Size: XS , S , M , ML , L
SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 170mm length
Size: S , M , ML , L , XL
SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 175mm length
Bottom bracket SRAM DUB, 92mm, PressFit
Cassette SRAM Eagle XG-1275, 10-52, 12 speed
Chain SRAM GX Eagle, 12 speed
Max chainring size 34T
Components
Saddle Bontrager Arvada, austenite rails, 138mm width
*Seatpost Size: XS , S
Bontrager Line Elite, 100mm travel, MaxFlow, internal routing, 31.6mm, 340mm length
Size: XS , S
Bontrager Line Elite Dropper, 100mm travel, internal routing, 31.6mm, 340mm length
Size: M , ML
Bontrager Line Elite, 150mm travel, MaxFlow, internal routing, 31.6mm, 440mm length
Size: M , ML
Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Size: L , XL
Bontrager Line Elite, 170mm travel, MaxFlow, internal routing, 31.6mm, 480mm length
Size: L , XL
Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6mm, 480mm length
*Handlebar Size: XS , S , M , ML , L , XL
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Size: XS , S
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
*Grips Size: XS , S , M , ML , L , XL
Bontrager XR Trail Elite, nylon lock-on
Size: XS , S , M , ML , L , XL
Bontrager XR Trail Elite, alloy lock-on
*Stem Size: XS , S
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length
Size: M , ML , L , XL
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake SRAM G2 RS 4-piston hydraulic disc
*Brake rotor Size: XS , S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200mm
Accessories
Bag Bontrager BITS Internal Frame Storage Bag
Weight
Weight M - 28.88 lbs / 13.1 kg (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Frameset
Frame OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
*Shock Size: XS , S
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 52.5mm
Size: S , M , ML , L , XL
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 55mm
Max compatible fork travel 150mm (561mm axle-to-crown)
Wheels
Wheel front NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
*Tire Size: XS , S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''
Size: XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''
Size: S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
*Tire part Size: XS , S , M , ML , L , XL
Bontrager TLR valve, 50mm
Size: XS , S , M , ML , L , XL
Bontrager TLR sealant, 6oz
Rim strip Bontrager TLR
Max tire size Frame: 29x2.60" Fork: See manufacturer
Drivetrain
Shifter Shimano XT M8100, 12 speed
Rear derailleur Shimano XT M8100, long cage, 51T max cog
*Crank Size: XS , S
Shimano XT M8100, 30T alloy ring, Boost (52mm chainline), 170mm length
Size: M , ML , L , XL
Shimano XT M8100, 30T alloy ring, Boost (52mm chainline), 175mm length
Bottom bracket Shimano MT500, 92mm, PressFit
Cassette Shimano XT M8100, 10-51, 12 speed
Chain Shimano XT M8100, 12 speed
Max chainring size 34T
Components
Saddle Bontrager Arvada, austenite rails, 138mm width
*Seatpost Size: XS , S
Bontrager Line Elite Dropper, 100mm travel, internal routing, 31.6mm, 340mm length
Size: M , ML
Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Size: L , XL
Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6mm, 480mm length
Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips Bontrager XR Trail Elite, alloy lock-on
*Stem Size: XS , S
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length
Size: M , ML , L , XL
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake Shimano SLX M7120 4-piston hydraulic disc
*Brake rotor Size: XS , S , M , ML , L , XL
Shimano RT66, 6-bolt, 180mm
Size: M , ML , L , XL
Shimano RT66, 203mm, 6-bolt
Accessories
Bag Bontrager BITS Internal Frame Storage Bag
Weight
Weight M - 13.13 kg / 28.94 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Frameset
Frame OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Frame OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
*Shock Size: XS , S
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 52.5mm
Size: S , M , ML , L , XL
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 55mm
Max compatible fork travel 150mm (561mm axle-to-crown)
Wheels
Wheel front NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
*Tire Size: XS , S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''
Size: XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''
Size: S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
*Tire part Size: XS , S , M , ML , L , XL
Bontrager TLR sealant, 6oz
Size: XS , S , M , ML , L , XL
Bontrager TLR valve, 50mm
Rim strip Bontrager TLR
Max tire size Frame: 29x2.60" Fork: See manufacturer
Drivetrain
Shifter SRAM GX Eagle AXS, 12 speed
Rear derailleur SRAM GX Eagle AXS
*Crank Size: XS , S
SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 170mm length
Size: M , ML , L , XL
SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 175mm length
Bottom bracket SRAM DUB, 92mm, PressFit
Cassette SRAM Eagle XG-1275, 10-52, 12 speed
Chain SRAM GX Eagle, 12 speed
Max chainring size 34T
Components
Saddle Bontrager Arvada, austenite rails, 138mm width
*Seatpost Size: XS , S
Bontrager Line Elite, 100mm travel, MaxFlow, internal routing, 31.6mm, 340mm length
Size: M , ML
Bontrager Line Elite, 150mm travel, MaxFlow, internal routing, 31.6mm, 440mm length
Size: L , XL
Bontrager Line Elite, 170mm travel, MaxFlow, internal routing, 31.6mm, 480mm length
Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips Bontrager XR Trail Elite, nylon lock-on
*Stem Size: XS , S
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length
Size: M , ML , L , XL
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake SRAM G2 RS 4-piston hydraulic disc
*Brake rotor Size: XS , S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200mm
Accessories
Bag Bontrager BITS Internal Frame Storage Bag
Weight
Weight 29.12 lbs / 13.21 kg (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
All measurements provided in cm unless otherwise noted.
| Frame size number | Frame size letter | Geometry position | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.0 | XS | Low | 27.5" | 35.6 | 69.0° | 75.0° | 9.0 | 66.0° | 54.6 | 33.5 | 2.1 | 43.7 | 4.3 | 11.1 | 112.0 | 69.5 | 39.5 | 56.3 |
| 14.0 | XS | High | 27.5" | 35.5 | 69.5° | 75.5° | 9.0 | 66.5° | 54.5 | 34.1 | 1.4 | 43.6 | 4.3 | 10.6 | 111.9 | 70.0 | 40.0 | 55.9 |
| 15.5 | S | Low | 27.5" | 39.5 | 69.0° | 75.0° | 10.0 | 66.0° | 56.8 | 33.5 | 2.1 | 43.7 | 4.3 | 11.1 | 114.4 | 70.0 | 41.5 | 57.2 |
| 15.5 | S | High | 27.5" | 39.5 | 69.5° | 75.5° | 10.0 | 66.5° | 56.7 | 34.1 | 1.4 | 43.6 | 4.3 | 10.6 | 114.3 | 70.7 | 42.0 | 56.8 |
| 17.5 | M | Low | 29" | 42.0 | 67.5° | 75.0° | 10.0 | 66.0° | 60.3 | 34 | 3.4 | 43.7 | 4.3 | 11.9 | 117.9 | 74.2 | 44.0 | 60.9 |
| 17.5 | M | High | 29" | 42.0 | 68.0° | 75.5° | 10.0 | 66.5° | 60.2 | 34.6 | 2.8 | 43.6 | 4.3 | 11.6 | 117.8 | 74.8 | 44.5 | 60.5 |
| 18.5 | ML | Low | 29" | 43.5 | 67.5° | 75.0° | 10.5 | 66.0° | 61.9 | 34 | 3.4 | 43.7 | 4.3 | 11.9 | 119.6 | 74.5 | 45.5 | 61.3 |
| 18.5 | ML | High | 29" | 43.5 | 68.0° | 75.5° | 10.5 | 66.5° | 61.8 | 34.6 | 2.8 | 43.6 | 4.3 | 11.6 | 119.5 | 75.1 | 46.0 | 60.9 |
| 19.5 | L | Low | 29" | 45.0 | 67.5° | 75.0° | 10.5 | 66.0° | 63.4 | 34 | 3.4 | 43.7 | 4.3 | 11.9 | 121.1 | 75.0 | 47.0 | 61.3 |
| 19.5 | L | High | 29" | 45.0 | 68.0° | 75.5° | 10.5 | 66.5° | 63.3 | 34.6 | 2.7 | 43.6 | 4.3 | 11.6 | 121.0 | 75.6 | 47.5 | 60.9 |
| 21.5 | XL | Low | 29" | 50.0 | 67.5° | 75.0° | 12.0 | 66.0° | 66.3 | 34 | 3.4 | 43.7 | 4.3 | 11.9 | 124.2 | 76.2 | 49.5 | 62.7 |
| 21.5 | XL | High | 29" | 50.0 | 68.0° | 75.5° | 12.0 | 66.5° | 66.2 | 34.6 | 2.7 | 43.6 | 4.3 | 11.6 | 124.1 | 76.8 | 50.0 | 62.3 |
