Road Bike

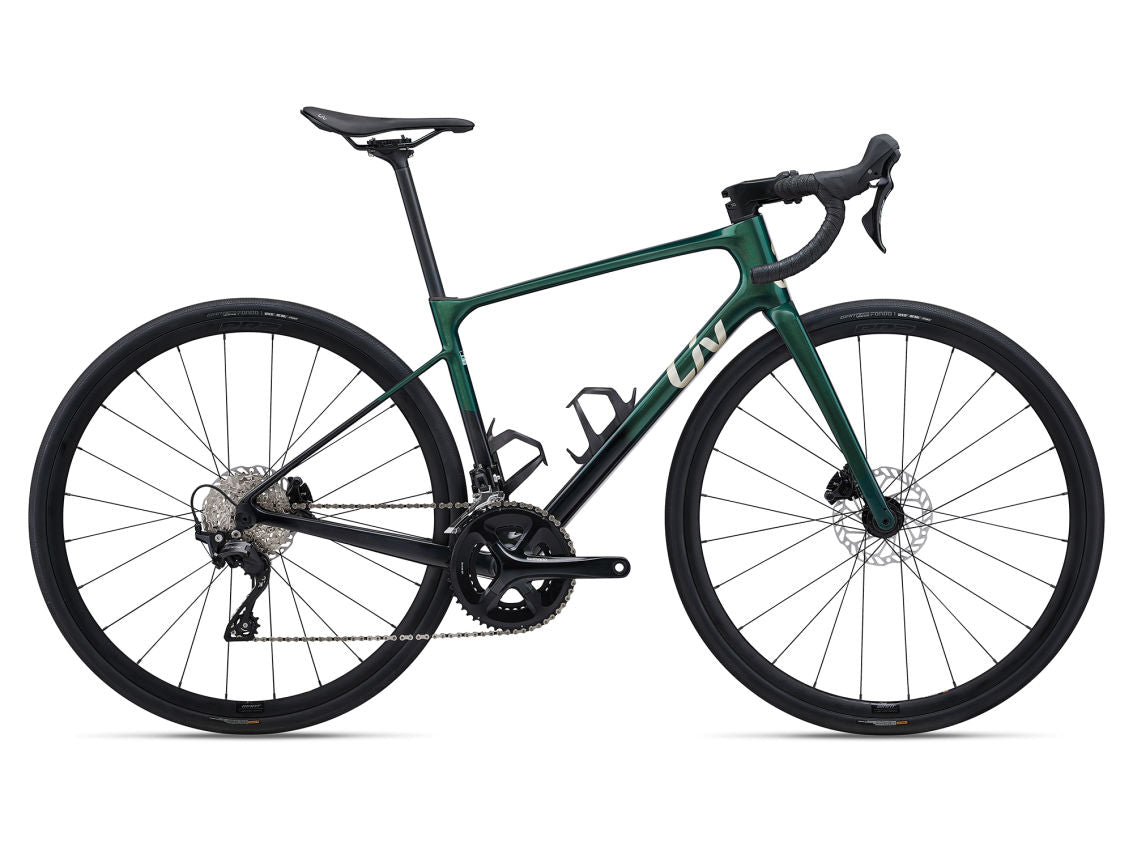

Liv Avail Advanced 2
SKU1017005104
KEY PERFORMANCE FACTORS
Lightweight Advantage
The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those all-day rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.
SPECS
| Sizes |
XXS, XS, S, M, L
|
| Colors |
Mulberry Glitter, Kelp Forest/Carbon
|
| Frame |
Advanced-grade composite, 12x142mm thru-axle, disc
|
| Fork |
Advanced-grade composite, full-composite OverDrive steerer, stainless steel bearings 12x100mm, disc
|
| Shock | N/A |
| Handlebar |
Liv Contact SL D-Fuse, 31.8mm, 8-degree flare drop XXS: 410/380mm, XS: 410/380mm, S: 430/400mm, M: 430/400mm, L: 450/420mm
|
| Grips | Liv All Condition |
| Stem |
Giant Contact AeroLight XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
|
| Seatpost |
Giant Contact D-Fuse, composite, 14mm offset XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
|
| Saddle | Liv Approach |
| Pedals | N/A |
| Shifters | Shimano 105 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Brakes |
Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
|
| Brake Levers | Shimano 105 |
| Cassette |
Shimano 105, 12-speed, 11x36
|
| Chain | KMC 12 |
| Crankset |
Shimano FC-RS520, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
|
| Bottom Bracket |
Shimano, press fit
|
| Rims |
Giant P-R2 Disc wheelset, alloy
|
| Hubs |
Giant alloy, 12mm thru-axle
|
| Spokes | Sapim |
| Tires |
Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
|
| Extras |
tubeless prepared, two bottle cages, 38mm max tire size, fender mount
|
| Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
| XXS | XS | S | M | L | ||
| A | SEAT TUBE LENGTH (mm) | 385 | 405 | 435 | 465 | 495 |
| B | SEAT TUBE ANGLE | 75.0° | 74.5° | 74.5° | 74.0° | 74.0° |
| C | TOP TUBE LENGTH (mm) | 500 | 520 | 525 | 535 | 555 |
| D | HEAD TUBE LENGTH (mm) | 110 | 125 | 145 | 165 | 185 |
| E | HEAD TUBE ANGLE | 69.8° | 71.0° | 71.0° | 71.0° | 72.0° |
| F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL (mm) | 76 | 68 | 68 | 68 | 61 |
| H | WHEELBASE (mm) | 989 | 995 | 1002 | 1007 | 1013 |
| I | CHAIN STAY LENGTH (mm) | 420 | 420 | 420 | 420 | 420 |
| J | BOTTOM BRACKET DROP (mm) | 75 | 75 | 73 | 73 | 73 |
| K | STACK (mm) | 510 | 528 | 547 | 566 | 589 |
| L | REACH (mm) | 363 | 373 | 373 | 373 | 381 |
| M | STAND OVER HEIGHT (mm) | 683 | 712 | 737 | 762 | 789 |
| N | HANDLEBAR WIDTH (mm) | 380 | 380 | 400 | 400 | 420 |
| O | STEM LENGTH (mm) | 70 | 70 | 80 | 90 | 90 |
| P | CRANK LENGTH (mm) | 165 | 165 | 170 | 170 | 172.5 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
