Electric Full Suspension MTB

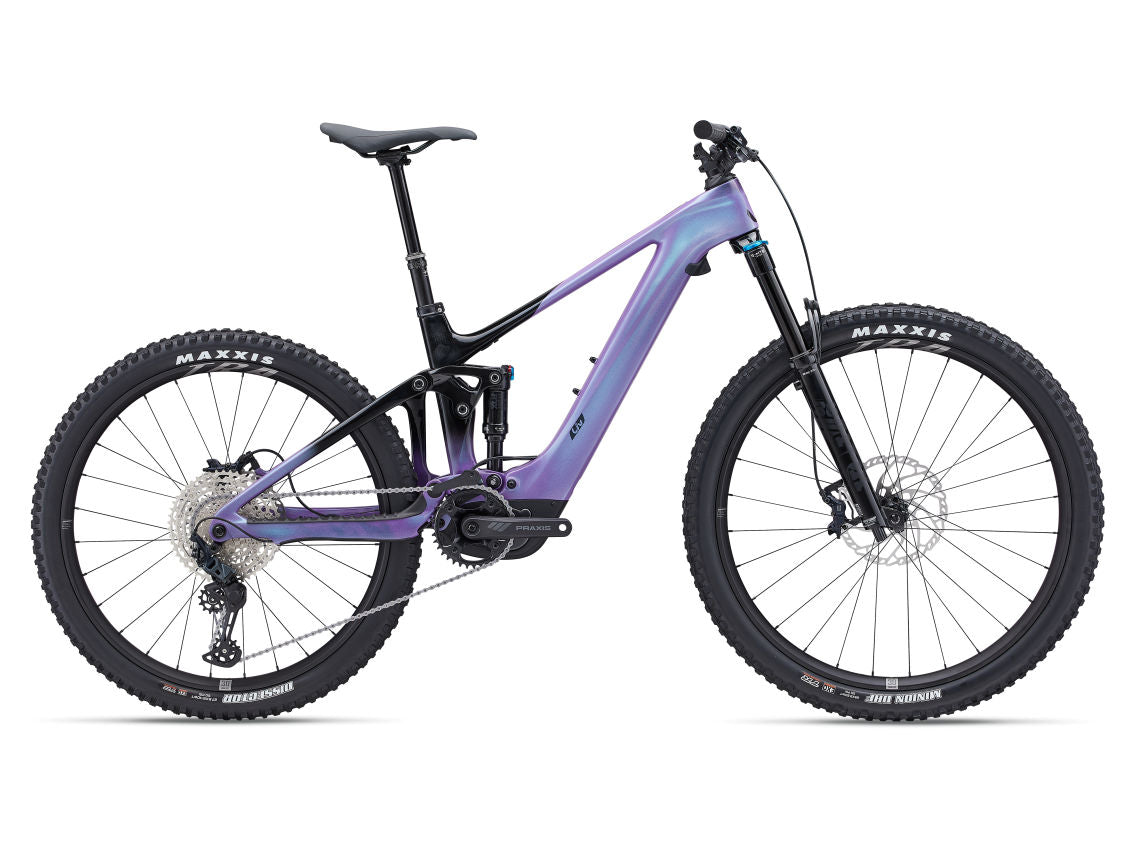

Liv Intrigue X Advanced E+ Elite 2
KEY PERFORMANCE FACTORS
Lightweight and Nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and Smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
Sleek Design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
SPECS
| Motor |
Giant SyncDrive Pro2 Mg, 85Nm, Magnasium Casing, powered by Yamaha, PedalPlus 6-Sensor technology
|
| Controller | Giant RideControl Ergo3, grip integrated remote |
| Display |
Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display
|
| Battery |
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
|
| Sizes | XS, S, M, L |
| Frame |
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
|
| Fork |
Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Kabolt-X 110
|
| Shock |
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned
|
| Handlebar | Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L) |
| Grips | Liv Tactal Pro-E Single Lock-On Grips |
| Stem | Giant Contact SL 35 |
| Seatpost |
Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm)
|
| Saddle | Liv Sylvia E+ |
| Pedals | N/A |
| Shifters | Shimano SLX |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano SLX, 12-speed, Shadow+ |
| Brakes | Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Shimano SLX, I-spec EV |
| Cassette | Shimano HG-M6100, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Crankset |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, XS/S:160, M/L:165)
|
| Bottom Bracket | n/a |
| Rims | E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R] 30mm inner width |
| Hubs |
E-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 Shimano Micro-Spline Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
|
| Tires |
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
|
| Extras | Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
| Weight | 20.49kg (45lbs 03oz) - Size (M) |
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
