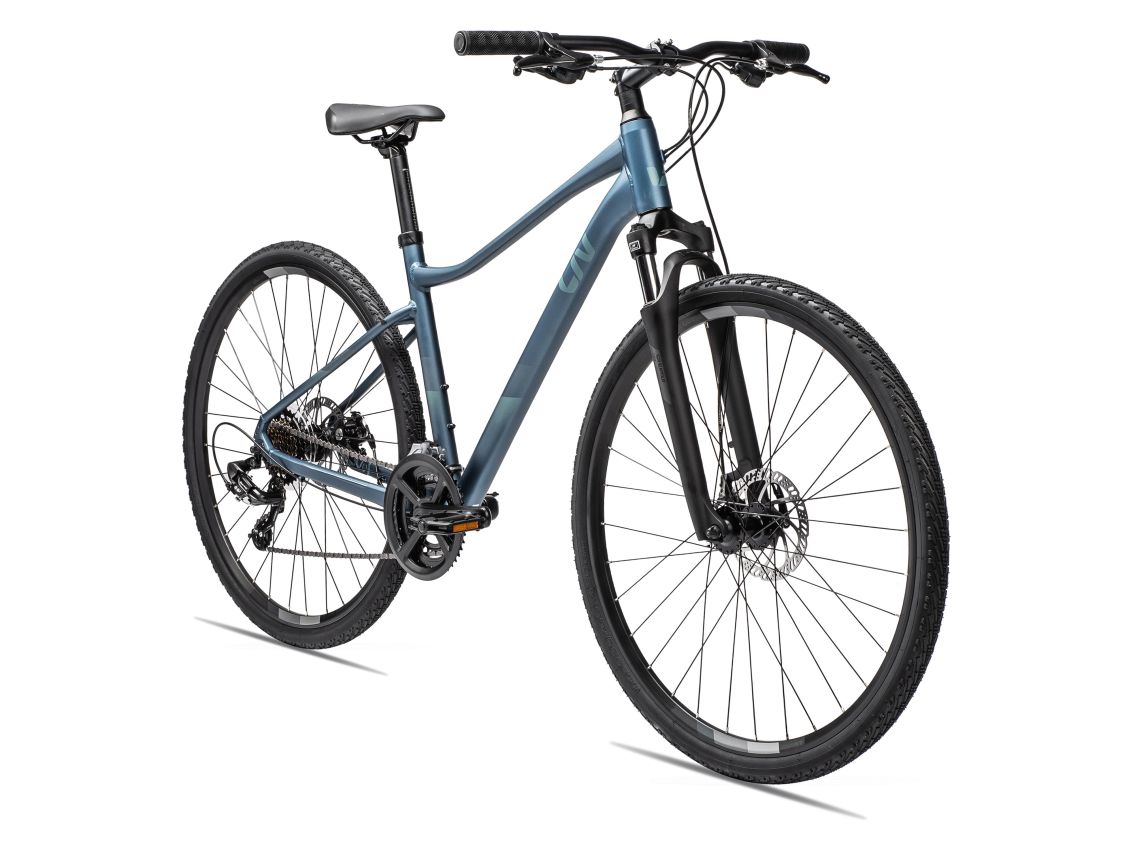

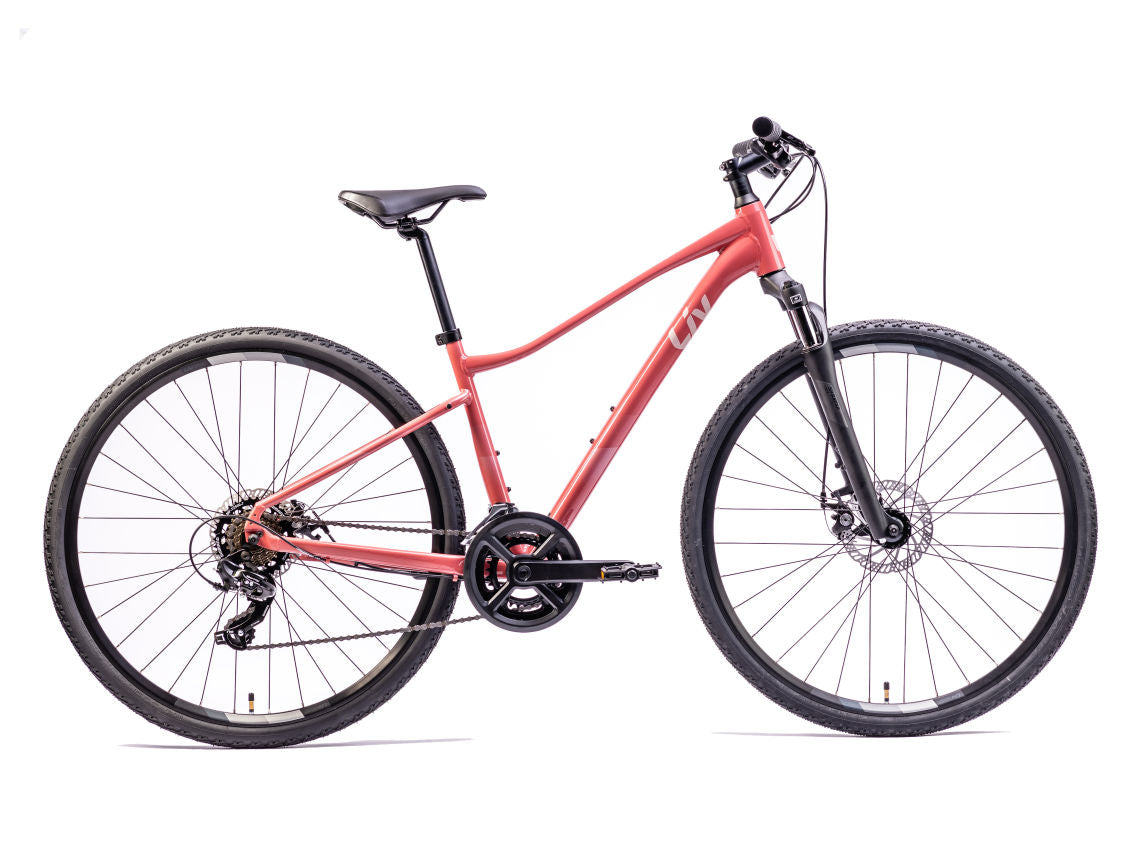

MAIN STREET, SIDE STREETS OR FOREST TRAILS. YOUR CHOICES ARE LIMITLESS WITH THE VERSATILE ROVE.
KEY PERFORMANCE FACTORS
Dirt-Road Ready
A suspension fork offers more comfort and control when you leave the pavement for gravel and trails.
Stability and Control
Responsive, reliable disc brakes help you keep your speed in check, even in wet weather.
Useful
Integrated mounts let you attach a rear cargo rack, and the low standover height makes getting on and off less a hassle when you’re running errands by bike.
SPECS
| Sizes | XS, S, M, L |
| Colors |
Terra Roza, Blue Ashes
|
| Frame |
ALUXX-Grade Aluminum, disc
|
| Fork |
SR Suntour NEX 700C, 63mm, disc
|
| Shock | N/A |
| Handlebar |
Giant Sport XC, 25.4mm XS:64cm, S:64cm, M:68cm, L:68cm
|
| Grips |
Liv Ergo, dual density
|
| Stem |
Giant Sport XS:75mm, S:75mm, M:75mm, L:90mm
|
| Seatpost |
Giant D-Fuse, alloy
|
| Saddle |
Liv Sport Comfort
|
| Pedals | platform |
| Shifters |
Shimano Altus SL-M315, 2x7
|
| Front Derailleur |
Shimano Tourney
|
| Rear Derailleur |
Shimano Tourney RD-TY300
|
| Brakes |
Tektro HD-TKB 172 [F]160mm, [R]160mm
|
| Brake Levers | Tektro CL-330R |
| Cassette |
MF-TZ500, 14x34
|
| Chain | KMC Z7 |
| Crankset |
forged alloy, 30/46 XS:165mm, S:170mm, M:170mm, L:175mm
|
| Bottom Bracket | sealed cartridge |
| Rims | Giant GX Disc |
| Hubs | alloy, 32h |
| Spokes | stainless, 14g |
| Tires |
Giant CrossCut, 700x42c, puncture protect
|
| Extras |
55mm max tire size
|
| Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
| XS | S | M | L | ||
| A | SEAT TUBE LENGTH (mm) | 380 | 420 | 460 | 500 |
| B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 550 | 570 | 590 | 610 |
| D | HEAD TUBE LENGTH (mm) | 110 | 120 | 135 | 150 |
| E | HEAD TUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° |
| F | FORK RAKE (mm) | 42 | 42 | 42 | 42 |
| G | TRAIL (mm) | 85.1 | 85.1 | 85.1 | 85.1 |
| H | WHEELBASE (mm) | 1059 | 1074 | 1089 | 1109 |
| I | CHAIN STAY LENGTH (mm) | 450 | 450 | 450 | 450 |
| J | BOTTOM BRACKET DROP (mm) | 62 | 62 | 62 | 62 |
| K | STACK (mm) | 601 | 611 | 625 | 639 |
| L | REACH (mm) | 378 | 389 | 399 | 415 |
| M | STAND OVER HEIGHT (mm) | 679 | 691 | 708 | 738 |
| N | HANDLEBAR WIDTH (mm) | 640 | 640 | 680 | 680 |
| O | STEM LENGTH (mm) | 70 | 80 | 80 | 90 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
