Full Suspension MTB
Santa Cruz Hightower 4 Carbon C | GX AXS
$6,999.00
SKU
UPC
Peak to valley and back again.
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
SPECS
|
Material |
Carbon C |
|
Travel |
150mm |
|
Wheel Size |
29 |
|
Rear Shock |
FOX Float X Performance Elite, 230x57.5 |
|
Fork |
Fox 36 Float Performance Elite, Grip X2, 160mm |
|

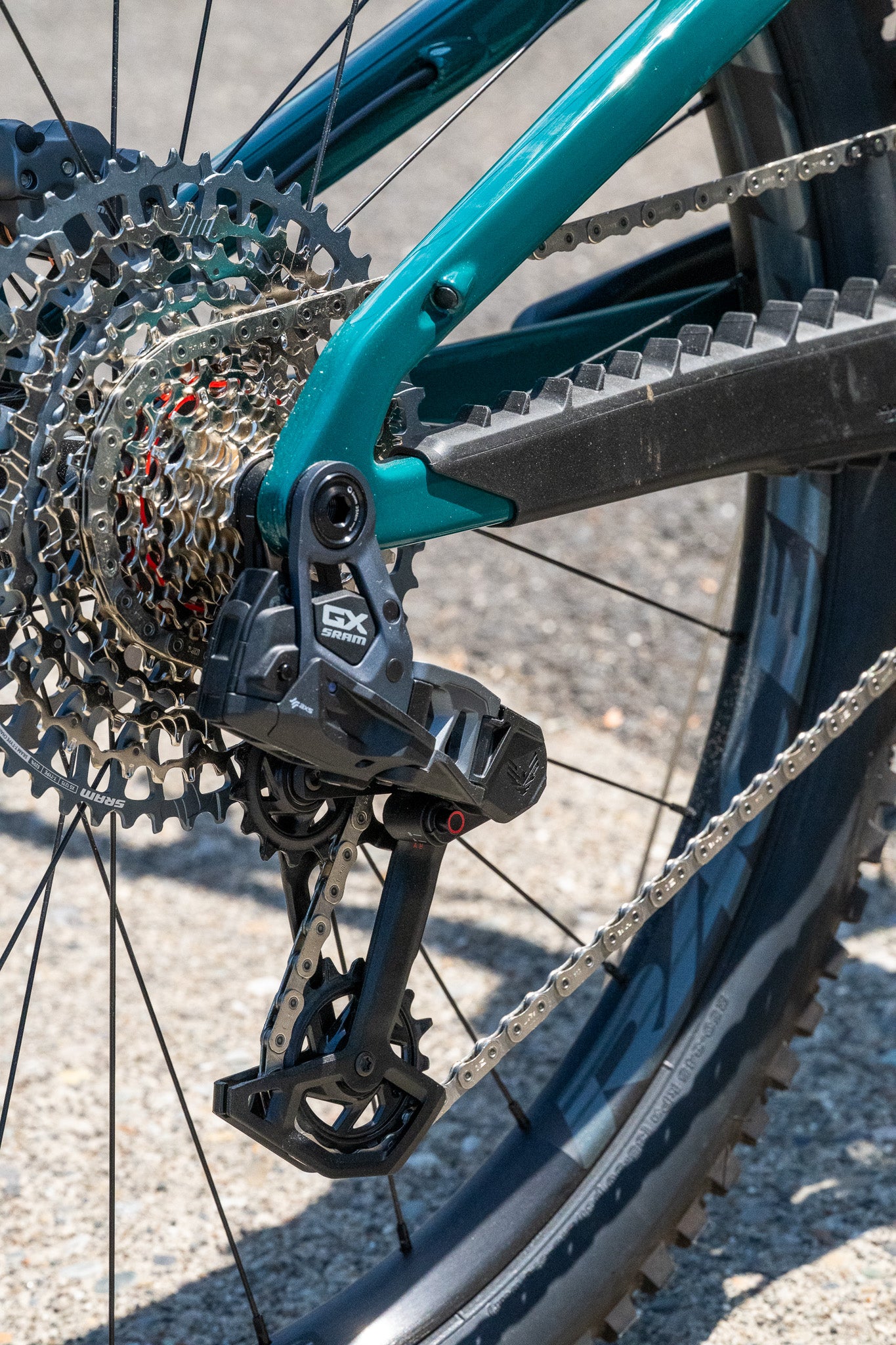

Rear Derailleur |
SRAM GX Eagle AXS T-Type, 12spd |
|
Right Shifter |
SRAM AXS Pod Bridge |
|
Cassette |
SRAM GX Eagle T-Type, 10-52t |
|
Chain |
SRAM GX Eagle T-Type, Flattop, 12spd |
|
Bottom Bracket |
SRAM DUB 73mm MTB Wide BB |
|
Headset |
Cane Creek 40 IS Integrated Headset |
|
Rear Tire |
Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ |
|
Front Tire |
Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO |
|
Valves |
Reserve Fillmore Valves |
|
Front Hub |
DT Swiss 370, 12x110, 6-Bolt, 28h |
|
Front Rim |
Reserve 30|SL AL 6069 -or- Raceface ARC 30 |
|
Rear Hub |
DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h |
|
Rear Rim |
Reserve 30|SL AL 6069 -or- Raceface ARC 30 |
|
Front Rotor |
SRAM HS2 180mm |
|
Rear Rotor |
SRAM HS2 180mm |
|

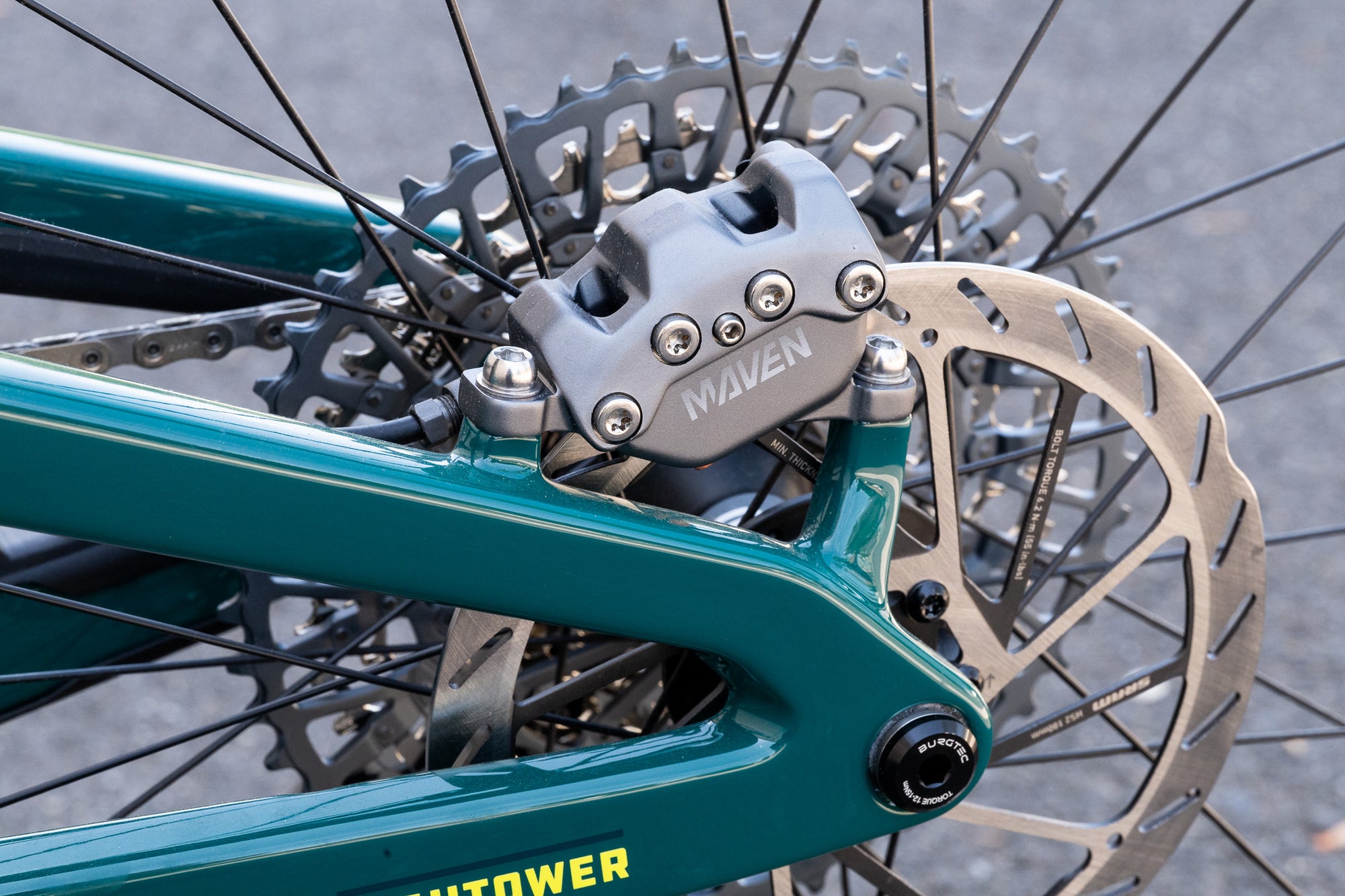

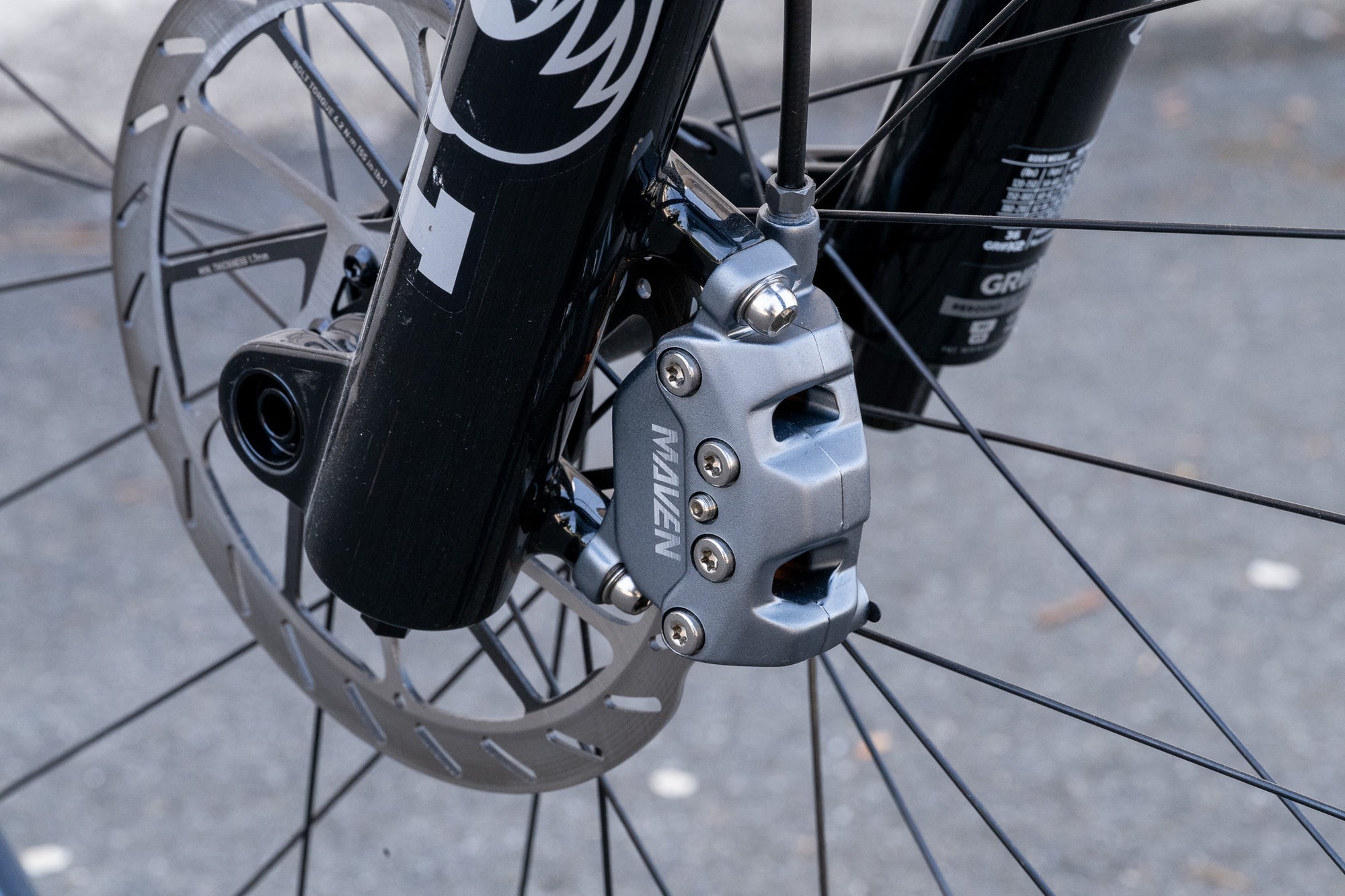

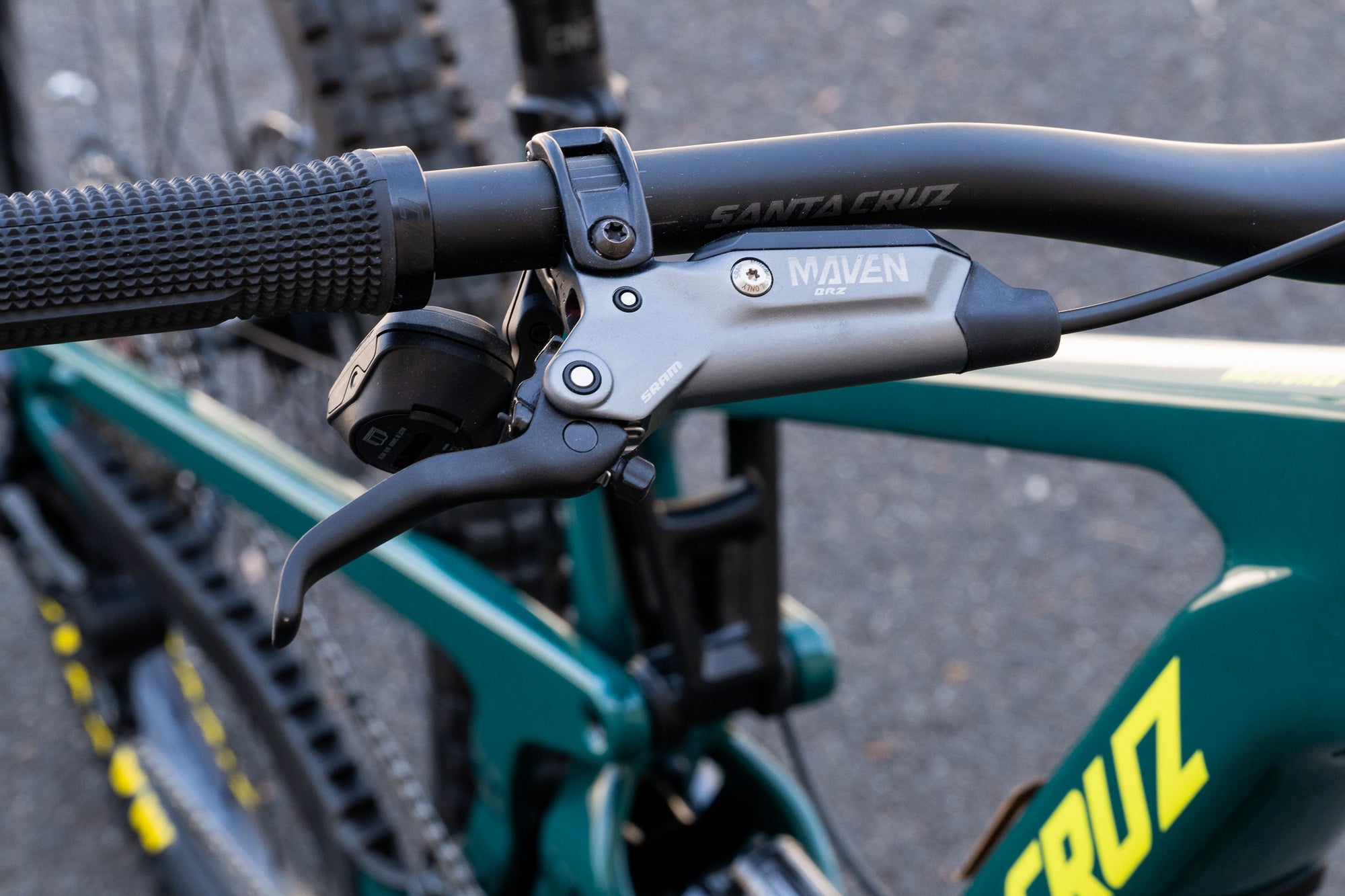

Brakes |
SRAM Maven Bronze Stealth |
|
Crankset |
SRAM GX Eagle DUB T-Type Crankset, 32t |
|
Handlebars |
Santa Cruz 35 Carbon Bar, 800mm |
|
Stem |
OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm |
|
Saddle |
SDG Bel-Air V3, Lux-Alloy Atmos |
|
Seatpost |
OneUp Dropper Post, 31.6 |
|
Dropper Length |
S - 120mm, M - 150mm, L - 180mm, XL - 210mm, XXL - 210mm |
|
Grips |
Santa Cruz Bicycles House Grips |
|
Battery Charger |
SRAM eTap Powerpack 1 Battery & Charger |
SIZING GUIDE AND GEOMETRY
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | hi/lo | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| Stack | hi/lo | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle | hi/lo | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Seat Tube Length | hi/lo | 380 | 405 | 430 | 460 | 500 |
| Front Center | hi/lo | 771 | 800 | 825 | 853 | 883 |
| BB Height | hi/lo | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop (front) | hi/lo | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop (rear) | hi/lo | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Wheelbase | hi/lo | 1176 | 1237 | 1264 | 1296 | 1328 |
| Rear Center | hi/lo | 434 | 436 | 439 | 442 | 445 |
| Head Tube Length | hi/lo | 110 | 120 | 130 | 150 | 160 |
| Top Tube Length | hi/lo | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Angle | hi/lo | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4/°78.1° |
| Standover Height | hi/lo | 721 | 723 | 725 | 727 | 731 |
