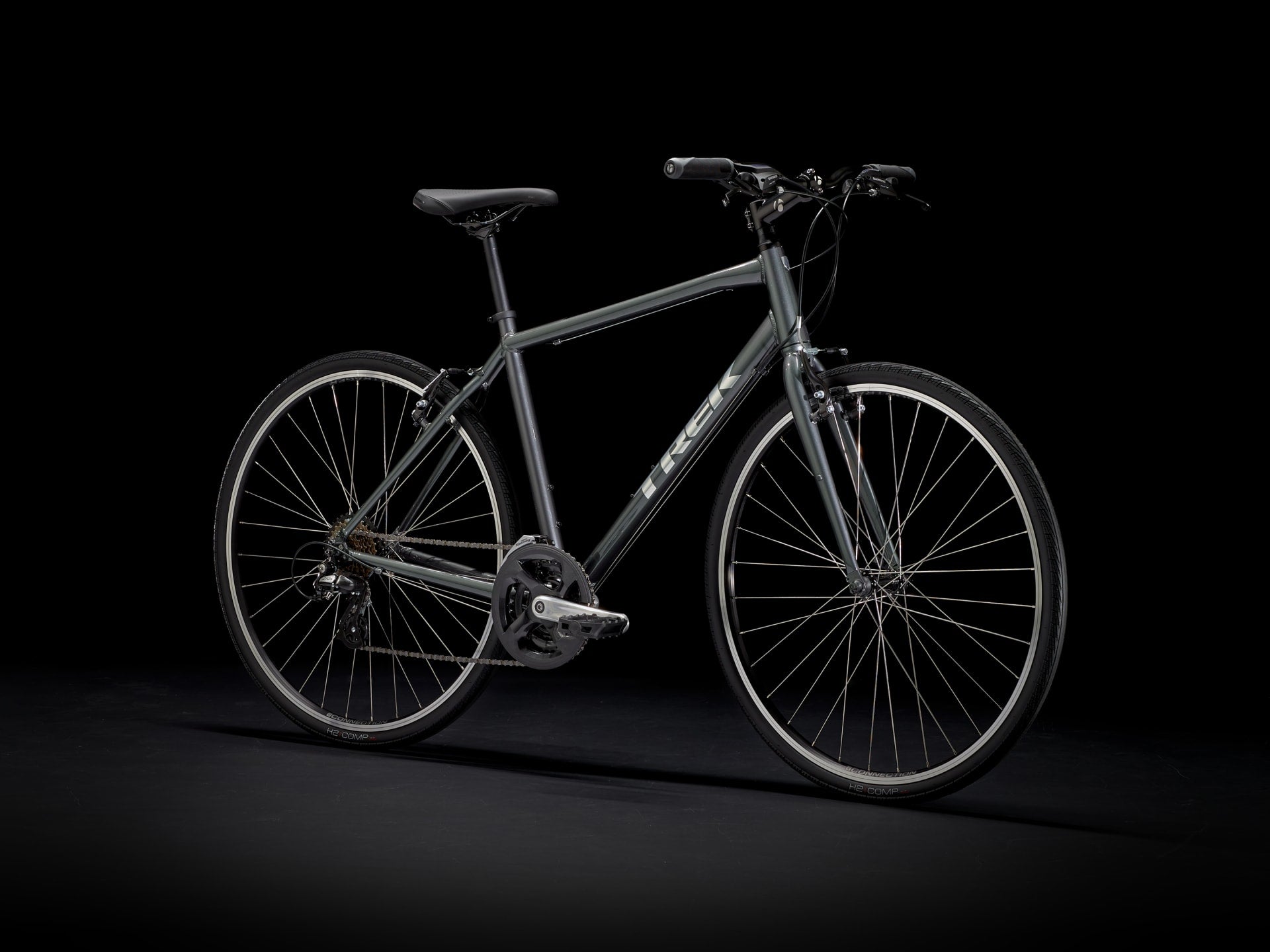

FX 1 IS A HYBRID BIKE WITH A LIGHTWEIGHT ALUMINUM FRAME AND QUALITY PARTS THAT PERFORM WHEREVER YOU LIKE TO RIDE. IT'S PERFECT FOR ANYONE LOOKING TO GET OUT MORE, RIDE AS A FAMILY, DO A BIT OF EXERCISE, OR COMMUTE TO WORK ON A VERSATILE BIKE BACKED BY A LIFETIME WARRANTY.
OVERVIEW
It's right for you if...
You want to get out and ride more, and you're looking for performance where it really counts: a lightweight frame, wide range of gearing, bigger tires, and tons of mounts for securing fenders, bags, and gear. You also want a great value and the confidence of Trek's lifetime warranty.
The tech you get
A lightweight aluminum frame, 21 speeds so there's always a right gear for your terrain, strong double-walled wheels with wide, stable tires, and mounts that make it easy to accessorize your ride with racks, fenders, lights, fitness trackers, a kickstand, and more!
The final word
FX 1 is a versatile hybrid bike at a great value. It's built with a lightweight aluminum frame, performance parts that keep the price in check, and strong wheels built on double-walled rims. This hybrid is perfectly suited to a variety of uses, from casual riding to exercise and commutes.
SPECS
|
*Please note - spec applies to all sizes unless listed separately
|
|
| Frameset | |
| Frame |

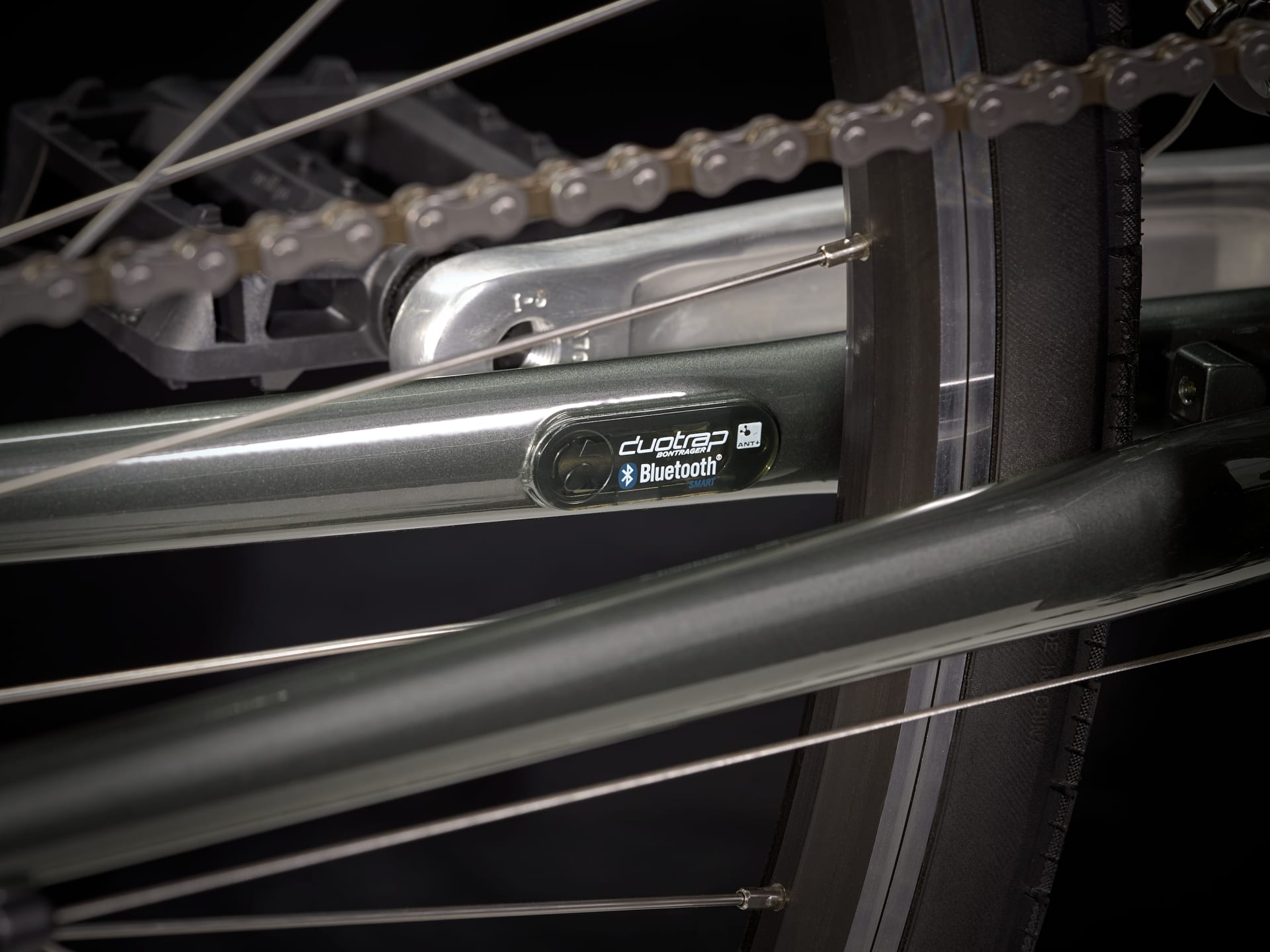

Alpha Gold Aluminum, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR
|
| Fork | |
| Wheels | |
| Hub front | Formula FM21 alloy, 100x5mm QR |
| Skewer front | Formula QR22 |
| Hub rear | Formula FM31 alloy, 135x5mm QR |
| Skewer rear | 152x5mm QR |
| Rim |
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
|
| Tire | |
| Max tire size |
700x38mm without fenders, 700x35mm with fenders
|

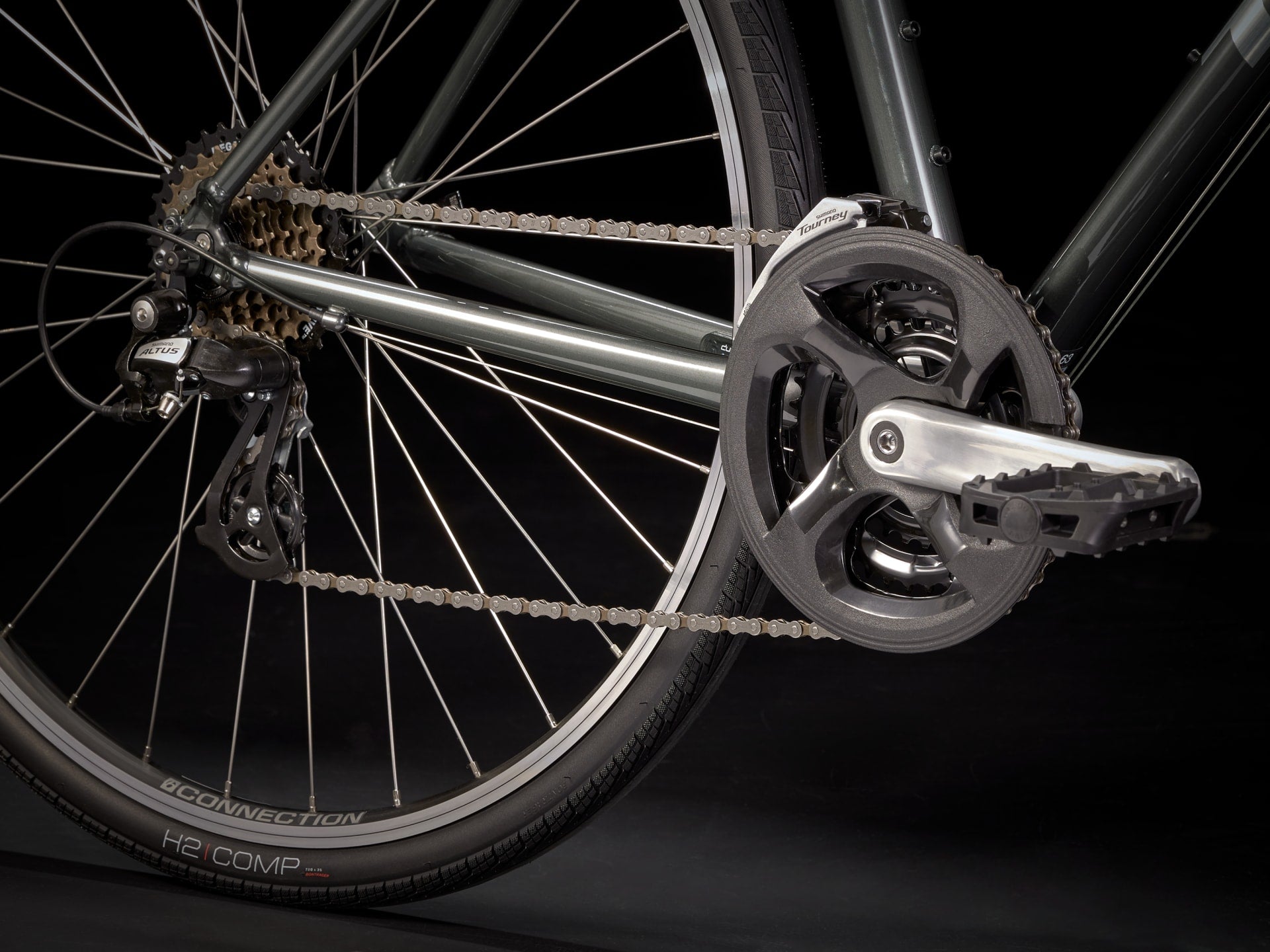

| Drivetrain | |
| Shifter | Shimano EF500, 7 speed |
| Front derailleur |
Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
|
| Rear derailleur | Shimano Altus M310 |
| Crank |
Forged alloy, 48/38/28, chainguard, 170mm length
|
| Bottom bracket | Sealed cartridge, 68mm |
| Cassette | 14-34, 7 speed freewheel |
| Chain | KMC Z7 |
| Pedal | Wellgo nylon platform |
| Components | |
| Saddle | Bontrager Sport |
| Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
|
|
*Handlebar
|
Size: S, M, L
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width |
|
Size: XL
Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width |
|
| Grips | Bontrager Satellite |
|
*Stem
|
|
| Headset | 1 1/8'' steel threadless |

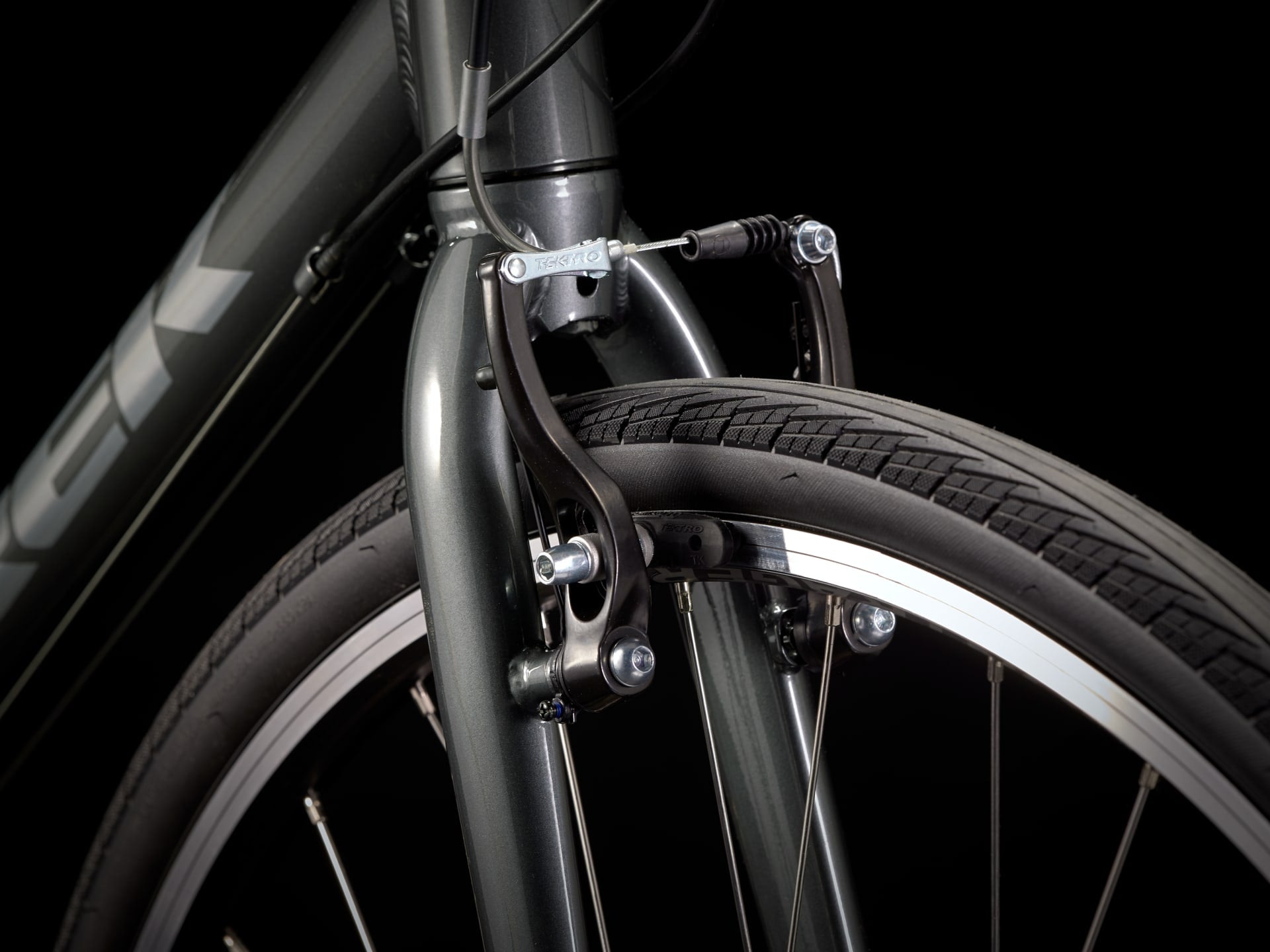

| Brake | Tektro alloy linear-pull |
| Weight | |
| Weight | M - 12.57 kg / 27.72 lbs |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|
SIZING GUIDE
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
| 2XL |
197 - 203 cm 6'6" - 6'8" |
92 - 95 cm 36" - 37" |
All measurements provided in cm unless otherwise noted.
GEOMETRY
| Frame size letter | S | M | L | XL |
| Wheel size | 700c | 700c | 700c | 700c |
| A — Seat tube | 45.0 | 44.5 | 50.8 | 57.2 |
| B — Seat tube angle | 74.5° | 74.0° | 73.5° | 73.0° |
| C — Head tube length | 14.0 | 13 | 16 | 19 |
| D — Head angle | 70.5° | 71.5° | 71.5° | 72.5° |
| E — Effective top tube | 54.3 | 55.7 | 57.1 | 58.7 |
| F — Bottom bracket height | 28.5 | 29.6 | 29.6 | 29.6 |
| G — Bottom bracket drop | 6.5 | 6.5 | 6.5 | 6.5 |
| H — Chainstay length | 44.7 | 45 | 45 | 45 |
| I — Offset | 5 | 5 | 5 | 5 |
| J — Trail | 7.1 | 6.8 | 6.8 | 6.2 |
| K — Wheelbase | 105.9 | 106 | 107 | 107 |
| L — Standover | 71.5 | 73.8 | 79.9 | 84.8 |
| M — Frame reach | 38.5 | 39.7 | 39.8 | 39.8 |
| N — Frame stack | 56.8 | 55.7 | 58.6 | 61.8 |
