Madone SL 6 offers legendary speed, cutting-edge tech, and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races. IsoFlow technology smooths out bumps in the pavement while lowering weight and offering an aerodynamic advantage over your competition, and a wealth of super speedy features like our newest Kammtail aero shapes, an economical Shimano 105 Di2 electronic drivetrain, carbon wheels, and invisible hose routing make for a race machine that feels just as fast as it looks.
OVERVIEW
It's right for you if...
You want speed, quality, and performance in a more economical package, alongside a carbon frame that turns heads, a high-quality electronic drivetrain, grippy and long-lasting tires, revolutionary IsoFlow aerodynamics, and an all out aero rig that makes every ride feel like your fastest ride ever.
The tech you get
A 500 Series OCLV Carbon frame with aero Kammtail tube shaping and revolutionary IsoFlow seat tube, invisible routing, a super fast Shimano 105 Di2 12-speed electronic drivetrain, Bontrager RSL Aero OCLV Carbon handlebars, and Bontrager Aeolus Elite 50 tubeless-ready carbon wheels.
The final word
Madone SL 6 is a premium race-ready speed demon that's itching to take you on your fastest road rides and races. It belongs at the front of the group setting the pace and conquering KOMs.
SPECS
|
*Please note - spec applies to all sizes unless listed separately
|
|
| Frameset | |
| Frame |
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
|
| Fork |
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
|
| Weight | |
| Weight |
56 - 8.40 kg / 18.52 lbs
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
|

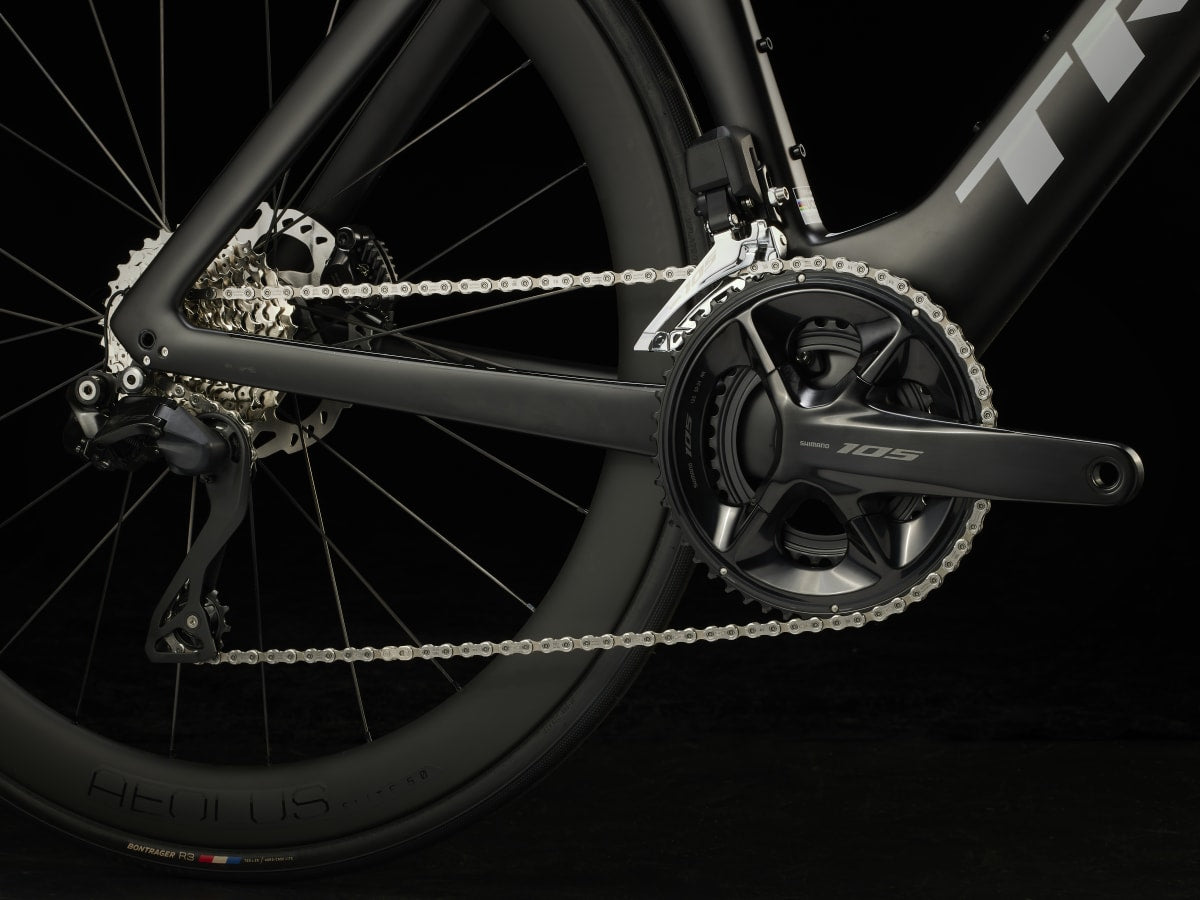

| Drivetrain | |
| Shifter |
Shimano 105 R7170 Di2, 12 speed
|
| Front derailleur |
Shimano 105 R7150 Di2, braze-on, down swing
|
| Rear derailleur |
Shimano R7150 Di2, 36T max cog
|
|
*Crank
|
Size: 47
Shimano 105 R7100, 50/34, 165mm length |
|
Size: 50, 52
Shimano 105 R7100, 50/34, 170mm length |
|
|
Size: 54, 56
Shimano 105 R7100, 50/34, 172.5mm length |
|
|
Size: 58, 60, 62
Shimano 105 R7100, 50/34, 175mm length |
|
| Bottom bracket |
Praxis, T47 threaded, internal bearing
|
| Cassette |
Shimano 105 7101, 11-34, 12 speed
|
| Chain |
Shimano SLX M7100, 12 speed
|
| Max chainring size |
1x: 50T, 2x: 54/40
|
| Wheels | |
| Wheel front |
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
|
| Wheel rear |
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Shimano 11 speed freehub, 142x12mm thru axle
|
| Skewer front |
Bontrager Switch thru axle, removable lever
|
| Skewer rear |
Bontrager Switch thru axle, removable lever
|
| Tire |
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm
|
| Max tire size |
32mm (as measured, see manual for details)
|
| Components | |
|

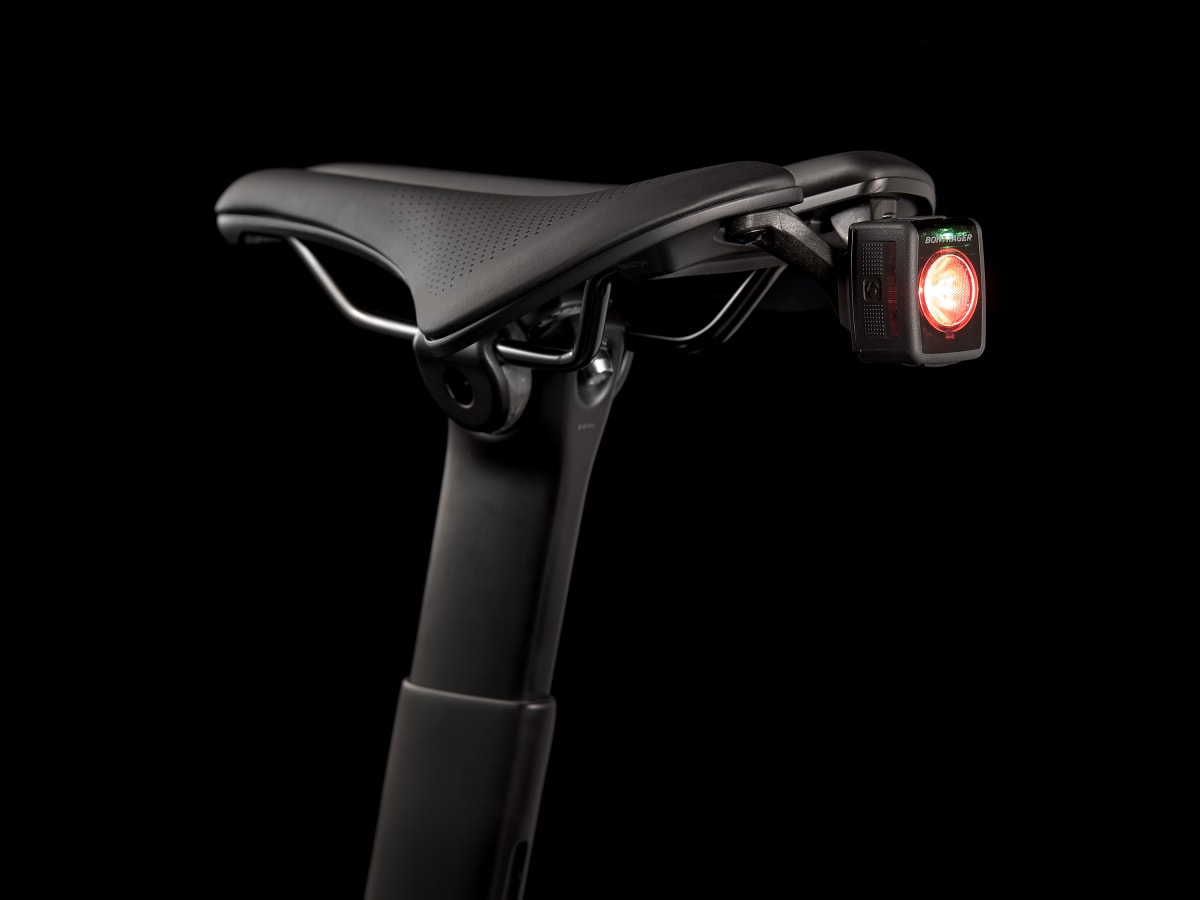

*Saddle
|
Size: 47, 50, 52
Bontrager Aeolus Comp, steel rails, 155mm width |
|
Size: 54, 56, 58, 60, 62
Bontrager Aeolus Comp, steel rails, 145mm width |
|
|
*Seatpost
|
Size: 47, 50, 52, 54
Madone aero carbon seatpost, 0mm offset, short length |
|
Size: 56, 58, 60, 62
Madone aero carbon seatpost, 0mm offset, long length |
|
|

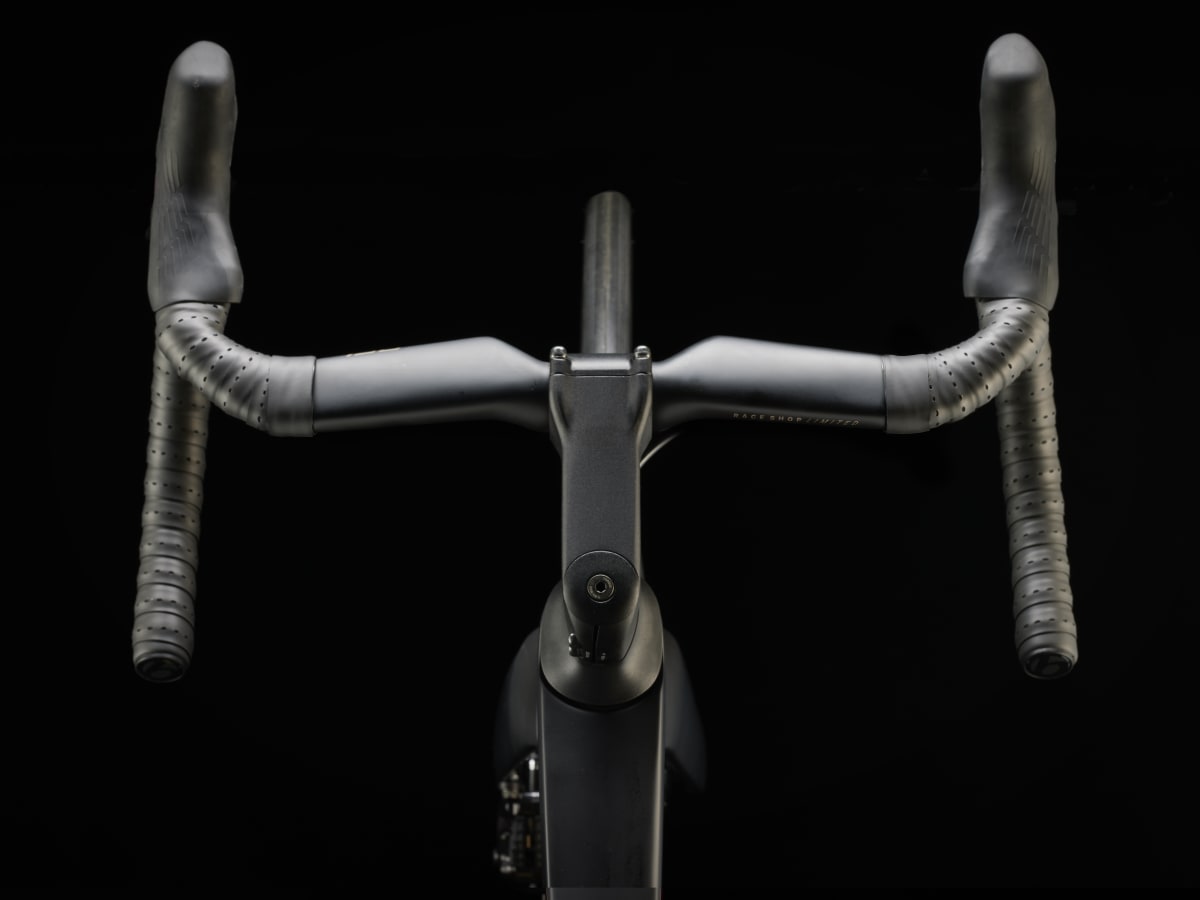

*Handlebar
|
Size: 47
Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm drop width |
|
Size: 50, 52
Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm drop width |
|
|
Size: 54, 56
Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 42cm width |
|
|
Size: 58, 60, 62
Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm drop width |
|
| Handlebar tape |
Bontrager Supertack Perf tape
|
|

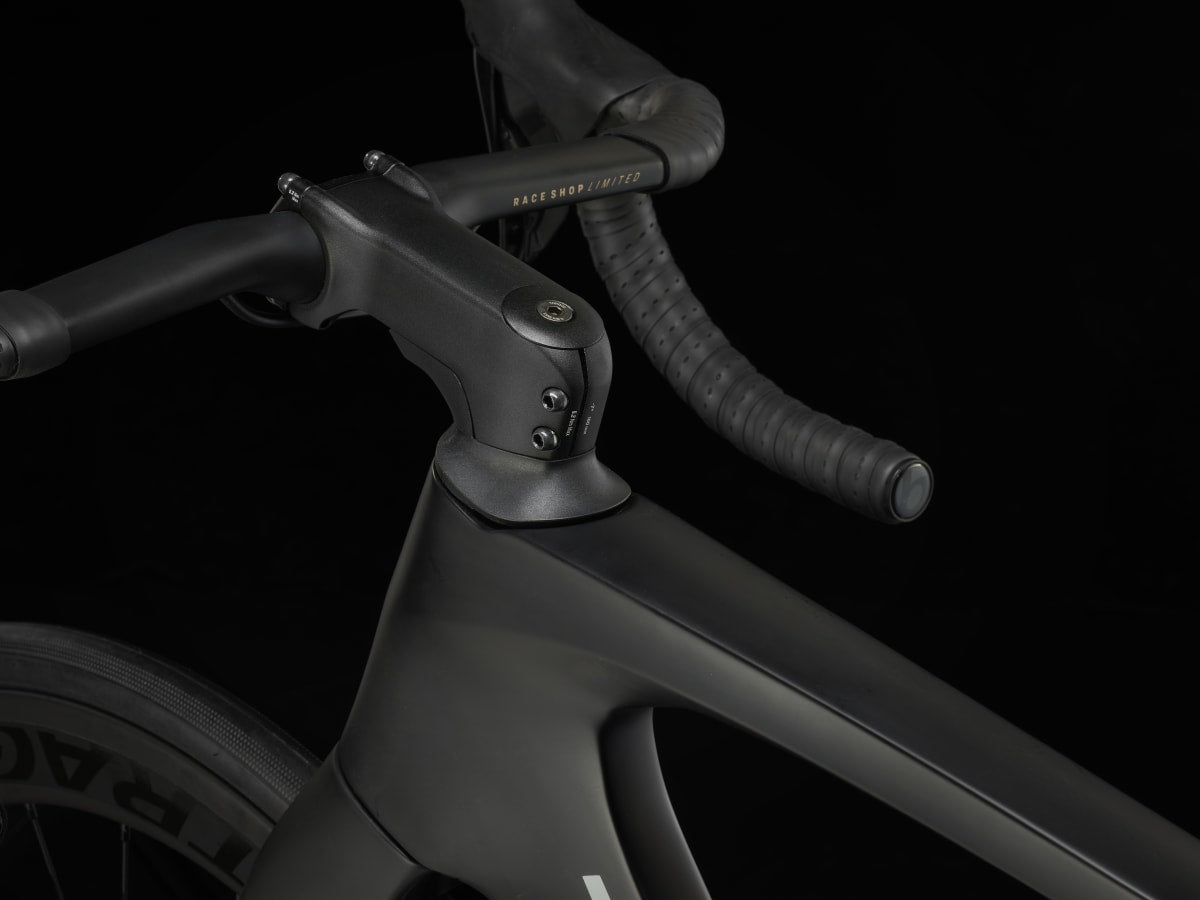

*Stem
|
Size: 47
Trek RCS Pro, -7 degree, 70mm length |
|
Size: 50
Trek RCS Pro, -7 degree, 80mm length |
|
|
Size: 52, 54
Trek RCS Pro, -7 degree, 90mm length |
|
|
Size: 56, 58
Trek RCS Pro, -7 degree, 100mm length |
|
|
Size: 60, 62
Trek RCS Pro, -7 degree, 110mm length |
|

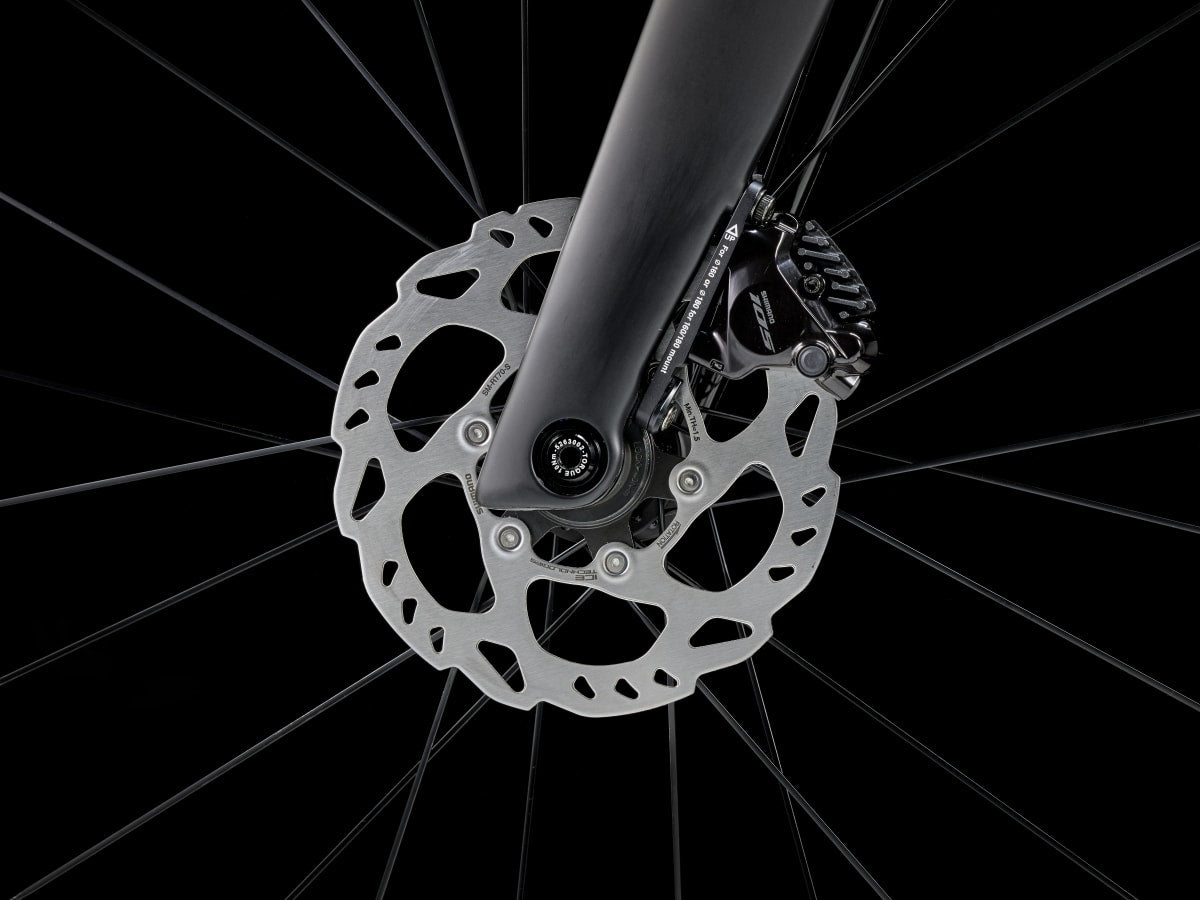

| Brake |
Shimano 105 hydraulic disc, flat mount
|
| Brake rotor |
Shimano RT70, centerlock, 160mm
|
| Rotor size |
Max brake rotor sizes: 160mm front & rear
|
|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
|
|
|
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
|
SIZING GUIDE AND GEOMETRY
| Size | Rider Height | Inseam |
|---|---|---|
| 47 |
152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
| 50 |
158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 60 |
185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
| 62 |
190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
All measurements provided in cm unless otherwise noted.
| Frame size number | 47 cm | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 42.4 | 45.3 | 48.3 | 49.6 | 52.5 | 55.3 | 57.3 | 59.3 |
| B — Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length | 10 | 11.1 | 12.1 | 13.1 | 15.1 | 17.1 | 19.1 | 21.1 |
| D — Head angle | 72.1° | 72.1° | 72.8° | 73.0° | 73.5° | 73.8° | 73.9° | 73.9° |
| E — Effective top tube | 51.2 | 52.1 | 53.4 | 54.3 | 55.9 | 57.4 | 58.6 | 59.8 |
| G — Bottom bracket drop | 7.2 | 7.2 | 7.2 | 7 | 7 | 6.8 | 6.8 | 6.8 |
| H — Chainstay length | 41 | 41 | 41 | 41 | 41 | 41.1 | 41.1 | 41.2 |
| I — Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4 | 4 | 4 | 4 |
| J — Trail | 6.8 | 6.2 | 5.8 | 5.6 | 5.8 | 5.7 | 5.6 | 5.6 |
| K — Wheelbase | 97.2 | 97.4 | 97.7 | 98.1 | 98.3 | 99.2 | 100.1 | 101 |
| L — Standover | 69.2 | 71.1 | 73.2 | 74.4 | 76.8 | 79.3 | 81.1 | 82.9 |
| M — Frame reach | 37.3 | 37.8 | 38.3 | 38.6 | 39.1 | 39.6 | 39.9 | 40.3 |
| N — Frame stack | 50.7 | 52.1 | 53.3 | 54.1 | 56.3 | 58.1 | 60.1 | 62 |
| Stem length | 80 | 90 | 90 | 90 | 100 | 100 | 110 | 110 |
| Saddle rail height min (w/short mast) | 55 | 58 | 61 | 63.5 | 66.5 | 68.5 | 70.5 | 73 |
| Saddle rail height max (w/short mast) | 62 | 65 | 68 | 70.5 | 73 | 75.5 | 77.5 | 80.5 |
| Saddle rail height min (w/tall mast) | 59.1 | 62.1 | 65.1 | 67.6 | 70.6 | 72.6 | 74.5 | 77.5 |
| Saddle rail height max (w/tall mast) | 65.5 | 68.5 | 71.5 | 74 | 76.5 | 79 | 81 | 84 |
