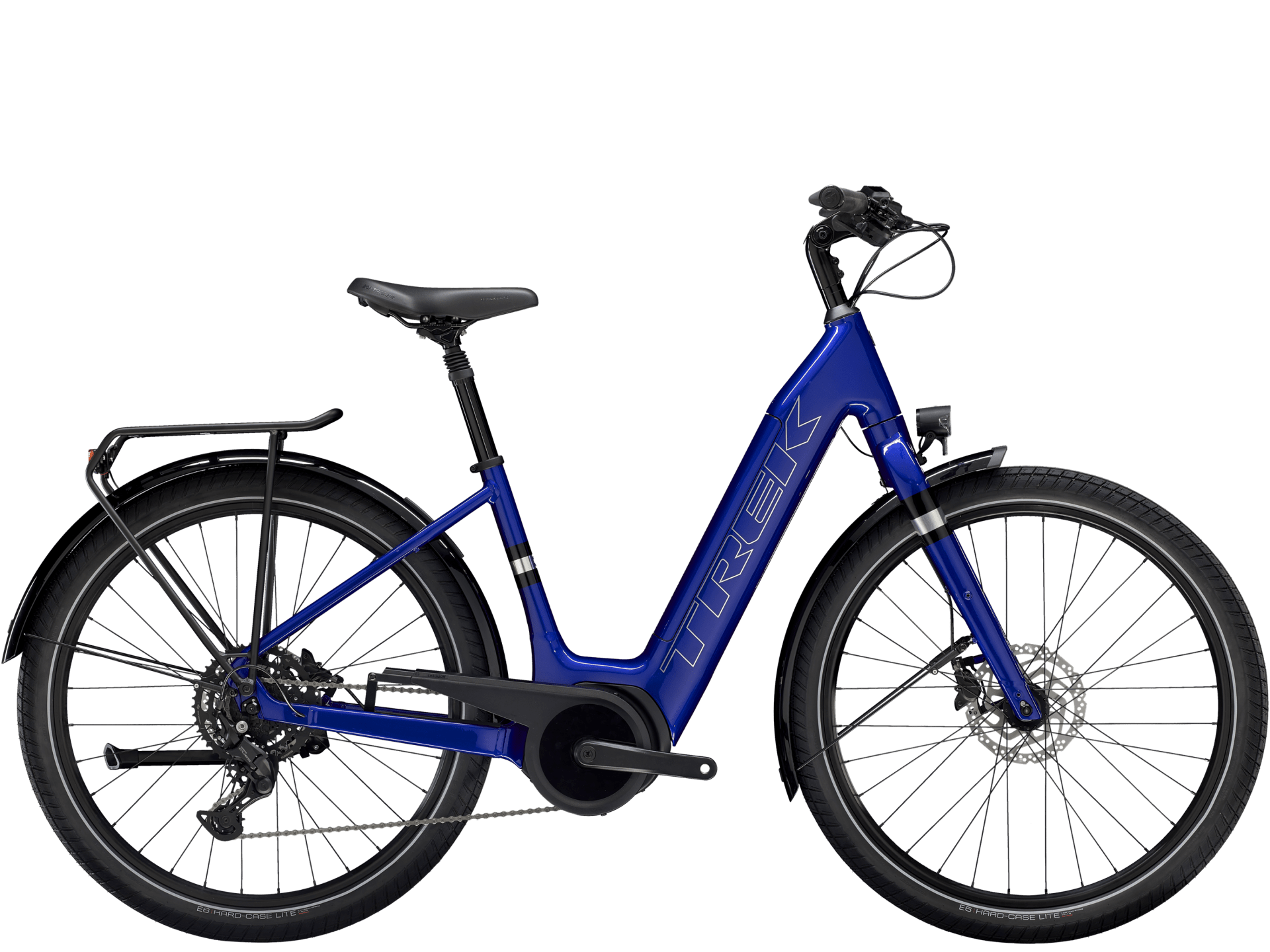

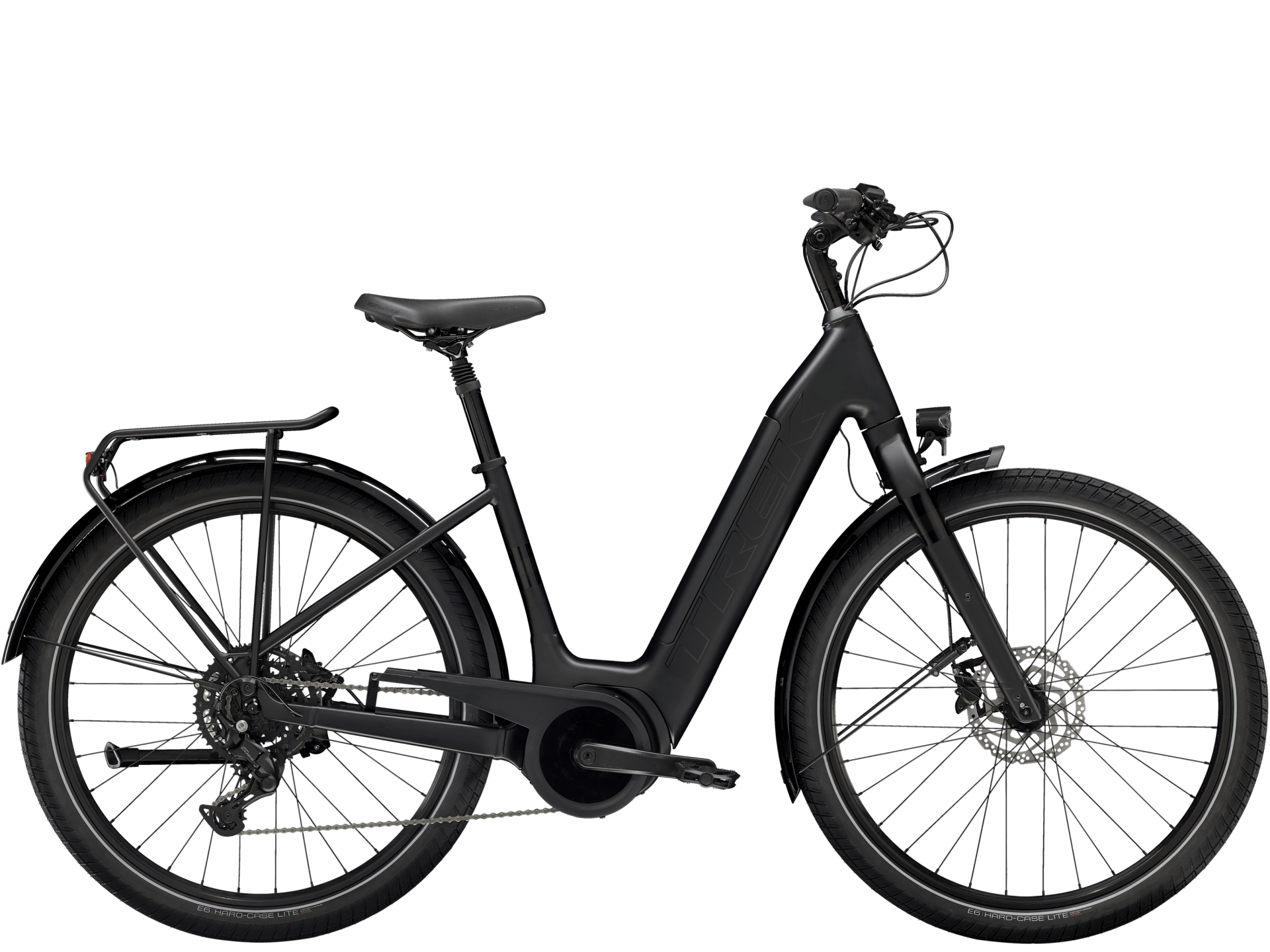

VERVE+ 3 LOWSTEP IS AN ELECTRIC HYBRID BIKE THAT GIVES YOUR DAILY CRUISES, COMMUTES, AND WORKOUTS A BOOST. IT'S EQUIPPED WITH A BOSCH PEDAL-ASSIST SMART SYSTEM THAT'S POWERFUL, RELIABLE, AND PAIRS WITH YOUR SMARTPHONE FOR MAPS, ACTIVITY TRACKING, AND MORE. IT'S POWERED BY A FULLY-ENCASED BATTERY THAT LOOKS SLEEK AND KEEPS BALANCE TOP PRIORITY. THIS E-BIKE COMES READY TO ROLL WITH PARTS THAT PUT YOUR COMFORT AND SAFETY FIRST, LIKE A ROAD-SMOOTHING SUSPENSION SEATPOST, WIDE, STABLE TIRES, AND FRONT AND REAR LIGHTS.
OVERVIEW
It's right for you if...
You want to do more by bike and have more fun on every ride, so comfort and user-friendly features are important. You know the extra boost of an e-bike will help you go farther, and you’re looking for one that's built to last, looks great, and is intuitive to use.
The tech you get
A lightweight aluminum frame with lowstep geometry, a Bosch Performance Line Cruise (250W, 75Nm) motor capable of sustaining speeds up to 20mph, a Bosch PowerPack 545Wh battery that's fully encased in the frame, and a Bosch Purion 200 controller. Plus, a 9-speed Shimano CUES drivetrain, hydraulic disc brakes for all-weather stopping power, a suspension seatpost, stable 27.5" wheels with wide, 2.4" puncture-resistant tires for extra traction, ergonomic grips, a kickstand, front and rear lights, and a MIK rear rack and fenders.
The final word
Verve+ 3 Lowstep gives you the power to adventure longer, commute quicker, and climb hills more easily. The extra boost makes riding your bike even more exciting and enjoyable, and quality components and comfort features make going farther and faster more fun than ever.
SPECS
|
*Please note - spec applies to all sizes unless listed separately
|
|
| Frameset | |
| Frame |
Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135X5mm QR
|
| Fork |
Verve+ alloy, threadless steel steerer, ThruSkew QR
|
| Wheels | |
| Hub front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR
|
| Skewer front |
132x5mm QR, ThruSkew
|
| Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
|
| Skewer rear | 155x5mm QR |
|
*Rim
|
Size: XS, S, M, L
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
Size: XS, S, M, L
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black |
|
| Spokes |
14g stainless steel, black
|
| Tire | |
| Max tire size |
27.5x2.40" with or without fenders
|
| E-system | |
| Battery |
Bosch PowerPack 545Wh, smart system
|
| Charger |
Bosch standard 2A, 110V, smart system
|
| Computer | |
| Motor |
Bosch Performance Line, 250W, 75Nm, 20mph
|
| Drivetrain | |
| Shifter |
Shimano U4000, 9 speed
|
| Rear derailleur |
Shimano CUES U4000
|
| Crank | |
| Chainring | |
| Cassette |
Shimano LINKGLIDE LG300, 11-46, 9 speed
|
| Chain |
Shimano LG500, 9/10/11 speed
|
| Pedal |
Bontrager City pedals
|
| Max chainring size | 1x: 46T |
| Components | |
| Saddle |
Bontrager Boulevard
|
| Seatpost | |
|
*Handlebar
|
|
| Grips | |
|
*Stem
|
|
| Brake |
Shimano MT200 hydraulic disc
|
| Brake rotor |
Shimano RT26, 6-bolt, 180mm
|
| Rotor size |
Max brake rotor sizes: 160mm front & rear
|
| Accessories | |
|
*Light
|
|
|
Size: XS, S, M, L
Herrmans H-Black MR4-E, 120 Lumen, 40 Lux, LED, headlight |
|
| Kickstand |
Adjustable length rear mount alloy kickstand
|
| Cargo rack | |
|
*Fender
|
|
|
Size: XS, S, M, L
SKS plastic, rear |
|
| Weight | |
| Weight |
M - 26.59 kg / 58.63 lbs
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|

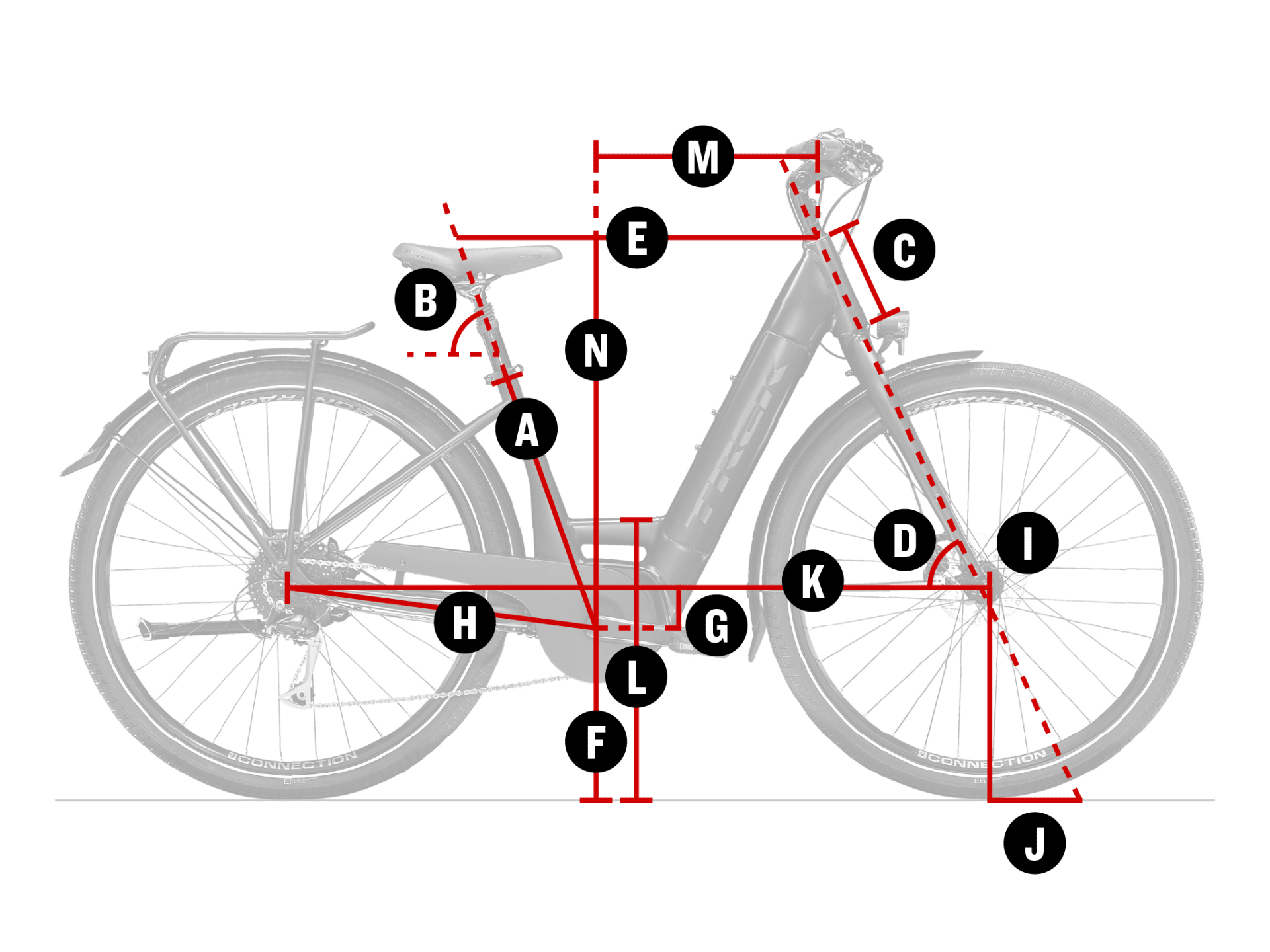

SIZING GUIDE AND GEOMETRY
| Frame size number | 40 cm | 45 cm | 50 cm | 55 cm |
| Frame size letter | XS | S | M | L |
| Wheel size | 700c | 700c | 700c | 700c |
| A — Seat tube | 39 | 44 | 50 | 55 |
| B — Seat tube angle | 71.0° | 71.0° | 71.0° | 71.0° |
| C — Head tube length | 16 | 16 | 18 | 20 |
| D — Head angle | 68.2° | 68.2° | 68.2° | 68.2° |
| E — Effective top tube | $58.20 | 58.7 | $59.80 | 61 |
| F — Bottom bracket height | 29.4 | 29.4 | 29.4 | 29.4 |
| G — Bottom bracket drop | 6.5 | 6.5 | 6.5 | 6.5 |
| H — Chainstay length | 48.7 | 48.7 | 48.7 | 48.7 |
| I — Offset | 4.5 | 4.5 | 4.5 | 4.5 |
| J — Trail | 9.5 | 9.5 | 9.5 | 9.5 |
| K — Wheelbase | 112.2 | 112.7 | 114 | 115.2 |
| L — Standover | 43.3 | 43.3 | 43.3 | 43.3 |
| M — Frame reach | 36.5 | 38.5 | 38.5 | 38.5 |
| N — Frame stack | 63 | 63 | 64.9 | 66.8 |
All measurements provided in cm unless otherwise noted.
